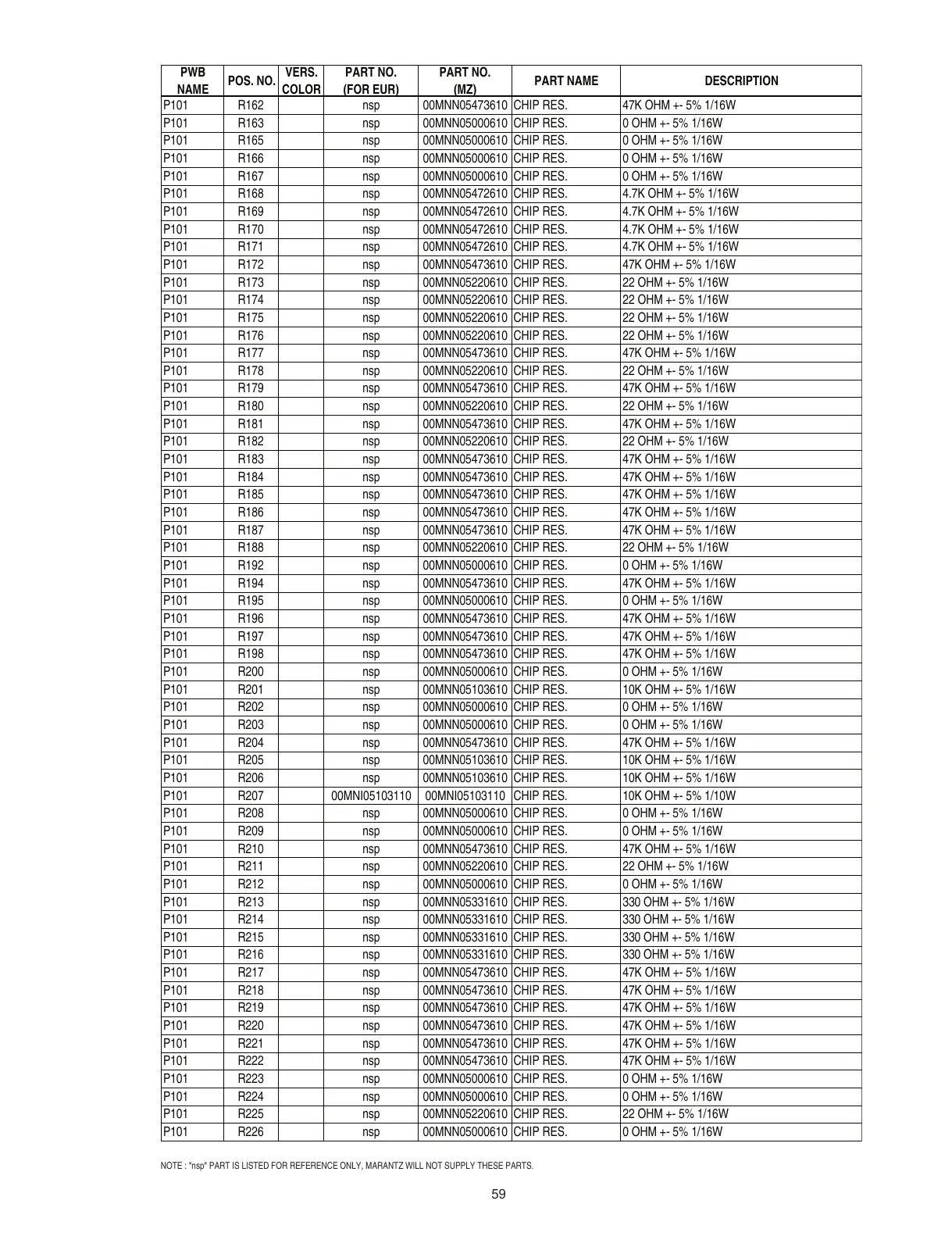

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
59
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P101 R162 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R163 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R165 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R166 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R167 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R168 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R169 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R170 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R171 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R172 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R173 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R174 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R175 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R176 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R177 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R178 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R179 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R180 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R181 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R182 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R183 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R184 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R185 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R186 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R187 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R188 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R192 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R194 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R195 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R196 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R197 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R198 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R200 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R201 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R202 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R203 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R204 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R205 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R206 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R207 00MNI05103110 00MNI05103110 CHIP RES. 10K OHM +- 5% 1/10W
P101 R208 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R209 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R210 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R211 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R212 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R213 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R214 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R215 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R216 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R217 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R218 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R219 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R220 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R221 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R222 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R223 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R224 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R225 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R226 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
