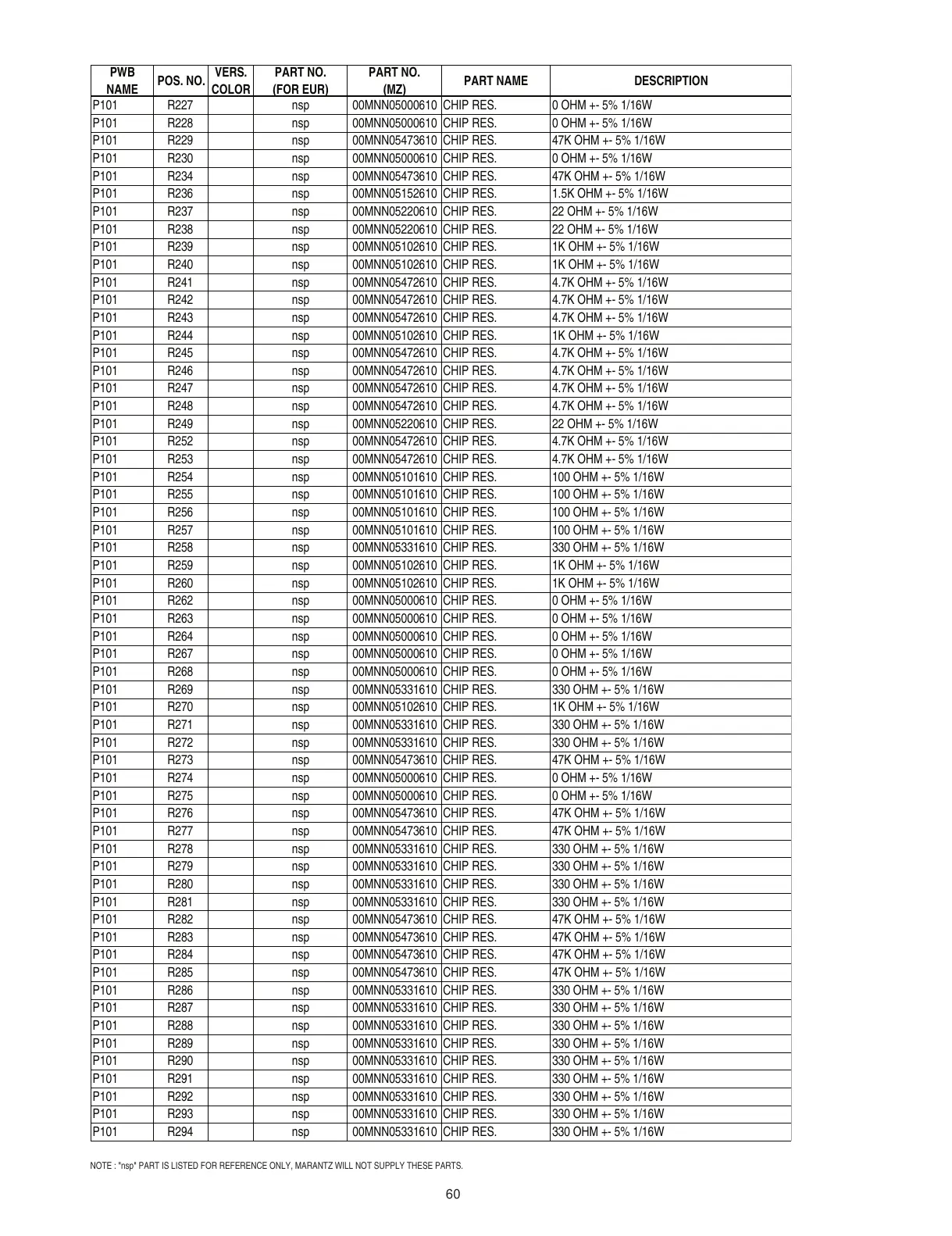

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
60
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P101 R227 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R228 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R229 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R230 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R234 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R236 nsp 00MNN05152610 CHIP RES. 1.5K OHM +- 5% 1/16W
P101 R237 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R238 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R239 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R240 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R241 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R242 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R243 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R244 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R245 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R246 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R247 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R248 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R249 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R252 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R253 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R254 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P101 R255 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P101 R256 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P101 R257 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P101 R258 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R259 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R260 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R262 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R263 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R264 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R267 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R268 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R269 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R270 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R271 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R272 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R273 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R274 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R275 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R276 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R277 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R278 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R279 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R280 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R281 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R282 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R283 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R284 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R285 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R286 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R287 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R288 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R289 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R290 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R291 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R292 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R293 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R294 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
