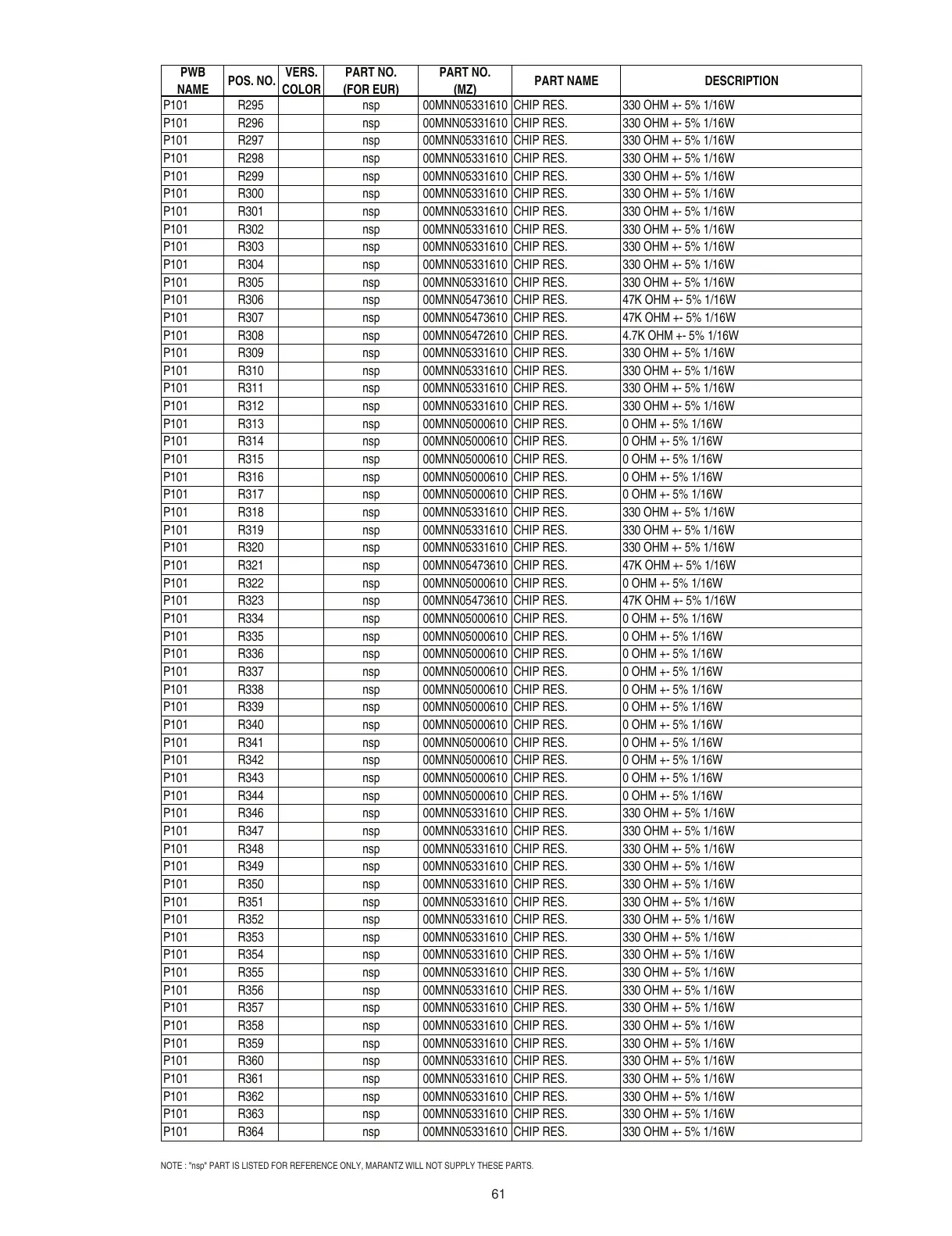

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
61
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P101 R295 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R296 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R297 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R298 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R299 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R300 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R301 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R302 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R303 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R304 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R305 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R306 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R307 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R308 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R309 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R310 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R311 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R312 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R313 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R314 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R315 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R316 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R317 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R318 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R319 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R320 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R321 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R322 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R323 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R334 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R335 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R336 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R337 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R338 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R339 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R340 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R341 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R342 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R343 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R344 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R346 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R347 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R348 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R349 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R350 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R351 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R352 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R353 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R354 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R355 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R356 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R357 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R358 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R359 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R360 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R361 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R362 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R363 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R364 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
