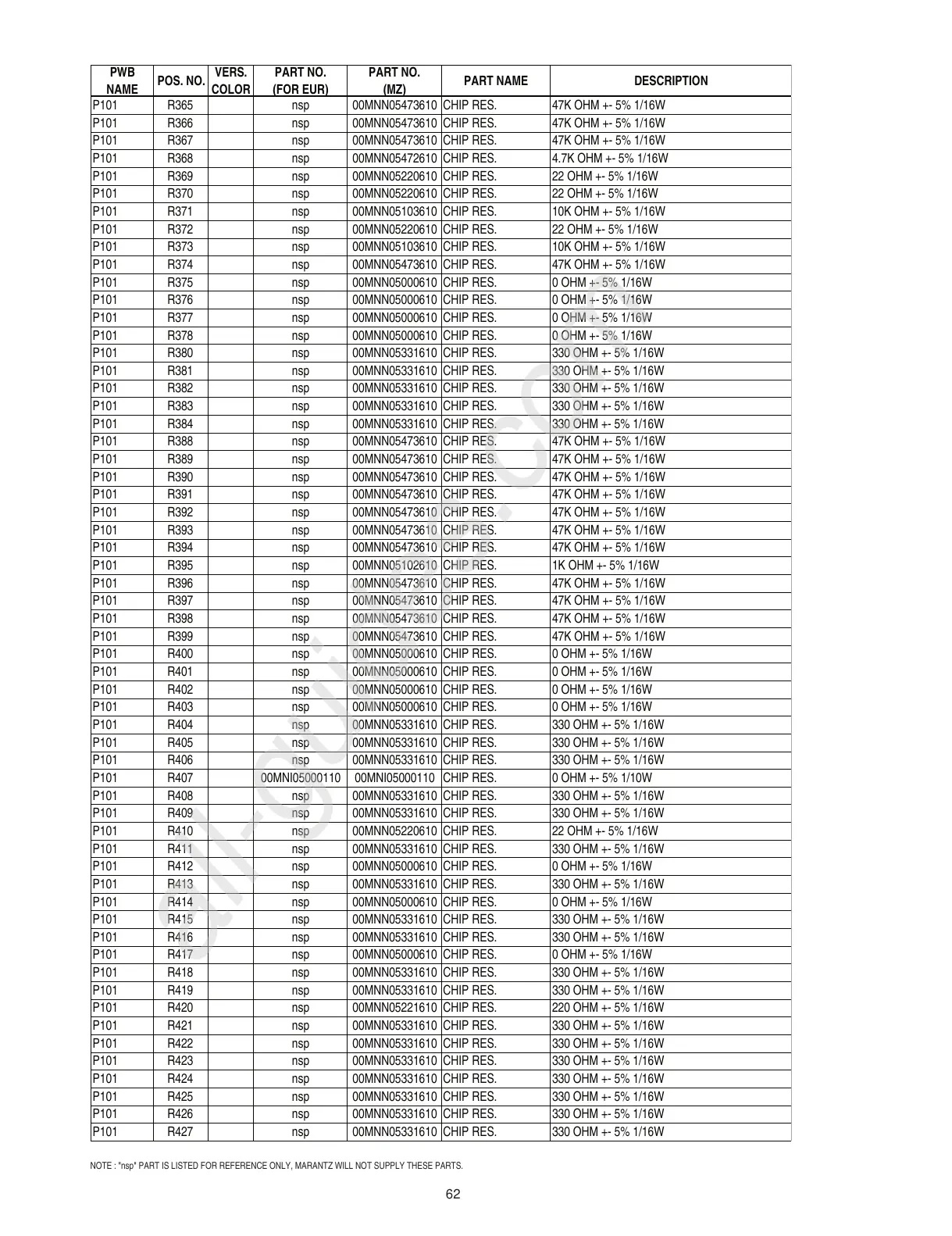

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
62
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P101 R365 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R366 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R367 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R368 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R369 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R370 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R371 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R372 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R373 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R374 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R375 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R376 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R377 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R378 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R380 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R381 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R382 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R383 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R384 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R388 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R389 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R390 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R391 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R392 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R393 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R394 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R395 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R396 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R397 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R398 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R399 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R400 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R401 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R402 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R403 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R404 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R405 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R406 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R407 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R408 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R409 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R410 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R411 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R412 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R413 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R414 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R415 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R416 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R417 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R418 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R419 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R420 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P101 R421 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R422 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R423 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R424 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R425 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R426 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R427 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
