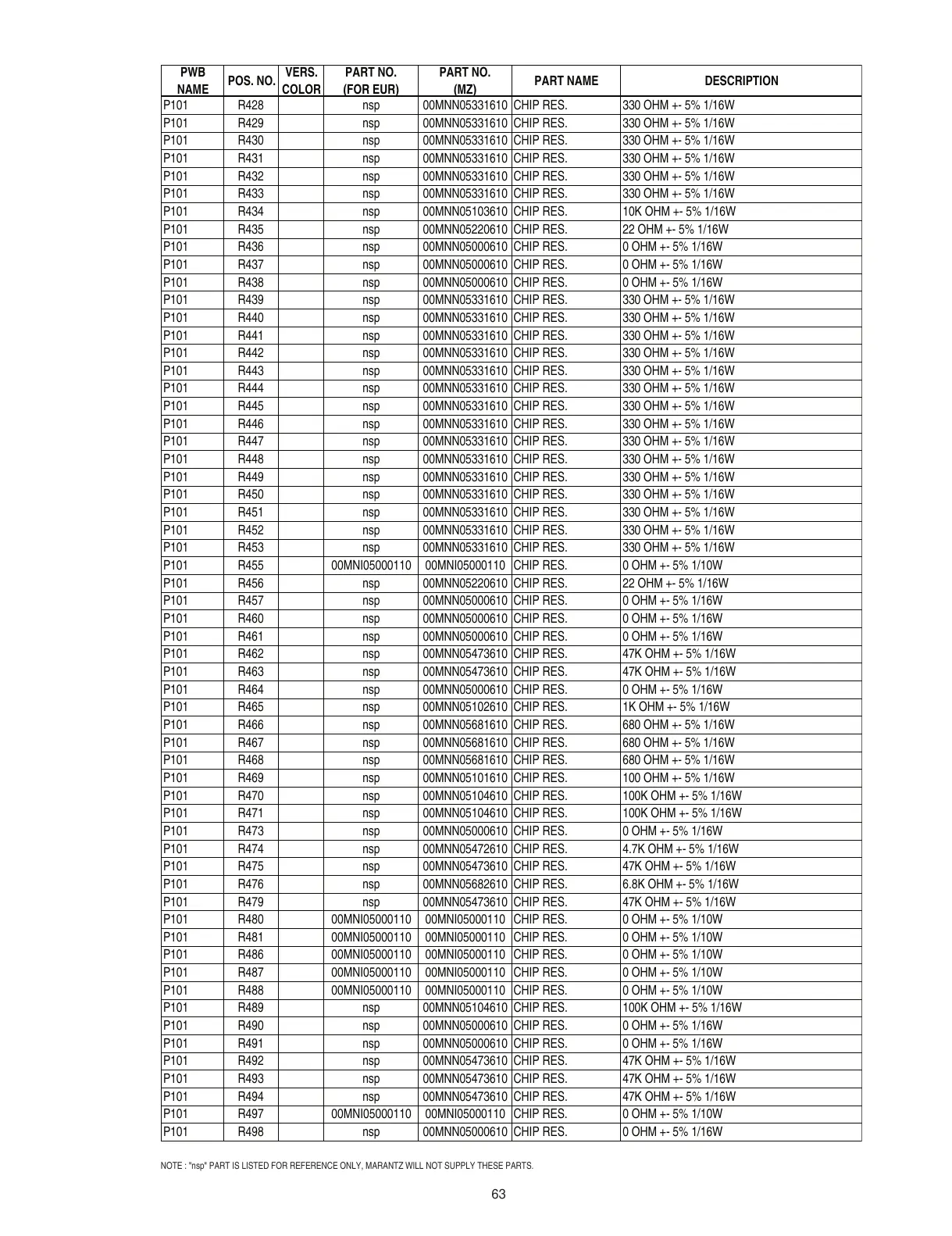

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
63
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P101 R428 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R429 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R430 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R431 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R432 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R433 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R434 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P101 R435 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R436 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R437 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R438 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R439 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R440 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R441 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R442 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R443 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R444 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R445 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R446 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R447 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R448 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R449 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R450 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R451 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R452 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R453 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P101 R455 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R456 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P101 R457 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R460 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R461 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R462 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R463 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R464 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R465 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P101 R466 nsp 00MNN05681610 CHIP RES. 680 OHM +- 5% 1/16W
P101 R467 nsp 00MNN05681610 CHIP RES. 680 OHM +- 5% 1/16W
P101 R468 nsp 00MNN05681610 CHIP RES. 680 OHM +- 5% 1/16W
P101 R469 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P101 R470 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R471 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R473 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R474 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P101 R475 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R476 nsp 00MNN05682610 CHIP RES. 6.8K OHM +- 5% 1/16W
P101 R479 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R480 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R481 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R486 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R487 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R488 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R489 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P101 R490 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R491 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P101 R492 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R493 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R494 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P101 R497 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P101 R498 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
