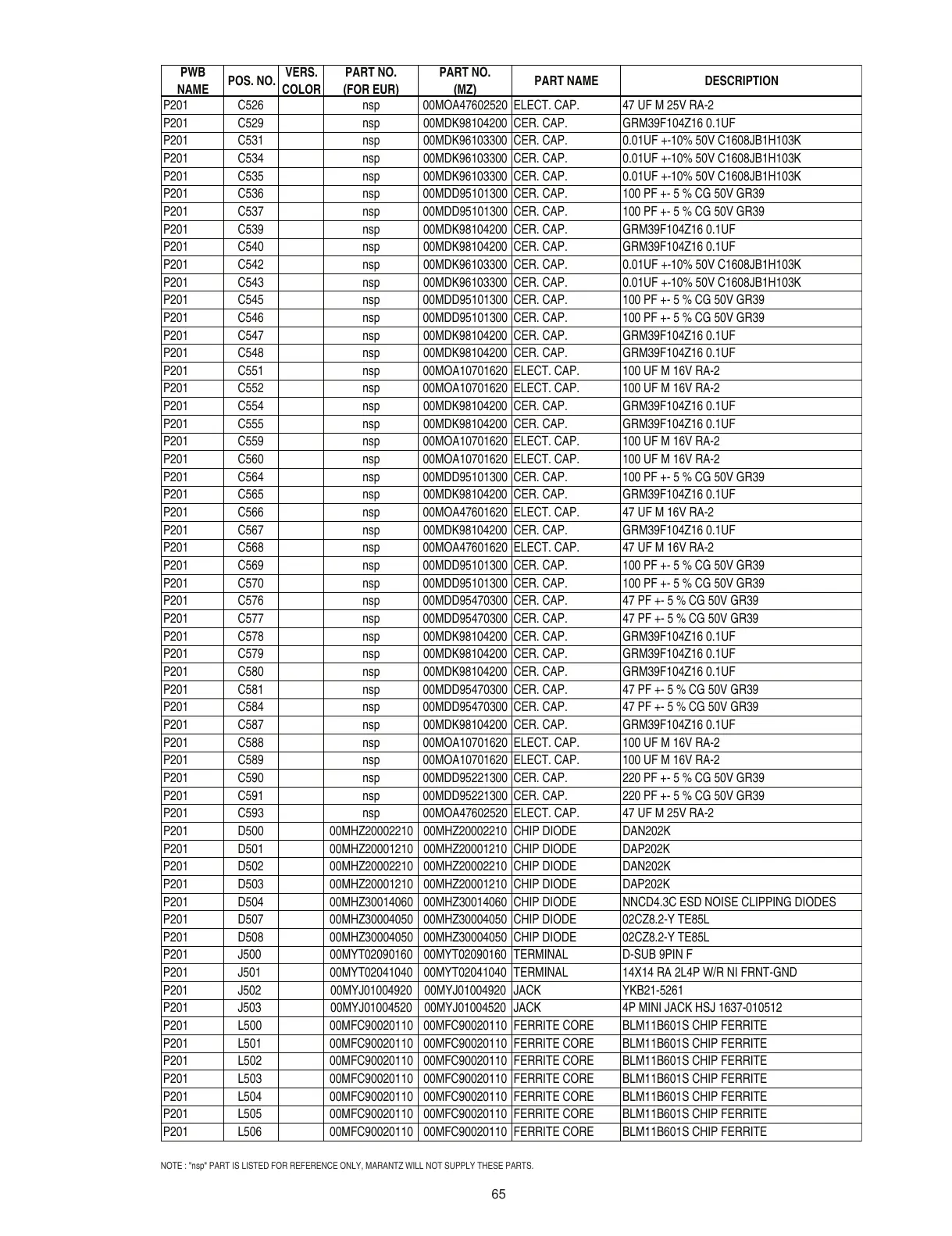

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
65
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P201 C526 nsp 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2
P201 C529 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C531 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P201 C534 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P201 C535 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P201 C536 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39
P201 C537 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39
P201 C539 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C540 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C542 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P201 C543 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P201 C545 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39
P201 C546 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39
P201 C547 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C548 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C551 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2
P201 C552 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2
P201 C554 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C555 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C559 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2
P201 C560 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2
P201 C564 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39
P201 C565 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C566 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2
P201 C567 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C568 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2
P201 C569 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39
P201 C570 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39
P201 C576 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39
P201 C577 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39
P201 C578 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C579 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C580 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C581 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39
P201 C584 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39
P201 C587 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P201 C588 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2
P201 C589 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2
P201 C590 nsp 00MDD95221300 CER. CAP. 220 PF +- 5 % CG 50V GR39
P201 C591 nsp 00MDD95221300 CER. CAP. 220 PF +- 5 % CG 50V GR39
P201 C593 nsp 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2
P201 D500 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K
P201 D501 00MHZ20001210 00MHZ20001210 CHIP DIODE DAP202K
P201 D502 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K
P201 D503 00MHZ20001210 00MHZ20001210 CHIP DIODE DAP202K
P201 D504 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES
P201 D507 00MHZ30004050 00MHZ30004050 CHIP DIODE 02CZ8.2-Y TE85L
P201 D508 00MHZ30004050 00MHZ30004050 CHIP DIODE 02CZ8.2-Y TE85L
P201 J500 00MYT02090160 00MYT02090160 TERMINAL D-SUB 9PIN F
P201 J501 00MYT02041040 00MYT02041040 TERMINAL 14X14 RA 2L4P W/R NI FRNT-GND
P201 J502 00MYJ01004920 00MYJ01004920 JACK YKB21-5261
P201 J503 00MYJ01004520 00MYJ01004520 JACK 4P MINI JACK HSJ 1637-010512
P201 L500 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L501 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L502 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L503 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L504 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L505 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L506 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
