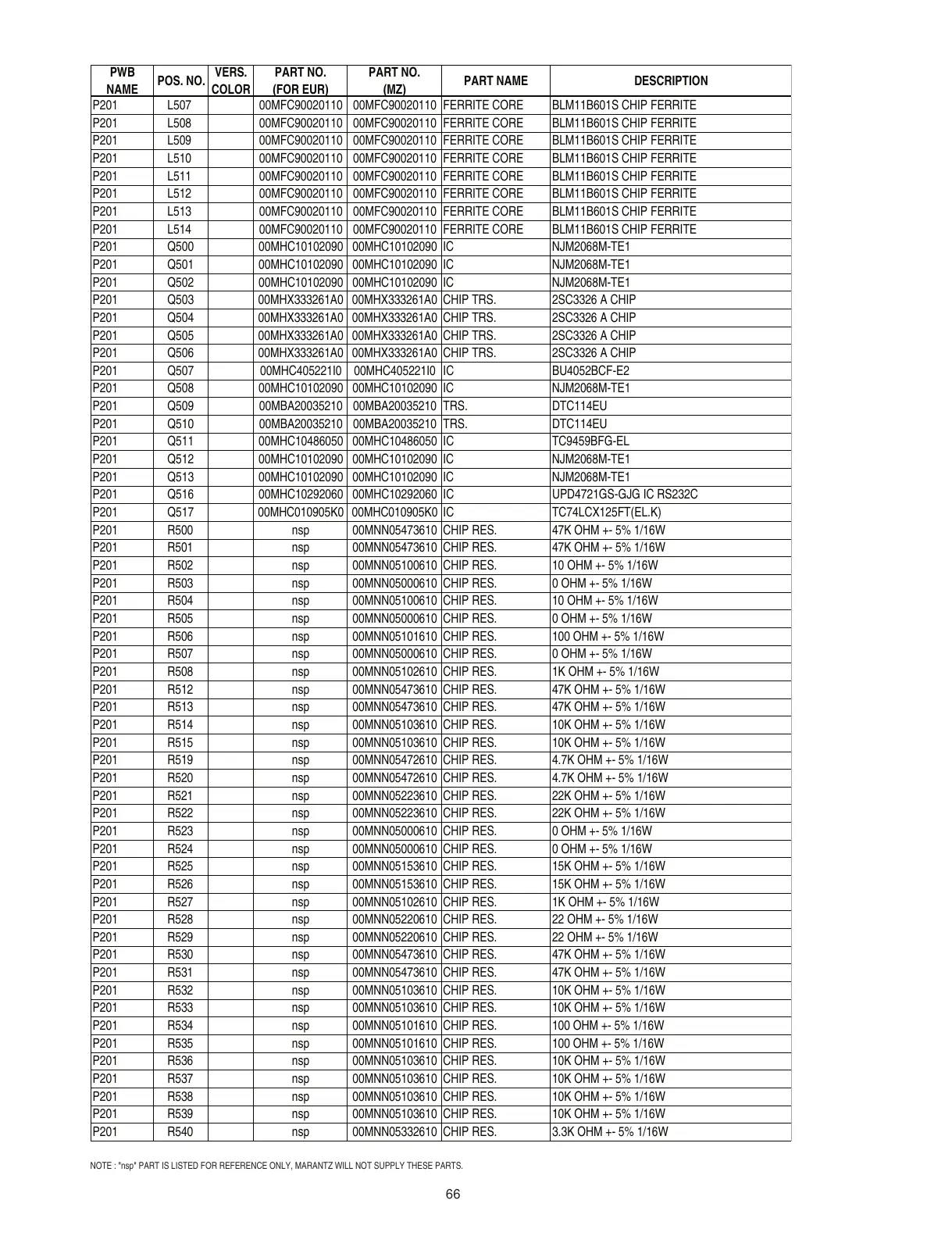

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
66
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P201 L507 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L508 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L509 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L510 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L511 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L512 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L513 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 L514 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P201 Q500 00MHC10102090 00MHC10102090 IC NJM2068M-TE1
P201 Q501 00MHC10102090 00MHC10102090 IC NJM2068M-TE1
P201 Q502 00MHC10102090 00MHC10102090 IC NJM2068M-TE1
P201 Q503 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP
P201 Q504 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP
P201 Q505 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP
P201 Q506 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP
P201 Q507 00MHC405221I0 00MHC405221I0 IC BU4052BCF-E2
P201 Q508 00MHC10102090 00MHC10102090 IC NJM2068M-TE1
P201 Q509 00MBA20035210 00MBA20035210 TRS. DTC114EU
P201 Q510 00MBA20035210 00MBA20035210 TRS. DTC114EU
P201 Q511 00MHC10486050 00MHC10486050 IC TC9459BFG-EL
P201 Q512 00MHC10102090 00MHC10102090 IC NJM2068M-TE1
P201 Q513 00MHC10102090 00MHC10102090 IC NJM2068M-TE1
P201 Q516 00MHC10292060 00MHC10292060 IC UPD4721GS-GJG IC RS232C
P201 Q517 00MHC010905K0 00MHC010905K0 IC TC74LCX125FT(EL.K)
P201 R500 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P201 R501 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P201 R502 nsp 00MNN05100610 CHIP RES. 10 OHM +- 5% 1/16W
P201 R503 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R504 nsp 00MNN05100610 CHIP RES. 10 OHM +- 5% 1/16W
P201 R505 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R506 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P201 R507 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R508 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P201 R512 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P201 R513 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P201 R514 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R515 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R519 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P201 R520 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P201 R521 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W
P201 R522 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W
P201 R523 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R524 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R525 nsp 00MNN05153610 CHIP RES. 15K OHM +- 5% 1/16W
P201 R526 nsp 00MNN05153610 CHIP RES. 15K OHM +- 5% 1/16W
P201 R527 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P201 R528 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R529 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R530 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P201 R531 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P201 R532 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R533 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R534 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P201 R535 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P201 R536 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R537 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R538 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R539 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R540 nsp 00MNN05332610 CHIP RES. 3.3K OHM +- 5% 1/16W
