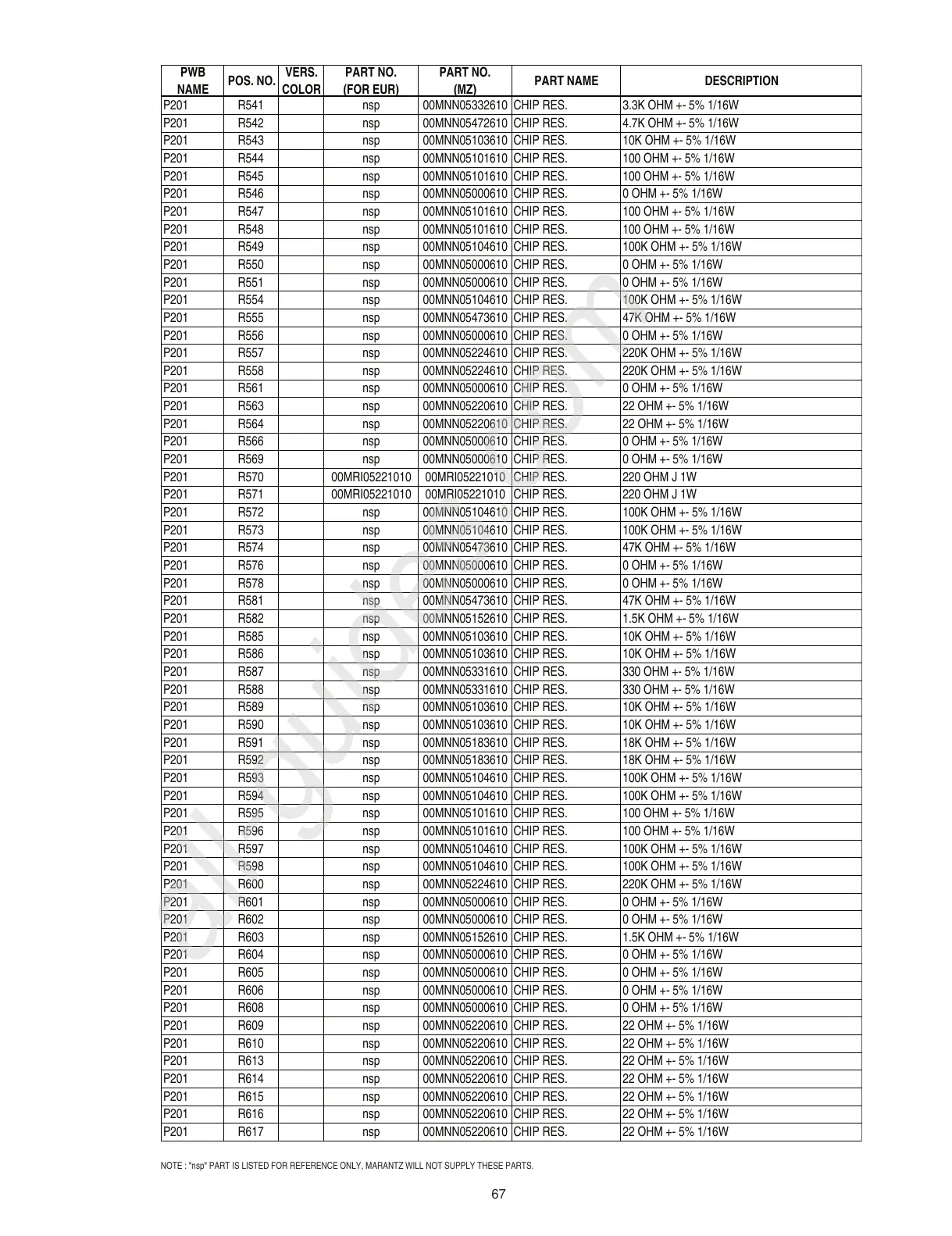

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
67
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P201 R541 nsp 00MNN05332610 CHIP RES. 3.3K OHM +- 5% 1/16W
P201 R542 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W
P201 R543 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R544 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P201 R545 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P201 R546 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R547 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P201 R548 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P201 R549 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P201 R550 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R551 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R554 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P201 R555 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P201 R556 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R557 nsp 00MNN05224610 CHIP RES. 220K OHM +- 5% 1/16W
P201 R558 nsp 00MNN05224610 CHIP RES. 220K OHM +- 5% 1/16W
P201 R561 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R563 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R564 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R566 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R569 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R570 00MRI05221010 00MRI05221010 CHIP RES. 220 OHM J 1W
P201 R571 00MRI05221010 00MRI05221010 CHIP RES. 220 OHM J 1W
P201 R572 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P201 R573 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P201 R574 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P201 R576 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R578 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R581 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P201 R582 nsp 00MNN05152610 CHIP RES. 1.5K OHM +- 5% 1/16W
P201 R585 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R586 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R587 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P201 R588 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
P201 R589 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R590 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P201 R591 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W
P201 R592 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W
P201 R593 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P201 R594 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P201 R595 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P201 R596 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W
P201 R597 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P201 R598 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P201 R600 nsp 00MNN05224610 CHIP RES. 220K OHM +- 5% 1/16W
P201 R601 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R602 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R603 nsp 00MNN05152610 CHIP RES. 1.5K OHM +- 5% 1/16W
P201 R604 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R605 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R606 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R608 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R609 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R610 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R613 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R614 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R615 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R616 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R617 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
