Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

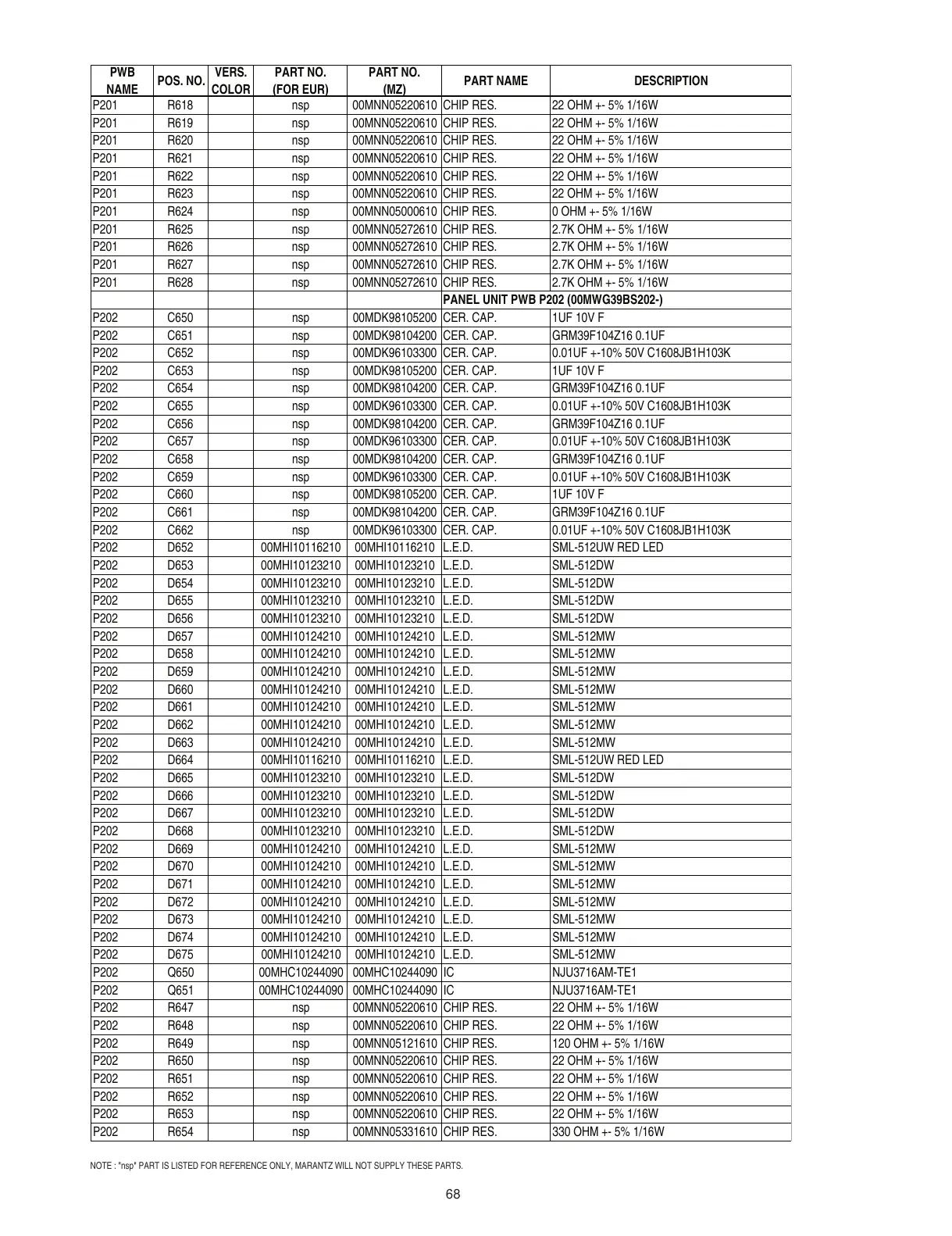

68
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P201 R618 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R619 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R620 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R621 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R622 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R623 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P201 R624 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P201 R625 nsp 00MNN05272610 CHIP RES. 2.7K OHM +- 5% 1/16W
P201 R626 nsp 00MNN05272610 CHIP RES. 2.7K OHM +- 5% 1/16W
P201 R627 nsp 00MNN05272610 CHIP RES. 2.7K OHM +- 5% 1/16W
P201 R628 nsp 00MNN05272610 CHIP RES. 2.7K OHM +- 5% 1/16W
PANEL UNIT PWB P202 (00MWG39BS202-)
P202 C650 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P202 C651 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P202 C652 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P202 C653 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P202 C654 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P202 C655 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P202 C656 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P202 C657 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P202 C658 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P202 C659 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P202 C660 nsp 00MDK98105200 CER. CAP. 1UF 10V F
P202 C661 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P202 C662 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P202 D652 00MHI10116210 00MHI10116210 L.E.D. SML-512UW RED LED
P202 D653 00MHI10123210 00MHI10123210 L.E.D. SML-512DW
P202 D654 00MHI10123210 00MHI10123210 L.E.D. SML-512DW
P202 D655 00MHI10123210 00MHI10123210 L.E.D. SML-512DW
P202 D656 00MHI10123210 00MHI10123210 L.E.D. SML-512DW
P202 D657 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D658 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D659 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D660 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D661 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D662 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D663 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D664 00MHI10116210 00MHI10116210 L.E.D. SML-512UW RED LED
P202 D665 00MHI10123210 00MHI10123210 L.E.D. SML-512DW
P202 D666 00MHI10123210 00MHI10123210 L.E.D. SML-512DW
P202 D667 00MHI10123210 00MHI10123210 L.E.D. SML-512DW
P202 D668 00MHI10123210 00MHI10123210 L.E.D. SML-512DW
P202 D669 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D670 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D671 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D672 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D673 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D674 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 D675 00MHI10124210 00MHI10124210 L.E.D. SML-512MW
P202 Q650 00MHC10244090 00MHC10244090 IC NJU3716AM-TE1
P202 Q651 00MHC10244090 00MHC10244090 IC NJU3716AM-TE1
P202 R647 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P202 R648 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P202 R649 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R650 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P202 R651 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P202 R652 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P202 R653 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P202 R654 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W
