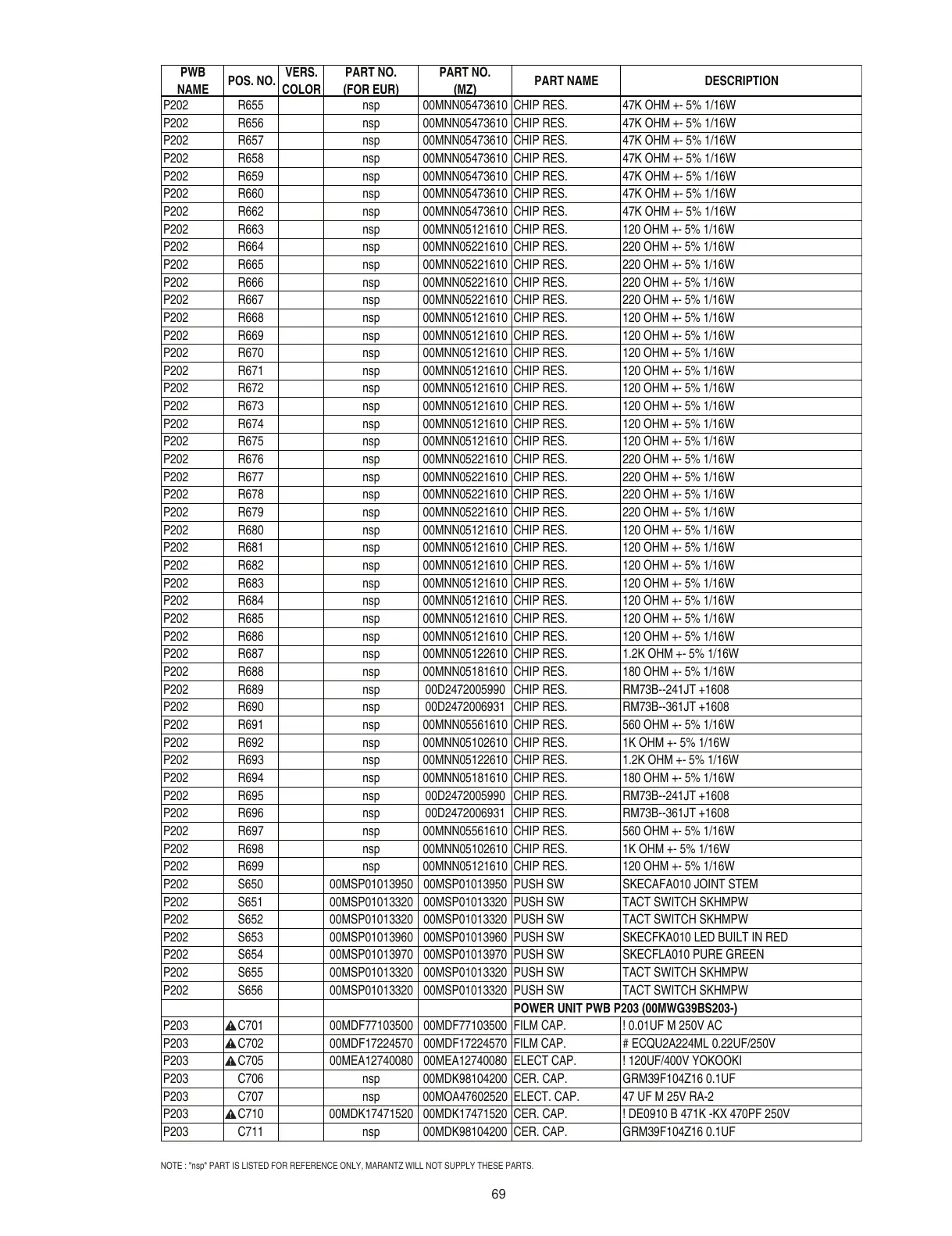

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
69
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P202 R655 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P202 R656 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P202 R657 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P202 R658 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P202 R659 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P202 R660 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P202 R662 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P202 R663 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R664 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P202 R665 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P202 R666 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P202 R667 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P202 R668 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R669 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R670 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R671 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R672 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R673 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R674 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R675 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R676 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P202 R677 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P202 R678 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P202 R679 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P202 R680 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R681 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R682 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R683 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R684 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R685 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R686 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 R687 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W
P202 R688 nsp 00MNN05181610 CHIP RES. 180 OHM +- 5% 1/16W
P202 R689 nsp 00D2472005990 CHIP RES. RM73B--241JT +1608
P202 R690 nsp 00D2472006931 CHIP RES. RM73B--361JT +1608
P202 R691 nsp 00MNN05561610 CHIP RES. 560 OHM +- 5% 1/16W
P202 R692 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P202 R693 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W
P202 R694 nsp 00MNN05181610 CHIP RES. 180 OHM +- 5% 1/16W
P202 R695 nsp 00D2472005990 CHIP RES. RM73B--241JT +1608
P202 R696 nsp 00D2472006931 CHIP RES. RM73B--361JT +1608
P202 R697 nsp 00MNN05561610 CHIP RES. 560 OHM +- 5% 1/16W
P202 R698 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P202 R699 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P202 S650 00MSP01013950 00MSP01013950 PUSH SW SKECAFA010 JOINT STEM
P202 S651 00MSP01013320 00MSP01013320 PUSH SW TACT SWITCH SKHMPW
P202 S652 00MSP01013320 00MSP01013320 PUSH SW TACT SWITCH SKHMPW
P202 S653 00MSP01013960 00MSP01013960 PUSH SW SKECFKA010 LED BUILT IN RED
P202 S654 00MSP01013970 00MSP01013970 PUSH SW SKECFLA010 PURE GREEN
P202 S655 00MSP01013320 00MSP01013320 PUSH SW TACT SWITCH SKHMPW
P202 S656 00MSP01013320 00MSP01013320 PUSH SW TACT SWITCH SKHMPW
POWER UNIT PWB P203 (00MWG39BS203-)
P203
!
C701 00MDF77103500 00MDF77103500 FILM CAP. ! 0.01UF M 250V AC
P203
!
C702 00MDF17224570 00MDF17224570 FILM CAP. # ECQU2A224ML 0.22UF/250V
P203
!
C705 00MEA12740080 00MEA12740080 ELECT CAP. ! 120UF/400V YOKOOKI
P203 C706 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C707 nsp 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2
P203
!
C710 00MDK17471520 00MDK17471520 CER. CAP. ! DE0910 B 471K -KX 470PF 250V
P203 C711 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
