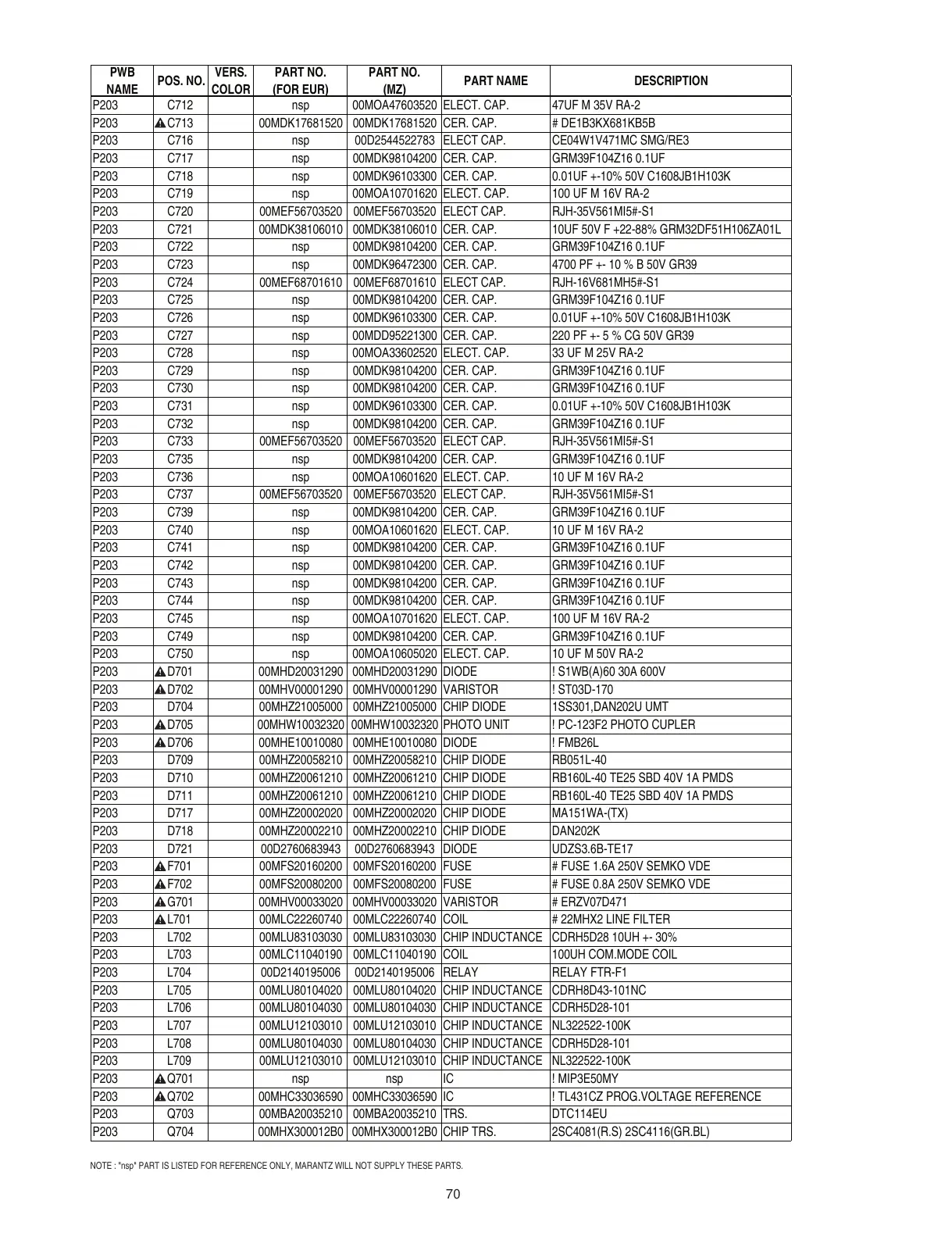

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
70
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P203 C712 nsp 00MOA47603520 ELECT. CAP. 47UF M 35V RA-2
P203
!
C713 00MDK17681520 00MDK17681520 CER. CAP. # DE1B3KX681KB5B
P203 C716 nsp 00D2544522783 ELECT CAP. CE04W1V471MC SMG/RE3
P203 C717 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C718 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P203 C719 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2
P203 C720 00MEF56703520 00MEF56703520 ELECT CAP. RJH-35V561MI5#-S1
P203 C721 00MDK38106010 00MDK38106010 CER. CAP. 10UF 50V F +22-88% GRM32DF51H106ZA01L
P203 C722 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C723 nsp 00MDK96472300 CER. CAP. 4700 PF +- 10 % B 50V GR39
P203 C724 00MEF68701610 00MEF68701610 ELECT CAP. RJH-16V681MH5#-S1
P203 C725 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C726 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P203 C727 nsp 00MDD95221300 CER. CAP. 220 PF +- 5 % CG 50V GR39
P203 C728 nsp 00MOA33602520 ELECT. CAP. 33 UF M 25V RA-2
P203 C729 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C730 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C731 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K
P203 C732 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C733 00MEF56703520 00MEF56703520 ELECT CAP. RJH-35V561MI5#-S1
P203 C735 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C736 nsp 00MOA10601620 ELECT. CAP. 10 UF M 16V RA-2
P203 C737 00MEF56703520 00MEF56703520 ELECT CAP. RJH-35V561MI5#-S1
P203 C739 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C740 nsp 00MOA10601620 ELECT. CAP. 10 UF M 16V RA-2
P203 C741 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C742 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C743 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C744 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C745 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2
P203 C749 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P203 C750 nsp 00MOA10605020 ELECT. CAP. 10 UF M 50V RA-2
P203
!
D701 00MHD20031290 00MHD20031290 DIODE ! S1WB(A)60 30A 600V
P203
!
D702 00MHV00001290 00MHV00001290 VARISTOR ! ST03D-170
P203 D704 00MHZ21005000 00MHZ21005000 CHIP DIODE 1SS301,DAN202U UMT
P203
!
D705 00MHW10032320 00MHW10032320 PHOTO UNIT ! PC-123F2 PHOTO CUPLER
P203
!
D706 00MHE10010080 00MHE10010080 DIODE ! FMB26L
P203 D709 00MHZ20058210 00MHZ20058210 CHIP DIODE RB051L-40
P203 D710 00MHZ20061210 00MHZ20061210 CHIP DIODE RB160L-40 TE25 SBD 40V 1A PMDS
P203 D711 00MHZ20061210 00MHZ20061210 CHIP DIODE RB160L-40 TE25 SBD 40V 1A PMDS
P203 D717 00MHZ20002020 00MHZ20002020 CHIP DIODE MA151WA-(TX)
P203 D718 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K
P203 D721 00D2760683943 00D2760683943 DIODE UDZS3.6B-TE17
P203
!
F701 00MFS20160200 00MFS20160200 FUSE # FUSE 1.6A 250V SEMKO VDE
P203
!
F702 00MFS20080200 00MFS20080200 FUSE # FUSE 0.8A 250V SEMKO VDE
P203
!
G701 00MHV00033020 00MHV00033020 VARISTOR # ERZV07D471
P203
!
L701 00MLC22260740 00MLC22260740 COIL # 22MHX2 LINE FILTER
P203 L702 00MLU83103030 00MLU83103030 CHIP INDUCTANCE CDRH5D28 10UH +- 30%
P203 L703 00MLC11040190 00MLC11040190 COIL 100UH COM.MODE COIL
P203 L704 00D2140195006 00D2140195006 RELAY RELAY FTR-F1
P203 L705 00MLU80104020 00MLU80104020 CHIP INDUCTANCE CDRH8D43-101NC
P203 L706 00MLU80104030 00MLU80104030 CHIP INDUCTANCE CDRH5D28-101
P203 L707 00MLU12103010 00MLU12103010 CHIP INDUCTANCE NL322522-100K
P203 L708 00MLU80104030 00MLU80104030 CHIP INDUCTANCE CDRH5D28-101
P203 L709 00MLU12103010 00MLU12103010 CHIP INDUCTANCE NL322522-100K
P203
!
Q701 nsp nsp IC ! MIP3E50MY
P203
!
Q702 00MHC33036590 00MHC33036590 IC ! TL431CZ PROG.VOLTAGE REFERENCE
P203 Q703 00MBA20035210 00MBA20035210 TRS. DTC114EU
P203 Q704 00MHX300012B0 00MHX300012B0 CHIP TRS. 2SC4081(R.S) 2SC4116(GR.BL)
