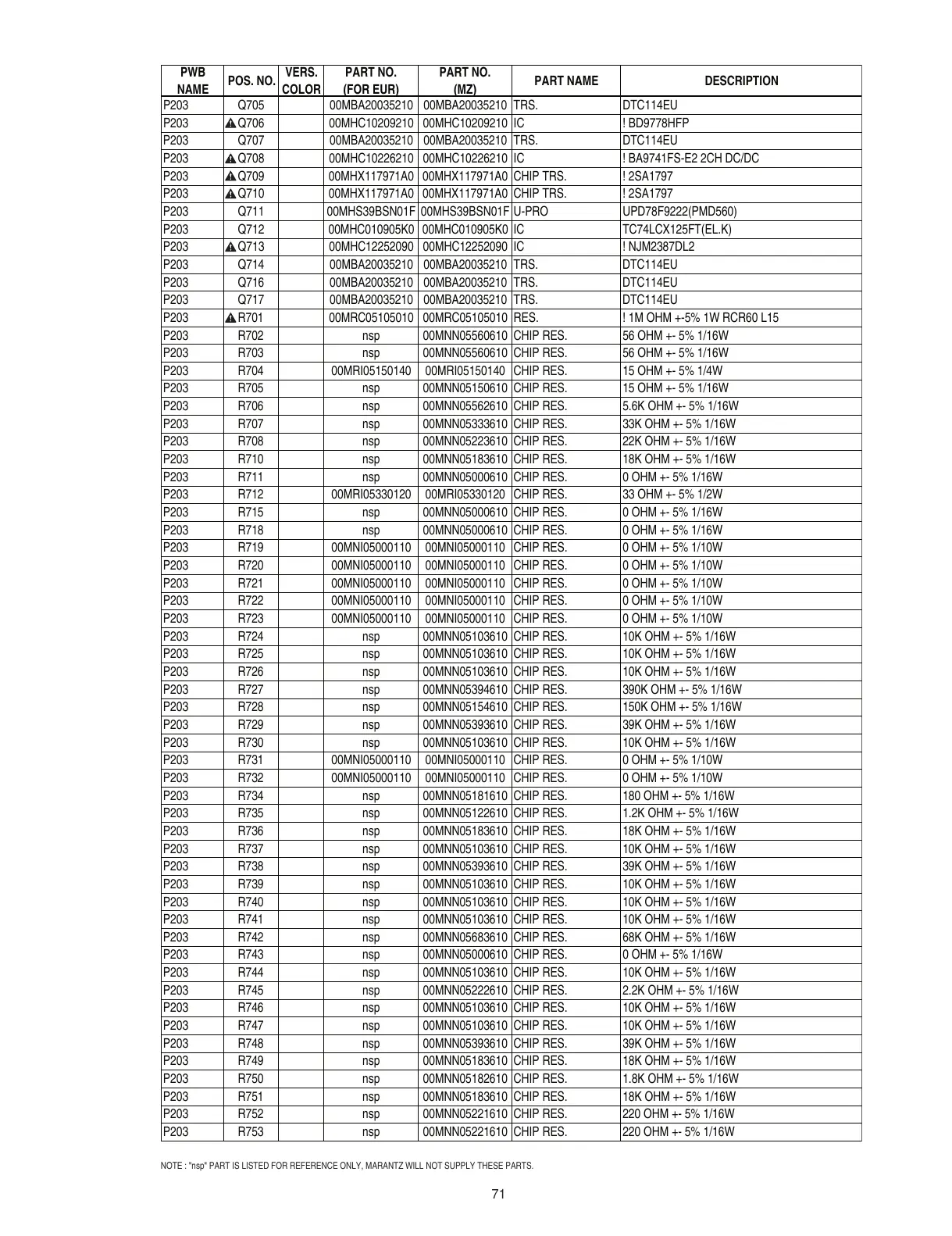

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
71
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P203 Q705 00MBA20035210 00MBA20035210 TRS. DTC114EU
P203
!
Q706 00MHC10209210 00MHC10209210 IC ! BD9778HFP
P203 Q707 00MBA20035210 00MBA20035210 TRS. DTC114EU
P203
!
Q708 00MHC10226210 00MHC10226210 IC ! BA9741FS-E2 2CH DC/DC
P203
!
Q709 00MHX117971A0 00MHX117971A0 CHIP TRS. ! 2SA1797
P203
!
Q710 00MHX117971A0 00MHX117971A0 CHIP TRS. ! 2SA1797
P203 Q711 00MHS39BSN01F 00MHS39BSN01F U-PRO UPD78F9222(PMD560)
P203 Q712 00MHC010905K0 00MHC010905K0 IC TC74LCX125FT(EL.K)
P203
!
Q713 00MHC12252090 00MHC12252090 IC ! NJM2387DL2
P203 Q714 00MBA20035210 00MBA20035210 TRS. DTC114EU
P203 Q716 00MBA20035210 00MBA20035210 TRS. DTC114EU
P203 Q717 00MBA20035210 00MBA20035210 TRS. DTC114EU
P203
!
R701 00MRC05105010 00MRC05105010 RES. ! 1M OHM +-5% 1W RCR60 L15
P203 R702 nsp 00MNN05560610 CHIP RES. 56 OHM +- 5% 1/16W
P203 R703 nsp 00MNN05560610 CHIP RES. 56 OHM +- 5% 1/16W
P203 R704 00MRI05150140 00MRI05150140 CHIP RES. 15 OHM +- 5% 1/4W
P203 R705 nsp 00MNN05150610 CHIP RES. 15 OHM +- 5% 1/16W
P203 R706 nsp 00MNN05562610 CHIP RES. 5.6K OHM +- 5% 1/16W
P203 R707 nsp 00MNN05333610 CHIP RES. 33K OHM +- 5% 1/16W
P203 R708 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W
P203 R710 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W
P203 R711 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P203 R712 00MRI05330120 00MRI05330120 CHIP RES. 33 OHM +- 5% 1/2W
P203 R715 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P203 R718 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P203 R719 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P203 R720 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P203 R721 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P203 R722 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P203 R723 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P203 R724 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R725 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R726 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R727 nsp 00MNN05394610 CHIP RES. 390K OHM +- 5% 1/16W
P203 R728 nsp 00MNN05154610 CHIP RES. 150K OHM +- 5% 1/16W
P203 R729 nsp 00MNN05393610 CHIP RES. 39K OHM +- 5% 1/16W
P203 R730 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R731 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P203 R732 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P203 R734 nsp 00MNN05181610 CHIP RES. 180 OHM +- 5% 1/16W
P203 R735 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W
P203 R736 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W
P203 R737 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R738 nsp 00MNN05393610 CHIP RES. 39K OHM +- 5% 1/16W
P203 R739 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R740 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R741 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R742 nsp 00MNN05683610 CHIP RES. 68K OHM +- 5% 1/16W
P203 R743 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P203 R744 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R745 nsp 00MNN05222610 CHIP RES. 2.2K OHM +- 5% 1/16W
P203 R746 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R747 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R748 nsp 00MNN05393610 CHIP RES. 39K OHM +- 5% 1/16W
P203 R749 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W
P203 R750 nsp 00MNN05182610 CHIP RES. 1.8K OHM +- 5% 1/16W
P203 R751 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W
P203 R752 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P203 R753 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
