Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

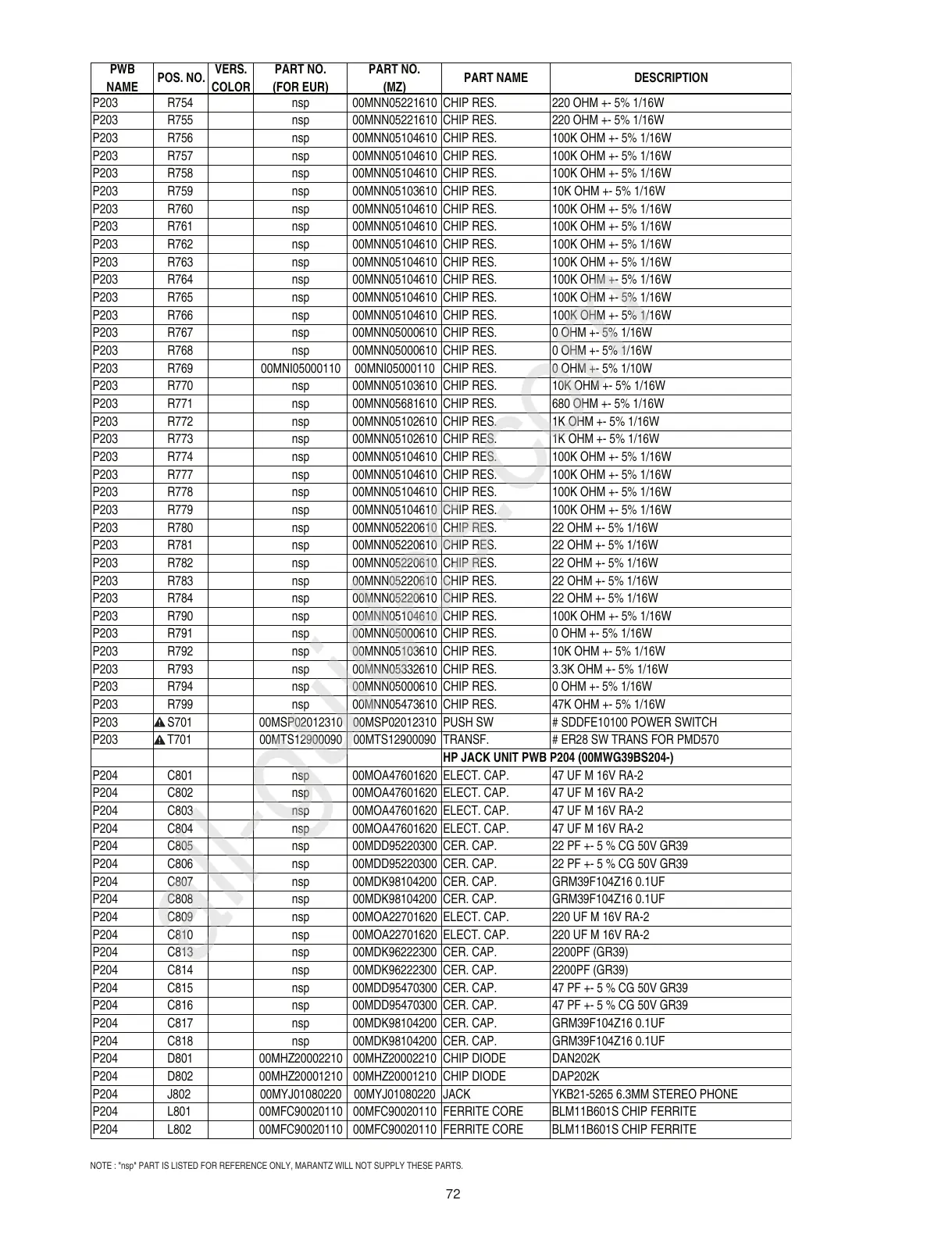

72
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P203 R754 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P203 R755 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W
P203 R756 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R757 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R758 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R759 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R760 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R761 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R762 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R763 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R764 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R765 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R766 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R767 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P203 R768 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P203 R769 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P203 R770 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R771 nsp 00MNN05681610 CHIP RES. 680 OHM +- 5% 1/16W
P203 R772 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P203 R773 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W
P203 R774 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R777 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R778 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R779 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R780 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P203 R781 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P203 R782 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P203 R783 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P203 R784 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W
P203 R790 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W
P203 R791 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P203 R792 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P203 R793 nsp 00MNN05332610 CHIP RES. 3.3K OHM +- 5% 1/16W
P203 R794 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P203 R799 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P203
!
S701 00MSP02012310 00MSP02012310 PUSH SW # SDDFE10100 POWER SWITCH
P203
!
T701 00MTS12900090 00MTS12900090 TRANSF. # ER28 SW TRANS FOR PMD570
HP JACK UNIT PWB P204 (00MWG39BS204-)
P204 C801 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2
P204 C802 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2
P204 C803 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2
P204 C804 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2
P204 C805 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39
P204 C806 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39
P204 C807 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P204 C808 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P204 C809 nsp 00MOA22701620 ELECT. CAP. 220 UF M 16V RA-2
P204 C810 nsp 00MOA22701620 ELECT. CAP. 220 UF M 16V RA-2
P204 C813 nsp 00MDK96222300 CER. CAP. 2200PF (GR39)
P204 C814 nsp 00MDK96222300 CER. CAP. 2200PF (GR39)
P204 C815 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39
P204 C816 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39
P204 C817 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P204 C818 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF
P204 D801 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K
P204 D802 00MHZ20001210 00MHZ20001210 CHIP DIODE DAP202K
P204 J802 00MYJ01080220 00MYJ01080220 JACK YKB21-5265 6.3MM STEREO PHONE
P204 L801 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P204 L802 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
