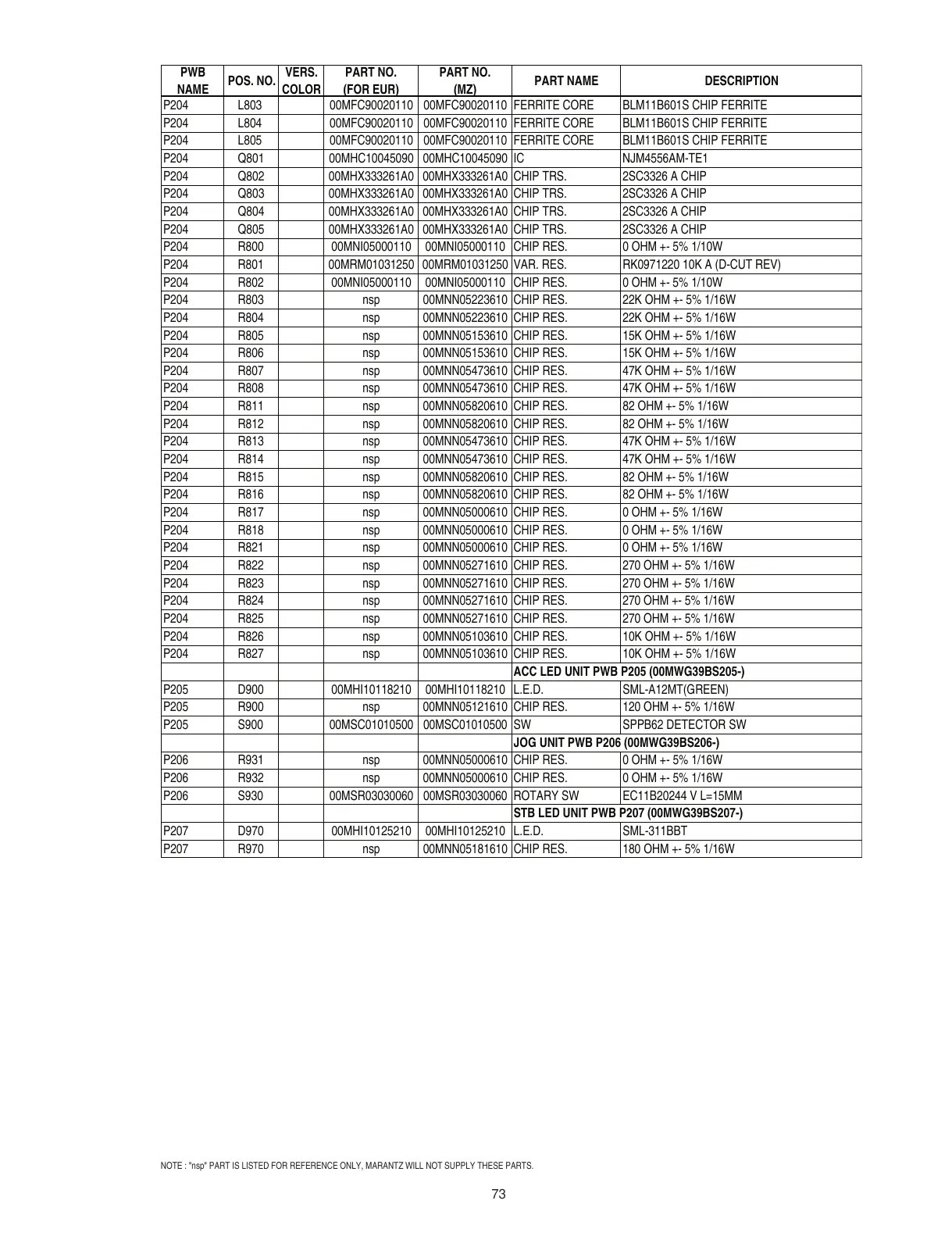

Marantz PMD560 Service Manual

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
73
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
P204 L803 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P204 L804 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P204 L805 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
P204 Q801 00MHC10045090 00MHC10045090 IC NJM4556AM-TE1
P204 Q802 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP
P204 Q803 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP
P204 Q804 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP
P204 Q805 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP
P204 R800 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P204 R801 00MRM01031250 00MRM01031250 VAR. RES. RK0971220 10K A (D-CUT REV)
P204 R802 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W
P204 R803 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W
P204 R804 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W
P204 R805 nsp 00MNN05153610 CHIP RES. 15K OHM +- 5% 1/16W
P204 R806 nsp 00MNN05153610 CHIP RES. 15K OHM +- 5% 1/16W
P204 R807 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P204 R808 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P204 R811 nsp 00MNN05820610 CHIP RES. 82 OHM +- 5% 1/16W
P204 R812 nsp 00MNN05820610 CHIP RES. 82 OHM +- 5% 1/16W
P204 R813 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P204 R814 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W
P204 R815 nsp 00MNN05820610 CHIP RES. 82 OHM +- 5% 1/16W
P204 R816 nsp 00MNN05820610 CHIP RES. 82 OHM +- 5% 1/16W
P204 R817 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P204 R818 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P204 R821 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P204 R822 nsp 00MNN05271610 CHIP RES. 270 OHM +- 5% 1/16W
P204 R823 nsp 00MNN05271610 CHIP RES. 270 OHM +- 5% 1/16W
P204 R824 nsp 00MNN05271610 CHIP RES. 270 OHM +- 5% 1/16W
P204 R825 nsp 00MNN05271610 CHIP RES. 270 OHM +- 5% 1/16W
P204 R826 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
P204 R827 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W
ACC LED UNIT PWB P205 (00MWG39BS205-)
P205 D900 00MHI10118210 00MHI10118210 L.E.D. SML-A12MT(GREEN)
P205 R900 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W
P205 S900 00MSC01010500 00MSC01010500 SW SPPB62 DETECTOR SW
JOG UNIT PWB P206 (00MWG39BS206-)
P206 R931 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P206 R932 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W
P206 S930 00MSR03030060 00MSR03030060 ROTARY SW EC11B20244 V L=15MM
STB LED UNIT PWB P207 (00MWG39BS207-)
P207 D970 00MHI10125210 00MHI10125210 L.E.D. SML-311BBT
P207 R970 nsp 00MNN05181610 CHIP RES. 180 OHM +- 5% 1/16W
