Marantz PROFESSIONAL PMD740 - Page 12

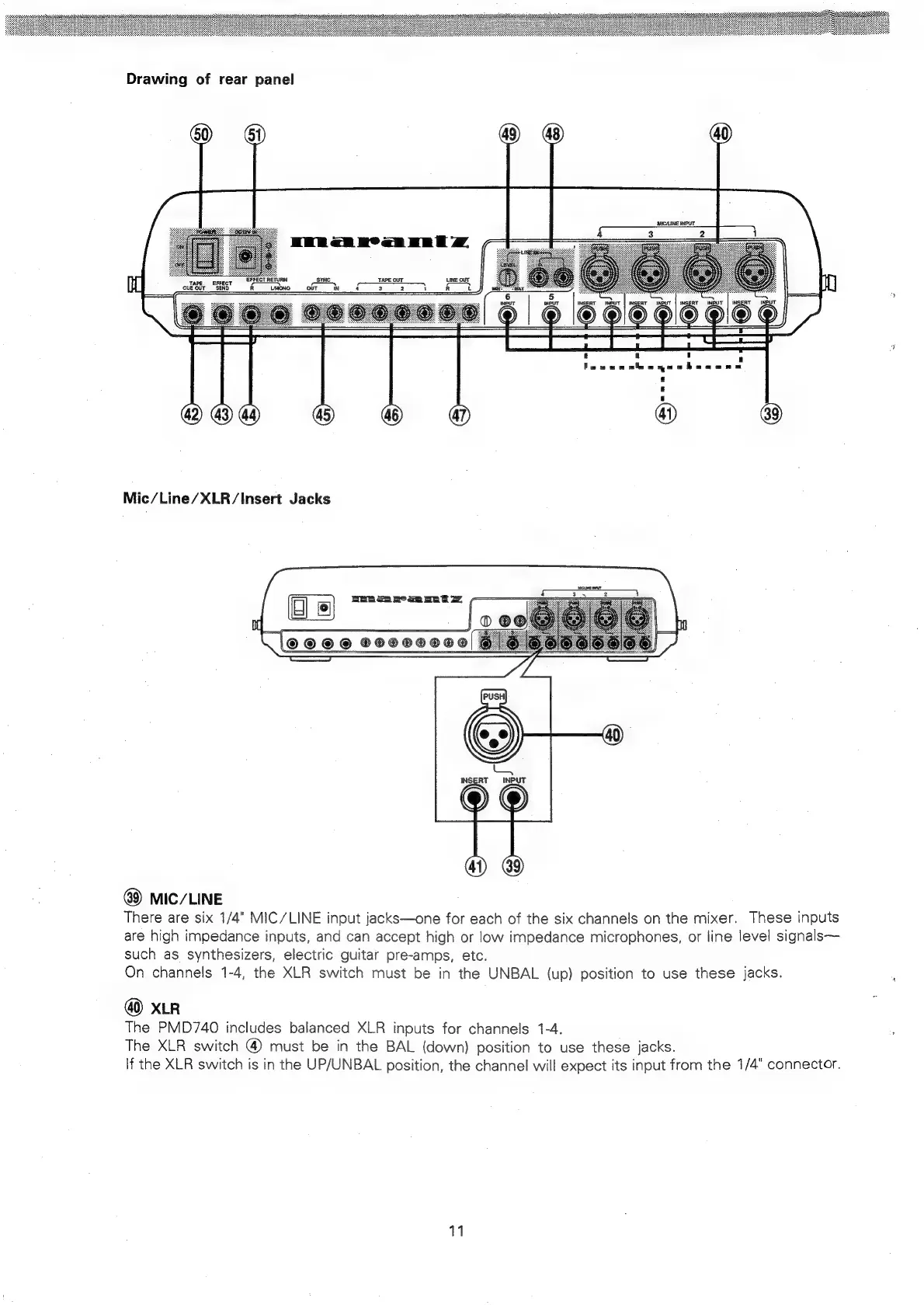

Drawing of rear panel
MIC/LINE INPUT.
ERR eR Bean ERE Z.
uM
Tape. erect EFFECT RETURN sync
CUEQUT SEND R LIMONO ouT
eee eee eee
£
f
i]
MIC/LINE
There are six 1/4" MIC/LINE input jacks—one for each of the six channels on the mixer. These inputs
are high impedance inputs, and can accept high or low impedance microphones, or line level signals—
such as synthesizers, electric guitar pre-amps, etc.
On channels 1-4, the XLR switch must be in the UNBAL (up) position to use these jacks.
XLR
The PMD740 includes balanced XLR inputs for channels 1-4.
The XLR switch @ must be in the BAL (down) position to use these jacks.
If the XLR switch is in the UP/UNBAL position, the channel will expect its input from the 1/4" connector.
11
