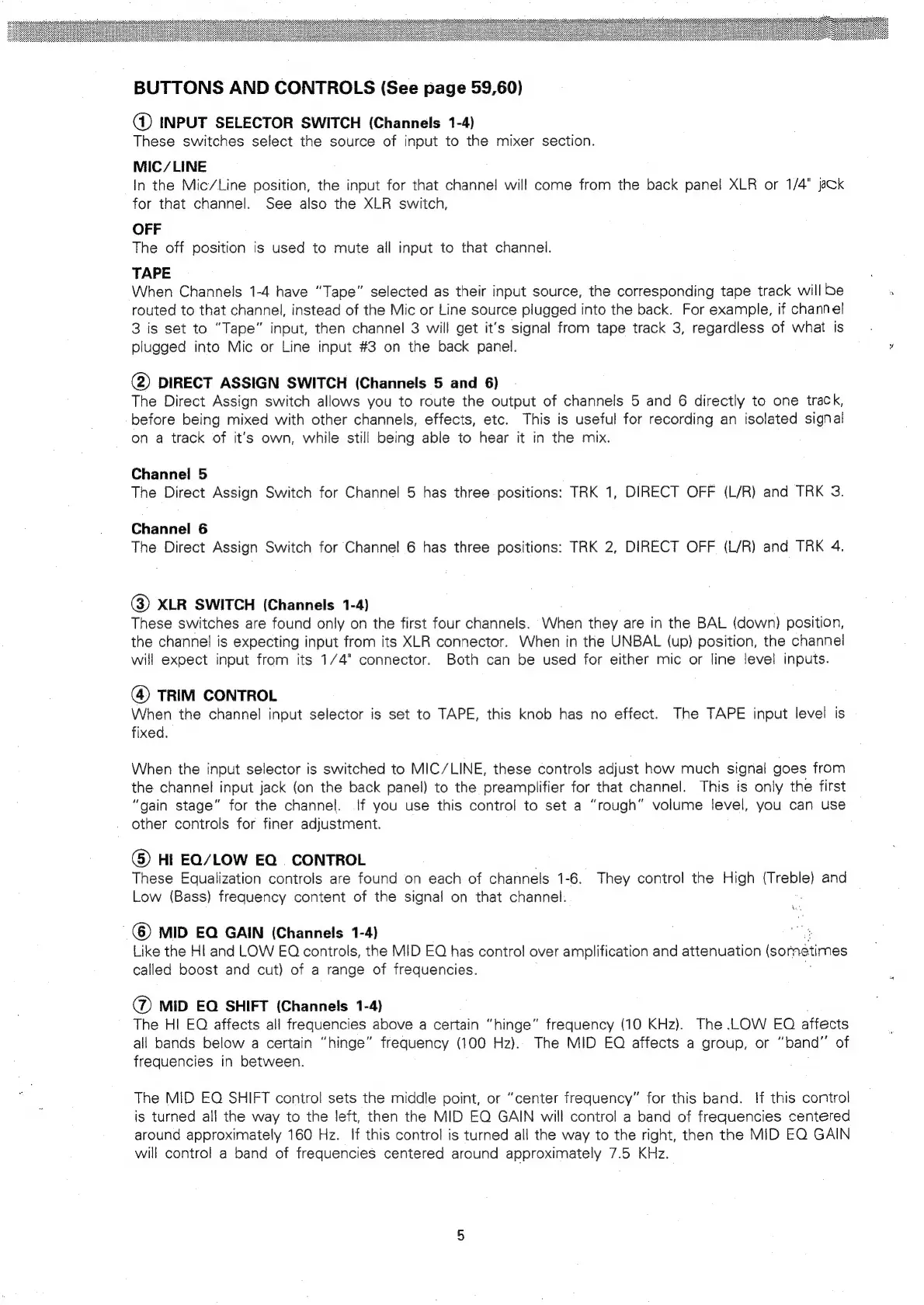

BUTTONS
AND
CONTROLS
(See
page
59,60)
@)
INPUT
SELECTOR
SWITCH
(Channels
1-4)
These
switches
select
the
source
of
input
to
the
mixer
section.
MIC/LINE
In
the
Mic/Line
position,
the
input
for
that
channel
will
come
from
the
back
panel
XLR
or
1/4"
jack
for
that
channel.
See
also
the
XLR
switch,
OFF
The
off
position
is
used
to
mute
all
input
to
that
channel.
TAPE
When
Channels
1-4
have
“Tape”
selected
as
their
input
source,
the
corresponding
tape
track
will
be
routed
to
that
channel,
instead
of
the
Mic
or
Line
source
plugged
into
the
back.
For
example,
if
channel
3
is
set
to
“Tape”
input,
then
channel
3
will
get
it’s
signal
from
tape
track
3,
regardless
of
what
is
plugged
into
Mic
or
Line
input
#3
on
the
back
panel.
(2)
DIRECT
ASSIGN
SWITCH
(Channels
5
and
6)
The
Direct
Assign
switch
allows
you
to
route
the
output
of
channels
5
and
6
directly
to
one
track,
before
being
mixed
with
other
channels,
effects,
etc.
This
is
useful
for
recording
an
isolated
signal
on
a
track
of
it's
own,
while
still
being
able
to
hear
it
in
the
mix.
Channel
5
The
Direct
Assign
Switch
for
Channel
5
has
three
positions:
TRK
1,
DIRECT
OFF
(L/R)
and
TRK
3.
Channel
6
The
Direct
Assign
Switch
for
Channel
6
has
three
positions:
TRK
2,
DIRECT
OFF
(L/R)
and
TRK
4.
@)
XLR
SWITCH
(Channels
1-4)
These
switches
are
found
only
on
the
first
four
channels.
When
they
are
in
the
BAL
(down)
position,
the
channel
is
expecting
input
from
its
XLR
connector.
When
in
the
UNBAL
(up)
position,
the
channel
will
expect
input
from
its
1/4"
connector.
Both
can
be
used
for
either
mic
or
line
level
inputs.
@
TRIM
CONTROL
When
the
channel
input
selector
is
set
to
TAPE,
this
knob
has
no
effect.
The
TAPE
input
level
is
fixed.
When
the
input
selector
is
switched
to
MIC/LINE,
these
controls
adjust
how
much
signal
goes
from
the
channel
input
jack
(on
the
back
panel)
to
the
preamplifier
for
that
channel.
This
is
only
the
first
“gain
stage”
for
the
channel.
If
you
use
this
control
to
set
a
“rough”
volume
level,
you
can
use
other
controls
for
finer
adjustment.
(©)
Hl
EQ/LOW
EQ
CONTROL
These
Equalization
controls
are
found
on
each
of
channels
1-6.
They
control
the
High
(Treble)
and
Low
(Bass)
frequency
content
of
the
signal
on
that
channel.
©
MID
EQ
GAIN
(Channels
1-4)
Like
the
HI
and
LOW
EQ
controls,
the
MID
EQ
has
control!
over
amplification
and
attenuation
(sométimes
called
boost
and
cut)
of
a
range
of
frequencies.
@
MID
EO
SHIFT
(Channels
1-4)
;
The
HI
EQ
affects
all
frequencies
above
a
certain
“hinge”
frequency
(10
KHz).
The
.LOW
EQ
affects
all
bands
below
a
certain
“hinge”
frequency
(100
Hz)..
The
MID
EQ
affects
a
group,
or
“band”
of
frequencies
in
between.
The
MID
EQ
SHIFT
control
sets
the
middle
point,
or
“center
frequency”
for
this
band.
If
this
control
is
turned
all
the
way
to
the
left,
then
the
MID
EO
GAIN
will
control
a
band
of
frequencies
centered
around
approximately
160
Hz.
If
this
control
is
turned
all
the
way
to
the
right,
then
the
MiD
EQ
GAIN
will
control
a
band
of
frequencies
centered
around
approximately
7.5
KHz.
