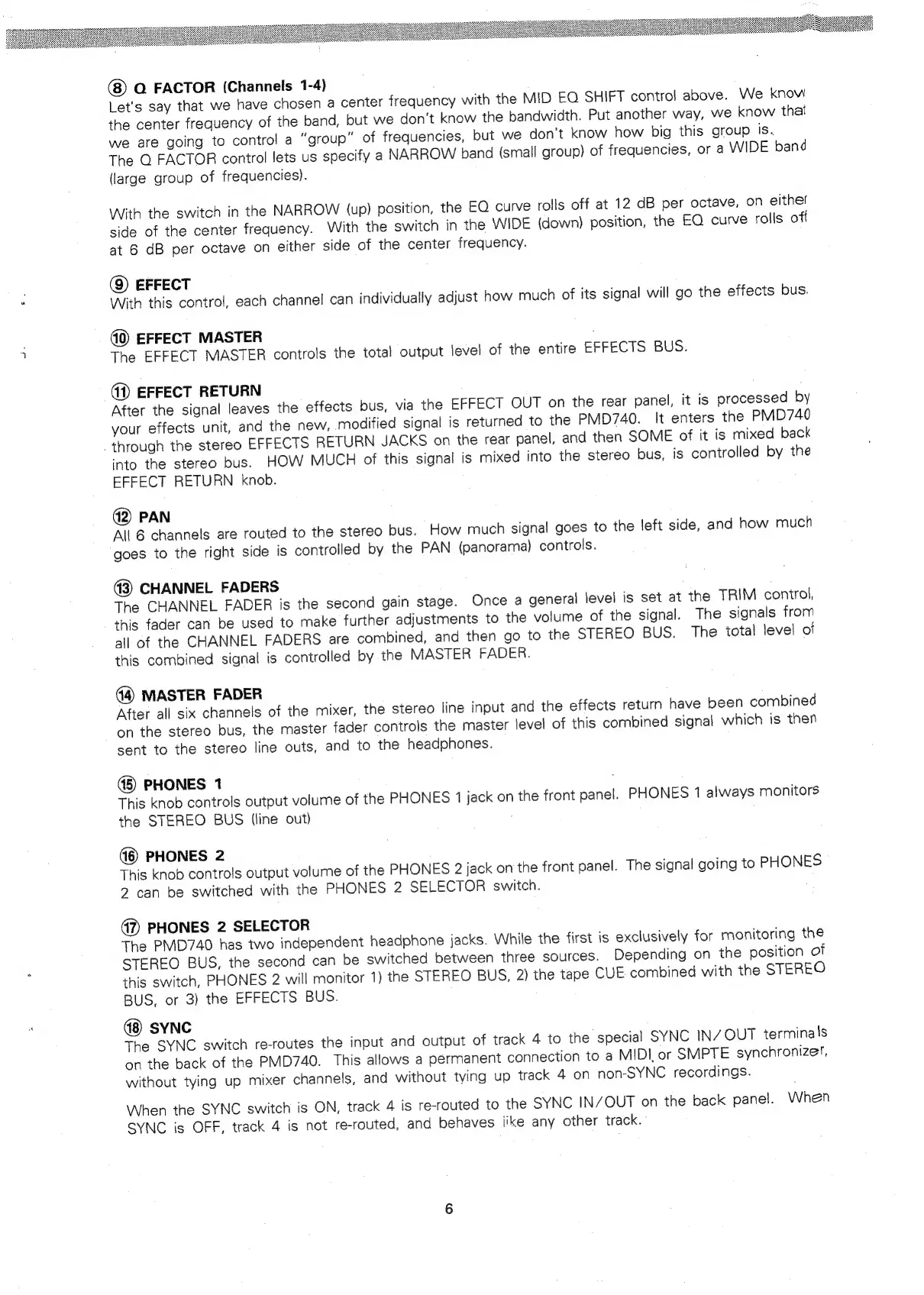

OQ
FACTOR
(Channels
1-4)
;
Let's
say
that
we
have
chosen
4
center
frequency
with
the
MID
EQ
SHIFT
control
above.
We
know
the
center
frequency
of
the
band,
but
we
don't
know
the
bandwidth.
Put
another
way,
we
know
that
we
are
going
to
control
a
“group”
of
frequencies,
but
we
don't
know
how
big
this
group
is.
The
Q
FACTOR
control
lets
us
specify
a
NARROW
band
(small
group)
of
frequencies,
or
a
WIDE
band
(large
group
of
frequencies).
With
the
switch
in
the
NARROW
(up)
position,
the
EQ
curve
rolls
off
at
12
dB
per
octave,
on
either
side
of
the
center
frequency.
With
the
switch
in
the
WIDE
(down)
position,
the
EQ
curve
rolls
off
at
6
dB
per
octave
on
either
side
of
the
center
frequency.
(@) EFFECT
With
this
control,
each
channel
can
individually
adjust
how
much
of
its
signal
will
go
the
effects
bus.
EFFECT
MASTER
The
EFFECT
MASTER
controls
the
total
output
level
of
the
entire
EFFECTS
BUS.
@i)
EFFECT
RETURN
After
the
signal
leaves
the
effects
bus,
via
the
EFFECT
OUT
on
the
rear
panel,
it
is
processed
by
your
effects
unit,
and
the
new,
modified
signal
is
returned
to
the
PMD740.
It
enters
the
PMD740
-through
the
stereo
EFFECTS
RETURN
JACKS
on
the
rear
panel,
and
then
SOME
of
it
is
mixed
back
into
the
stereo
bus.
HOW
MUCH
of
this
signal
is
mixed
into
the
stereo
bus,
is
controlled
by
the
EFFECT
RETURN
knob.
(2 PAN
All
6
channels
are
routed
to
the
stereo
bus.
How
much
signal
goes
to
the
left
side,
and
how
much
goes
to
the
right
side
is
controlled
by
the
PAN
(panorama)
controls.
43)
CHANNEL
FADERS
The
CHANNEL
FADER
is
the
second
gain
stage.
Once
a
general
level
is
set
at
the
TRIM
control,
this
fader
can
be
used
to
make
further
adjustments
to
the
volume
of
the
signal.
The
signals
from
all
of
the
CHANNEL
FADERS
are
combined,
and
then
go
to
the
STEREO
BUS.
The
total
level
of
this
combined
signal
is
controlled
by
the
MASTER
FADER.
MASTER FADER
After
all
six
channels
of
the
mixer,
the
stereo
line
input
and
the
effects
return
have
been
combined
on
the
stereo
bus,
the
master
fader
controls
the
master
level
of
this
combined
signal
which
is
then
sent
to
the
stereo
line
outs,
and
to
the
headphones.
@5)
PHONES
1
This
knob
controls
output
volume
of
the
PHONES
1
jack
on
the
front
panel.
PHONES
1
always
monitors
the
STEREO
BUS
(line
out)
PHONES
2
This
knob
controls
output
volume
of
the
PHONES
2
jack
on
the
front
panel.
The
signal
going
to
PHONES
2
can
be
switched
with
the
PHONES
2
SELECTOR
switch.
47)
PHONES
2
SELECTOR
The
PMD740
has
two
independent
headphone
jacks.
While
the
first
is
exclusively
for
monitoring
the
STEREO
BUS,
the
second
can
be
switched
between
three
sources.
Depending
on
the
position
of
this
switch,
PHONES
2
will
monitor
1)
the
STEREO
BUS,
2)
the
tape
CUE
combined
with
the
STEREO
BUS,
or
3)
the
EFFECTS
BUS.
SYNC
The
SYNC
switch
re-routes
the
input
and
output
of
track
4
to
the
special
SYNC
IN/OUT
terminals
on
the
back
of
the
PMD740.
This
allows
a
permanent
connection
to
a
MIDI.
or
SMPTE
synchronizer,
without
tying
up
mixer
channels,
and
without
tying
up
track
4
on
non-SYNC
recordings.
When
the
SYNC
switch
is
ON,
track
4
is
re-routed
to
the
SYNC
IN/OUT
on
the
back
panel.
When
SYNC
is
OFF,
track
4
is
not
re-routed,
and
behaves
like
any
other
track.
