Marantz SA8003 - Technical Specifications

1
Super Audio CD CD
Audio Characteristics
Analog output
Channels 2channels 2channels
Frequency range 2 Hz — 100 kHz 2 Hz — 20 kHz
Frequency characteristics 2 Hz — 50 kHz (-3 dB) 2 Hz — 20 kHz
Dynamic range
S/N Ratio (A-weighted)
112 dB
110 dB
100 dB
110 dB
THD (1kHz) 0.0020 % 0.0020 %
Wow & Flutter Precision of quartz Precision of quartz
Output level 2.3 V RMS stereo 2.3 V RMS stereo
Digital output
Output level (Cinch JACK) — 0.5 Vp-p (75 Ω)
Output level (Optical) — -19 dBm
Optical Readout System
Laser AlGaAs AlGaAs
Wave length 650 nm 780 nm
Signal format 1-bit DSD 16-bit linear PCM
Sampling frequency 2.8224 MHz 44.1 kHz
POWER SUPPLY
Input Voltage, Frequency [F] ...................................................................AC 100 V 50/60 Hz
[K] ........................................................................AC 220 V 50 Hz
[N] ........................................................................AC 230 V 50 Hz
[U] ........................................................................AC 120 V 60 Hz
Power Consumption ...................................................................................................... 25 W
Power consumption in standby mode .......................................................................... 0.5 W
CABINET, ETC.
Dimensions (Width × Height × Depth) ...............................17 3/8 × 4 5/16 × 13 9/16 inches
(440 × 108.5 × 343.5mm)
Net weight ....................................................................................................17.21 lb (7.8 kg)
Operating temperatures ................................................................................ +5 °C ~ +35 °C
Operating humidity ............................................................................5 ~ 90 % (without dew)
ACCESSORIES
• Remote control unit (RC002SA) ........................................................................................1
Net weight ................................................................................................... 0.2 lb (110 g)
• AAA (R03) Batteries ..........................................................................................................2
• AC Power cord ...................................................................................................................1
• Audio cable ........................................................................................................................1
• Remote connection Cable ................................................................................................1
• User’s Guide ......................................................................................................................1
1. TECHNICAL SPECIFICATIONS
DIMENSIONS
27
NAMES AND
FUNCTIONS
BASIC
CONNECTION
BASIC
OPERATION
ADVANCED
CONNECTIONS
TROUBLESHOOTING
OTHERSOTHERS
ENGLISH
APPLICATION
OPERATION
OTHERS
SPECIFICATIONS & DIMENSIONAL DRAWINGS
POWER SUPPLY
EdlZgHjeean################################ 68&'%K+%=o
EdlZg8dchjbei^dc##################################### '*L
EdlZgXdchjbei^dc^chiVcYWnbdYZ####### %#*L
CABINET, ETC.
9^bZch^dchL^Yi]×=Z^\]i×9Zei]
  ############ &,($-×)*$&+×&(.$&+^cX]Zh
   ))%×&%-#*×()(#*bb
CZilZ^\]i################################### &,#'&aW#,#-`\
DeZgVi^c\iZbeZgVijgZh################# *à8
s (*à8
DeZgVi^c\]jb^Y^in########*s.%l^i]djiYZl
ACCESSORIES
 GZbdiZXdcigdajc^i###############################&
 CZilZ^\]i###########################%#'aW#&&%\
 666G%(7ViiZg^Zh###############################'
 68EdlZgXdgY########################################&
 6jY^dXVWaZ#############################################&
 GZbdiZXdcigdaXdccZXi^c\XdgY##########&
 JhZg
¼
h<j^YZ###########################################&
HeZX^[^XV
i^dch hjW_ZXi id X]Vc\Z l^i]dji eg^dg
cdi^XZ#
4 5/16inch
(108.5mm)
3 5/8inch
(92mm)
11/16inch
(16.5mm)
17 3/8inch (440mm)
2
7
8
13 9/16inch
(343.5mm)
7/16inch (10mm)
1 3/8inch
(33.5mm)
Super Audio CD Audio CD
Audio Characteristics
Analog output
Channels
Frequency range
Frequency characteristics
Dynamic range
S/N Ratio (A-weighted)
THD (1kHz)
wow & flutter
Output level
Unbalanced
Digital output
output level (cinch JACK)
output level (optical)
2channels
2Hz
—
100kHz
2Hz
—
50kHz (-3dB)
112dB
110dB
0.0020%
Precision of quartz
2.3V RMS stereo
—
—
2channels
2Hz
—
20kHz
2Hz
—
20kHz
100dB
1
10dB
0.0020%
Precision of quartz
2.3V RMS stereo
0.5Vp-p (75Ω)
-19dBm
Optical Readout System
Laser
Wave length
AlGaAs
650nm
AlGaAs
780nm
Signal format
Sampling frequency
1-bit DSD
2.8224MHz
16-bit linear PCM
44.1kHz

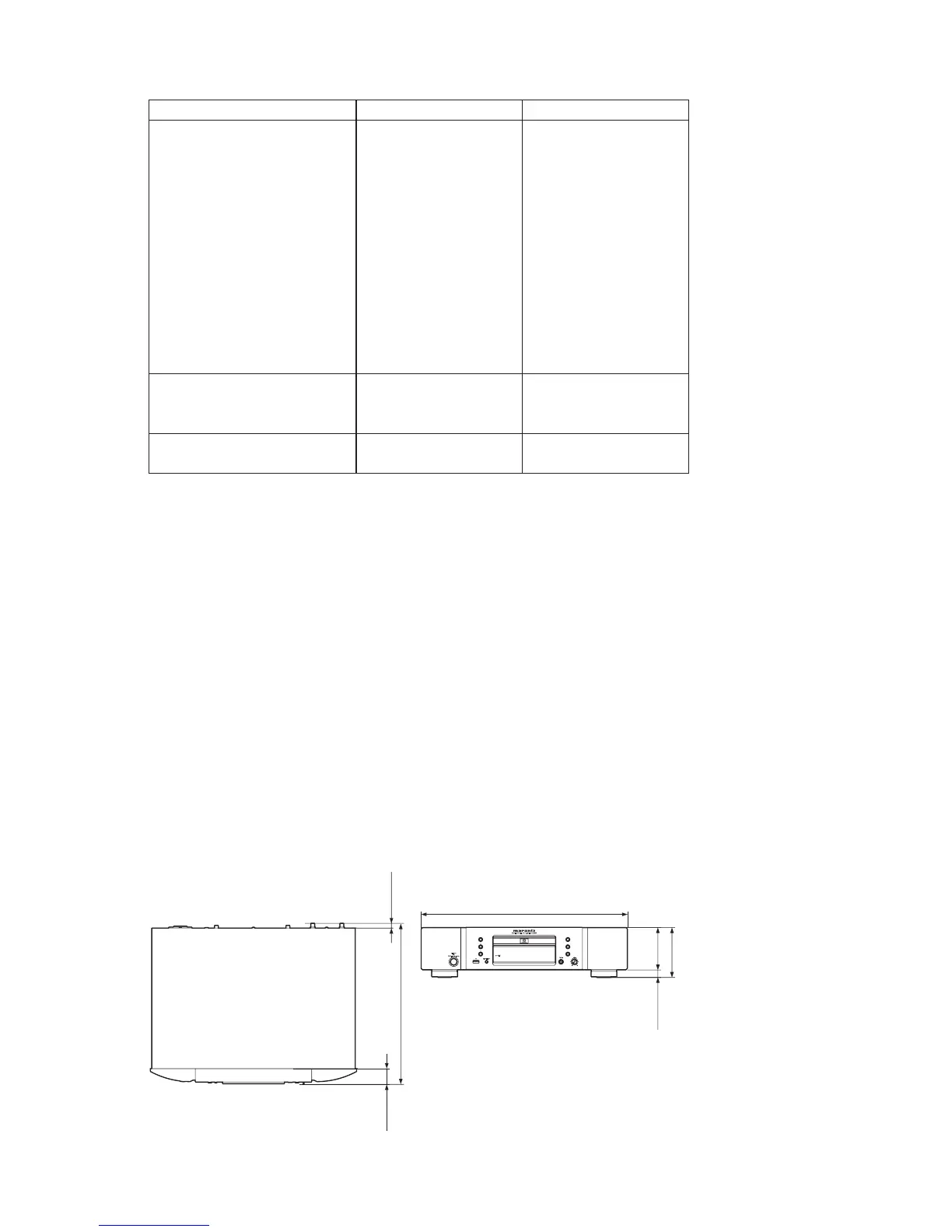

DIMENSIONS (UNIT: INCH (MM))
