Marantz SD1000 - Exploded Views and Parts List; Front Panel Components List

9,
EXPLODED
VIEWS
AND
PARTS
LIST

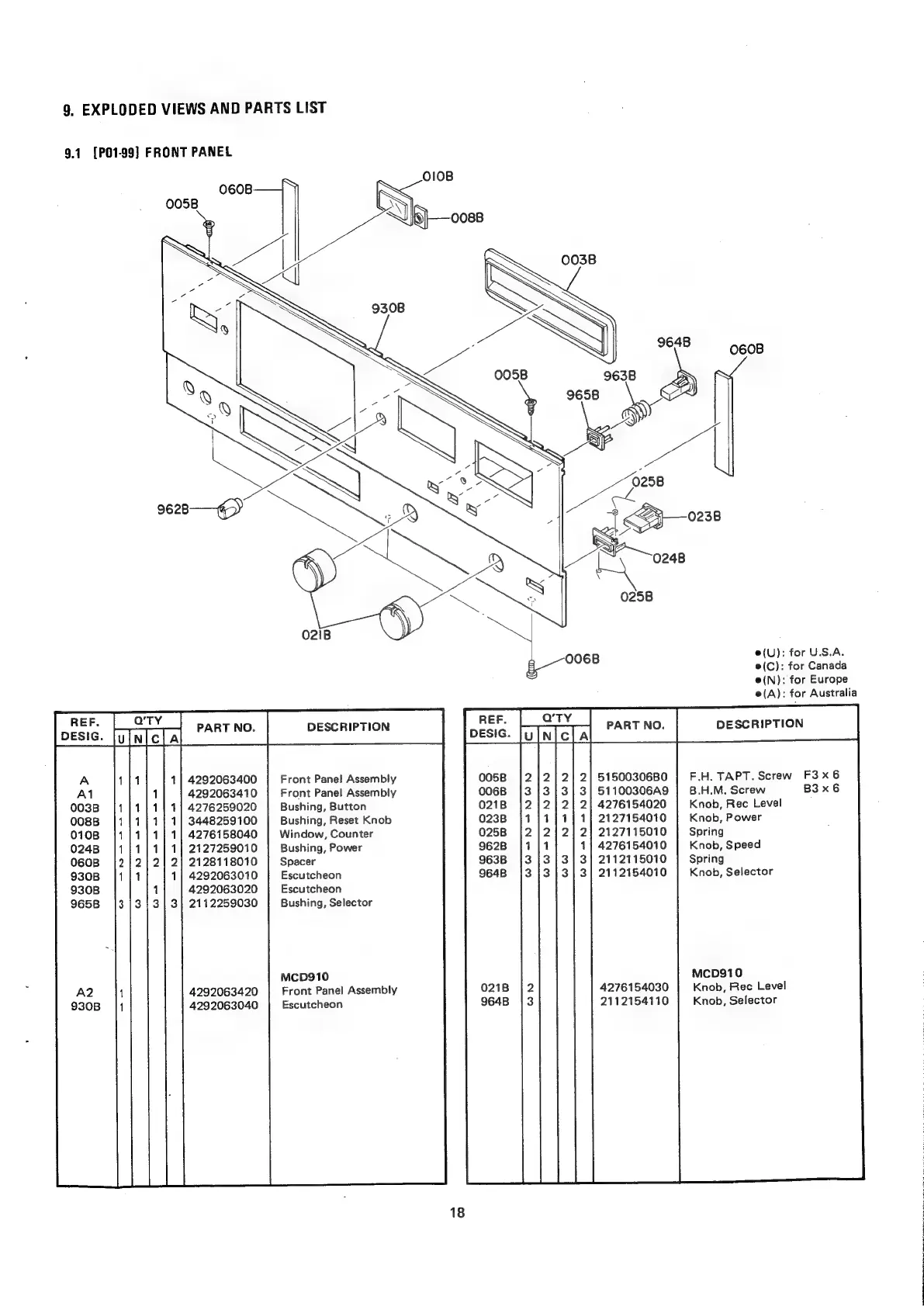

9.1 [P01-99] FRONT PANEL
060B
005B
PART NO.
4292063400
4292063410
4276259020
3448259100
4276158040
2127259010
2128118010
4292063010
4292063020
2112259030
4292063420
4292063040
DESCRIPTION
Front Panel Assembly
Front Panel Assembly
Bushing, Button
Bushing, Reset Knob
Window, Counter
Bushing, Power
Spacer
Escutcheon
Escutcheon
Bushing, Selector
MCD910
Front Panel Assembly
Escutcheon
18
006B
lu[n| cl al
PART NO.
51500306B0
51100306A9
4276154020
2127154010
2127115010
4276154010
2112115010
2112154010
4276154030
2112154110
@(U): for U.S.A.
e(C): for Canada
e(N): for Europe
e(A): for Australia
F.H. TAPT. Screw F3x6
B.H.M, Screw B3 x6
Knob, Rec Level
Knob, Power
Spring
Knob, Speed
Spring
Knob, Selector
McD910
Knob, Rec Level
Knob, Selector
