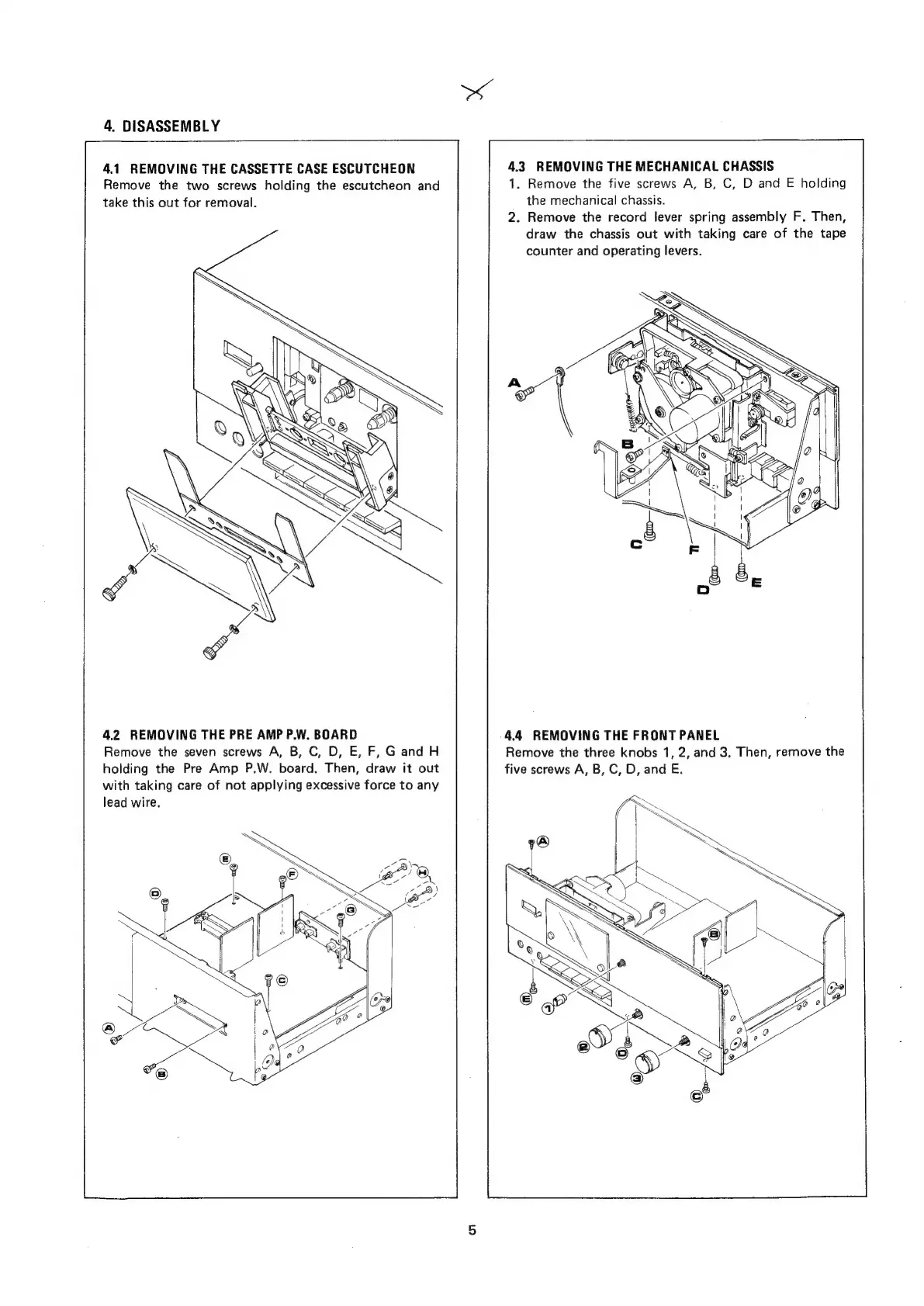

4, DISASSEMBLY
4.3 REMOVING THE MECHANICAL CHASSIS
1. Remove the five screws A, B, C, D and E holding
the mechanical chassis.
2. Remove the record lever spring assembly F. Then,
draw the chassis out with taking care of the tape
counter and operating levers.
4.1 REMOVING THE CASSETTE CASE ESCUTCHEON
Remove the two screws holding the escutcheon and
take this out for removal.
4.4 REMOVING THE FRONT PANEL
Remove the three knobs 1, 2, and 3, Then, remove the
five screws A, B, C, D, and E.
4.2 REMOVING THE PRE AMP P.W. BOARD
Remove the seven screws A, B, C, D, E, F, G and H
holding the Pre Amp P.W. board. Then, draw it out
with taking care of not applying excessive force to any
lead wire.
