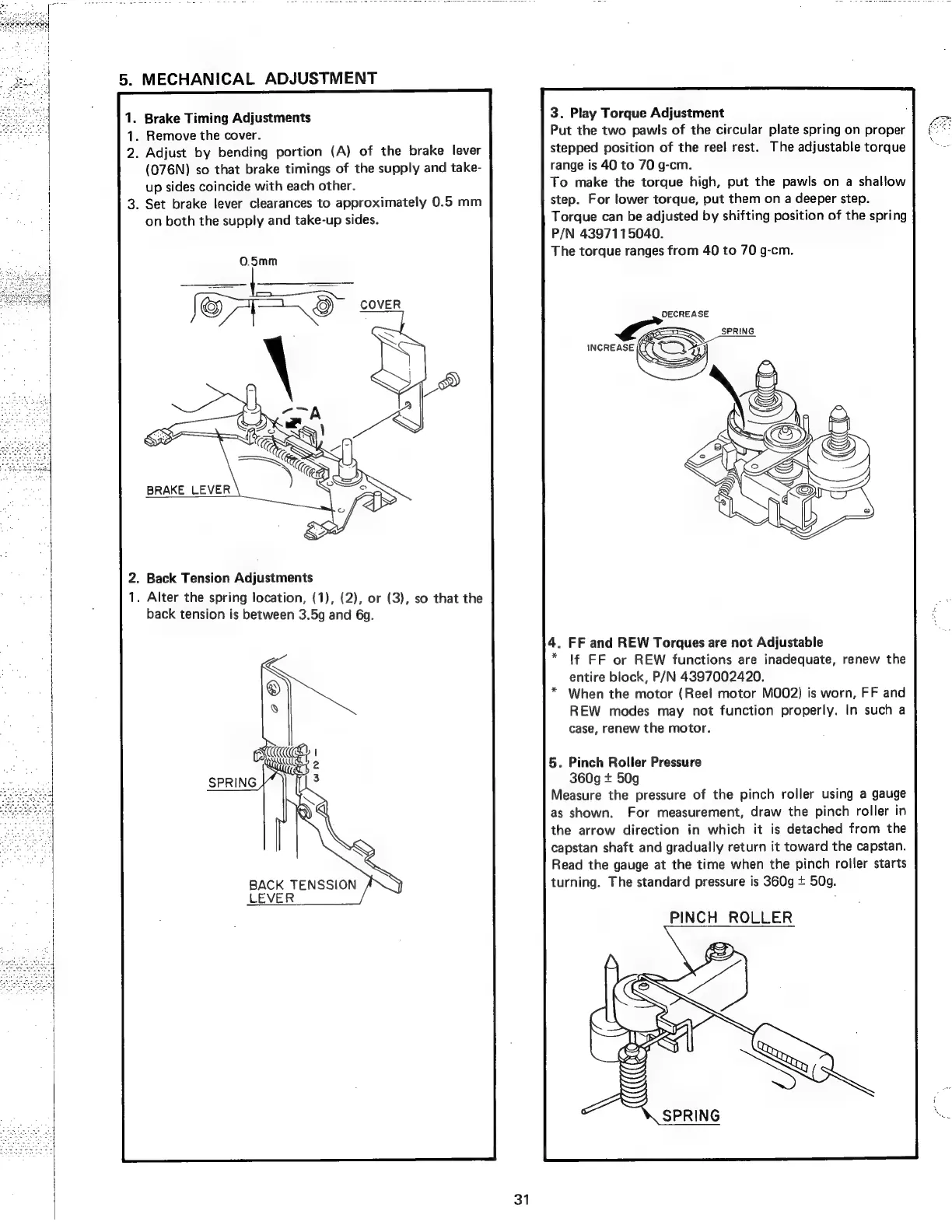

. Brake Timing Adjustments
1. Remove the cover.
. Adjust by bending portion (A) of the brake lever
(O76N)
so
that
brake
timings
of
the
supply
and
take-
up sides coincide with each other.
. Set brake lever clearances to approximately 0.5 mm
on both the supply and take-up sides.
0.5mm
BRAKE LEVER
2. Back Tension Adjustments
1. Alter the spring location, (1), (2), or (3), so that the
back tension is between 3.5g and 6g.
BACK TENSSION
LEVER
31
3. Play Torque Adjustment
Put the two pawls of the circular plate spring on proper
stepped position of the reel rest. The adjustable torque
range is 40 to 70 g-cm.
To make the torque high, put the pawls on a shallow
step. For lower torque, put them on a deeper step.
Torque can be adjusted by shifting position of the spring
P/N 4397115040.
The torque ranges from 40 to 70 g-cm.
DECREASE
GLE SPRING
INCREASE (Y( YY,
. FF and REW Torques are not Adjustable
!f FF or REW functions are inadequate, renew the
entire block, P/N 4397002420.
When the motor (Reel motor MO02) is worn, FF and
REW modes may not function properly. In such a
case, renew the motor.
5. Pinch Roller Pressure
360g + 50g
Measure the pressure of the pinch roller using a gauge
as shown. For measurement, draw the pinch roller in
the arrow direction in which it is detached from the
capstan shaft and gradually return it toward the capstan.
Read the gauge at the time when the pinch roller starts
turning. The standard pressure is 360g + 50g.
PINCH ROLLER
SPRING
