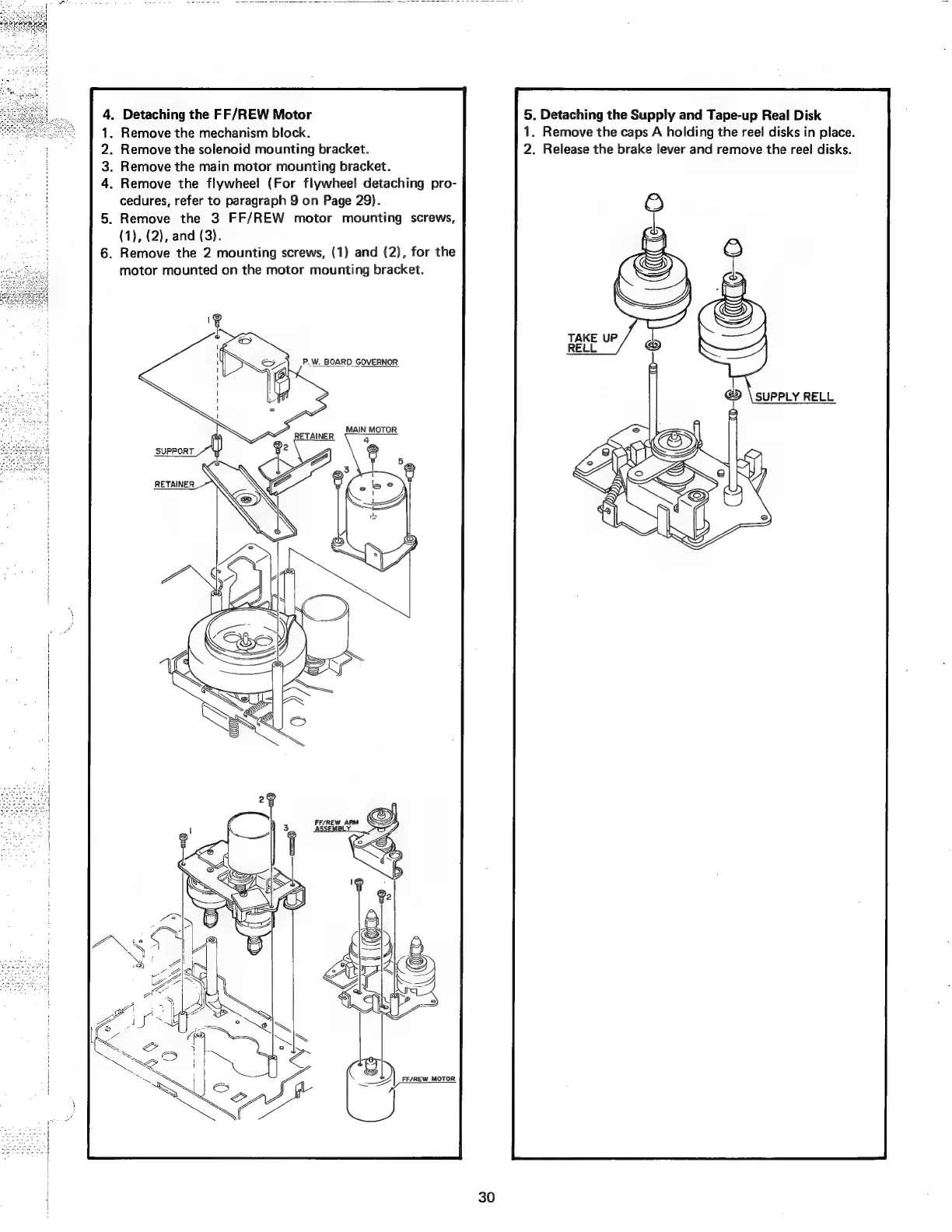

. Detaching the FF/REW Motor 5. Detaching the Supply and Tape-up Real Disk
. Remove the mechanism block. 1. Remove the caps A holding the reel disks in place.
. Remove the solenoid mounting bracket. 2. Release the brake lever and remove the reel disks.
. Remove the main motor mounting bracket.
. Remove the flywheel! (For flywheel detaching pro-
cedures, refer to paragraph 9 on Page 29). Q
. Remove the 3 FF/REW motor mounting screws, \
(1), (2), and (3).
. Remove the 2 mounting screws, (1) and (2), for the
motor mounted on the motor mounting bracket.
FE/REW ARM
ASSEMBLY
