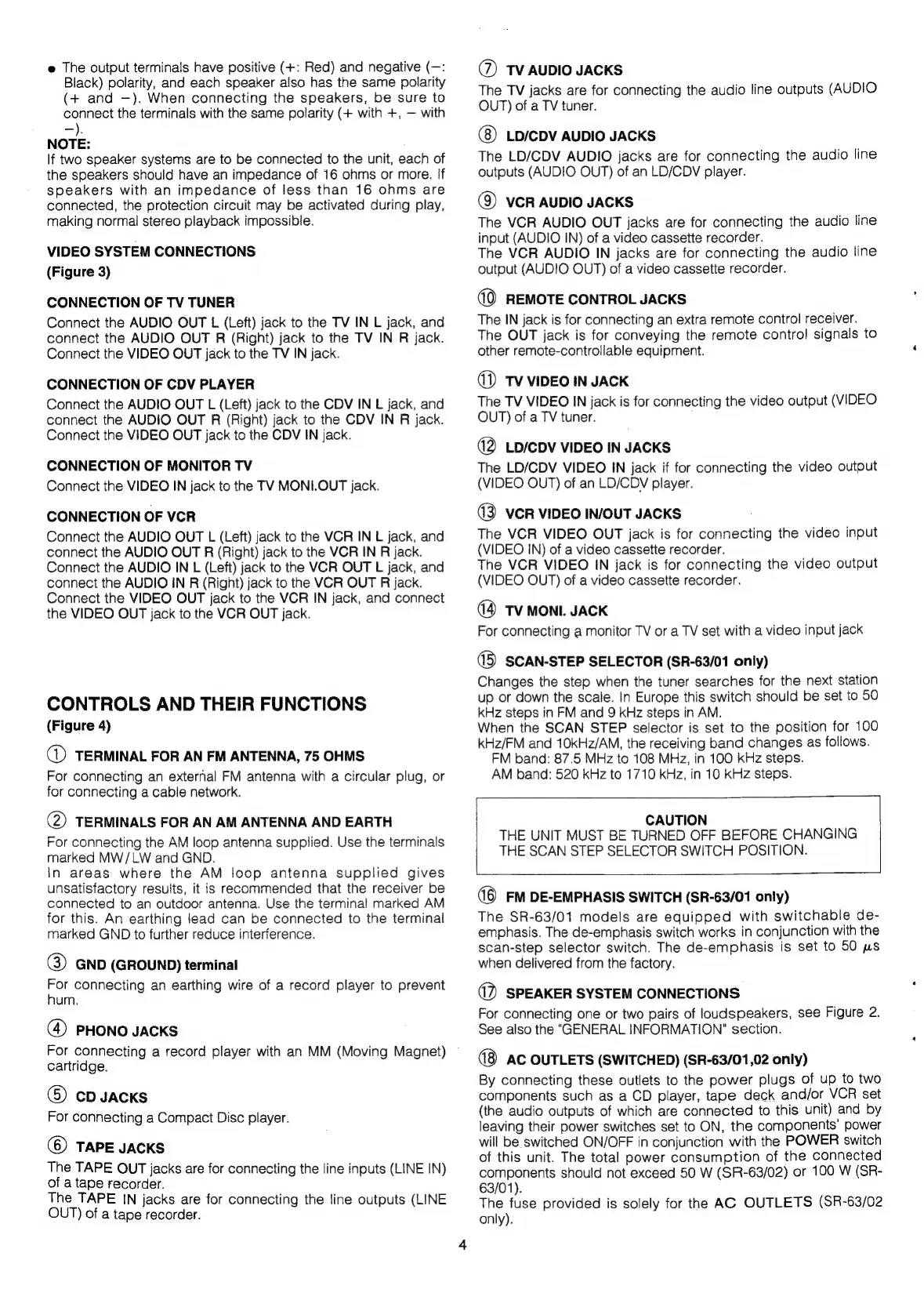

e
The
output
terminals
have
positive
(+:
Red)
and
negative
(—:
Black)
polarity,
and
each
speaker
aiso
has
the
same
polarity
(+
and
—).
When
connecting
the
speakers,
be
sure
to
connect
the
terminals
with
the
same
polarity
(+
with
+,
—
with
NOTE:
If
two
speaker
systems
are
to
be
connected
to
the
unit,
each
of
the
speakers
should
have
an
impedance
of
16
ohms
or
more.
/f
speakers
with
an
impedance
of
less
than
16
ohms
are
connected,
the
protection
circuit
may
be
activated
during
play,
making
normal
stereo
playback
impossible.
VIDEO
SYSTEM
CONNECTIONS
(Figure
3)
CONNECTION
OF
TV
TUNER
Connect
the
AUDIO
OUT
L
(Left)
jack
to
the
TV
IN
L
jack,
and
connect
the
AUDIO
OUT
R
(Right)
jack
to
the
TV
IN
R
jack.
Connect
the
VIDEO
OUT
jack
to
the
TV
IN
jack.
CONNECTION
OF
CDV
PLAYER
Connect
the
AUDIO
OUT
L
(Left)
jack
to
the
CDV
IN
L
jack,
and
connect
the
AUDIO
OUT
R
(Right)
jack
to
the
CDV
IN
R
jack.
Connect
the
VIDEO
OUT
jack
to
the
CDV
IN
jack.
CONNECTION
OF
MONITOR
TV
Connect
the
VIDEO
IN
jack
to
the
TV
MONI.OUT
jack.
CONNECTION
OF
VCR
Connect
the
AUDIO
OUT
L
(Left)
jack
to
the
VCR
IN
L
jack,
and
connect
the
AUDIO
OUT
R
(Right)
jack
to
the
VCR
IN
R
jack.
Connect
the
AUDIO
IN
L
(Left)
jack
to
the
VCR
OUT
L
jack,
and
connect
the
AUDIO
IN
R
(Right)
jack
to
the
VCR
OUT
R
jack.
Connect
the
VIDEO
OUT
jack
to
the
VCR
IN
jack,
and
connect
the
VIDEO
OUT
jack
to
the
VCR
OUT
jack.
CONTROLS
AND
THEIR
FUNCTIONS
(Figure
4)
@)
TERMINAL
FOR
AN
FM
ANTENNA,
75
OHMS
For
connecting
an
external
FM
antenna
with
a
circular
plug,
or
for
connecting
a
cable
network.
@
TERMINALS
FOR
AN
AM
ANTENNA
AND
EARTH
For
connecting
the
AM
loop
antenna
supplied.
Use
the
terminals
marked
MW/LW
and
GND.
In
areas
where
the
AM
loop
antenna
supplied
gives
unsatisfactory
results,
it
is
recommended
that
the
receiver
be
connected
to
an
outdoor
antenna.
Use
the
terminal
marked
AM
for
this.
An
earthing
lead
can
be
connected
to
the
terminal
marked
GND
to
further
reduce
interference.
(3)
GND
(GROUND)
terminal
For
connecting
an
earthing
wire
of
a
record
player
to
prevent
hum.
(4)
PHONO
JACKS
For
connecting
a
record
player
with
an
MM
(Moving
Magnet)
cartridge.
(©)
ep
sacks
For
connecting
a
Compact
Disc
player.
©
TAPE
JACKS
The
TAPE
QUT
jacks
are
for
connecting
the
line
inputs
(LINE
IN)
of
a
tape
recorder.
The
TAPE
IN
jacks
are
for
connecting
the
line
outputs
(LINE
OUT)
of
a
tape
recorder.
@)
TV
AUDIO
JACKS
The
TV
jacks
are
for
connecting
the
audio
line
outputs
(AUDIO
OUT)
of
a
TV
tuner.
LD/CDV
AUDIO
JACKS
The
LD/CDV
AUDIO
jacks
are
for
connecting
the
audio
line
outputs
(AUDIO
OUT)
of
an
LD/CDV
player.
(@)
VCR
AUDIO
JACKS
The
VCR
AUDIO
OUT
jacks
are
for
connecting
the
audio
line
input
(AUDIO
IN)
of
a
video
cassette
recorder.
The
VCR
AUDIO
IN
jacks
are
for
connecting
the
audio
line
output
(AUDIO
OUT)
of
a
video
cassette
recorder.
REMOTE
CONTROL
JACKS
The
IN
jack
is
for
connecting
an
extra
remote
control
receiver.
The
OUT
jack
is
for
conveying
the
remote
control
signals
to
other
remote-controllable
equipment.
@)
TV
VIDEO
IN
JACK
The
TV
VIDEO
IN
jack
is
for
connecting
the
video
output
(VIDEO
OUT)
of
a
TV
tuner.
q
LD/CDV
VIDEO
IN
JACKS
The
LD/CDV
VIDEO
IN
jack
if
for
connecting
the
video
output
(VIDEO
OUT)
of
an
LD/CDV
player.
@
VCR
VIDEO
IN/OUT
JACKS
The
VCR
VIDEO
OUT
jack
is
for
connecting
the
video
input
(VIDEO
IN)
of
a
video
cassette
recorder.
The
VCR
VIDEO
IN
jack
is
for
connecting
the
video
output
(VIDEO
OUT)
of
a
video
cassette
recorder.
TV
MONI.
JACK
For
connecting
a
monitor
TV
or
a
TV
set
with
a
video
input
jack
®
SCAN-STEP
SELECTOR
(SR-63/01
only)
Changes
the
step
when
the
tuner
searches
for
the
next
station
up
or
down
the
scale.
In
Europe
this
switch
should
be
set
to
50
kHz
steps
in
FM
and
9
kHz
steps
in
AM.
When
the
SCAN
STEP
selector
is
set
to
the
position
for
100
kHz/FM
and
10kHz/AM,
the
receiving
band
changes
as
follows.
FM
band:
87.5
MHz
to
108
MHz,
in
100
kHz
steps.
AM
band:
520
kHz
to
1710
kHz,
in
10
KHz
steps.
CAUTION
THE
UNIT
MUST
BE
TURNED
OFF
BEFORE
CHANGING
THE
SCAN
STEP
SELECTOR
SWITCH
POSITION.
FM
DE-EMPHASIS
SWITCH
(SR-63/01
only)
The
SR-63/01
models
are
equipped
with
switchable
de-
emphasis.
The
de-emphasis
switch
works
in
conjunction
with
the
scan-step
selector
switch.
The
de-emphasis
is
set
to
50
ws
when
delivered
from
the
factory.
W)
SPEAKER
SYSTEM
CONNECTIONS
For
connecting
one
or
two
pairs
of
loudspeakers,
see
Figure
2.
See
also
the
"GENERAL
INFORMATION"
section.
AC
OUTLETS
(SWITCHED)
(SR-63/01,02
only)
By
connecting
these
outlets
to
the
power
plugs
of
up
to
two
components
such
as
a
CD
player,
tape
deck
and/or
VCR
set
(the
audio
outputs
of
which
are
connected
to
this
unit)
and
by
leaving
their
power
switches
set
to
ON,
the
components’
power
will
be
switched
ON/OFF
in
conjunction
with
the
POWER
switch
of
this
unit.
The
total
power
consumption
of
the
connected
components
should
not
exceed
50
W
(SR-63/02)
or
100
W
(SR-
63/01).
The
fuse
provided
is
solely
for
the
AC
OUTLETS
(SR-63/02
only).
