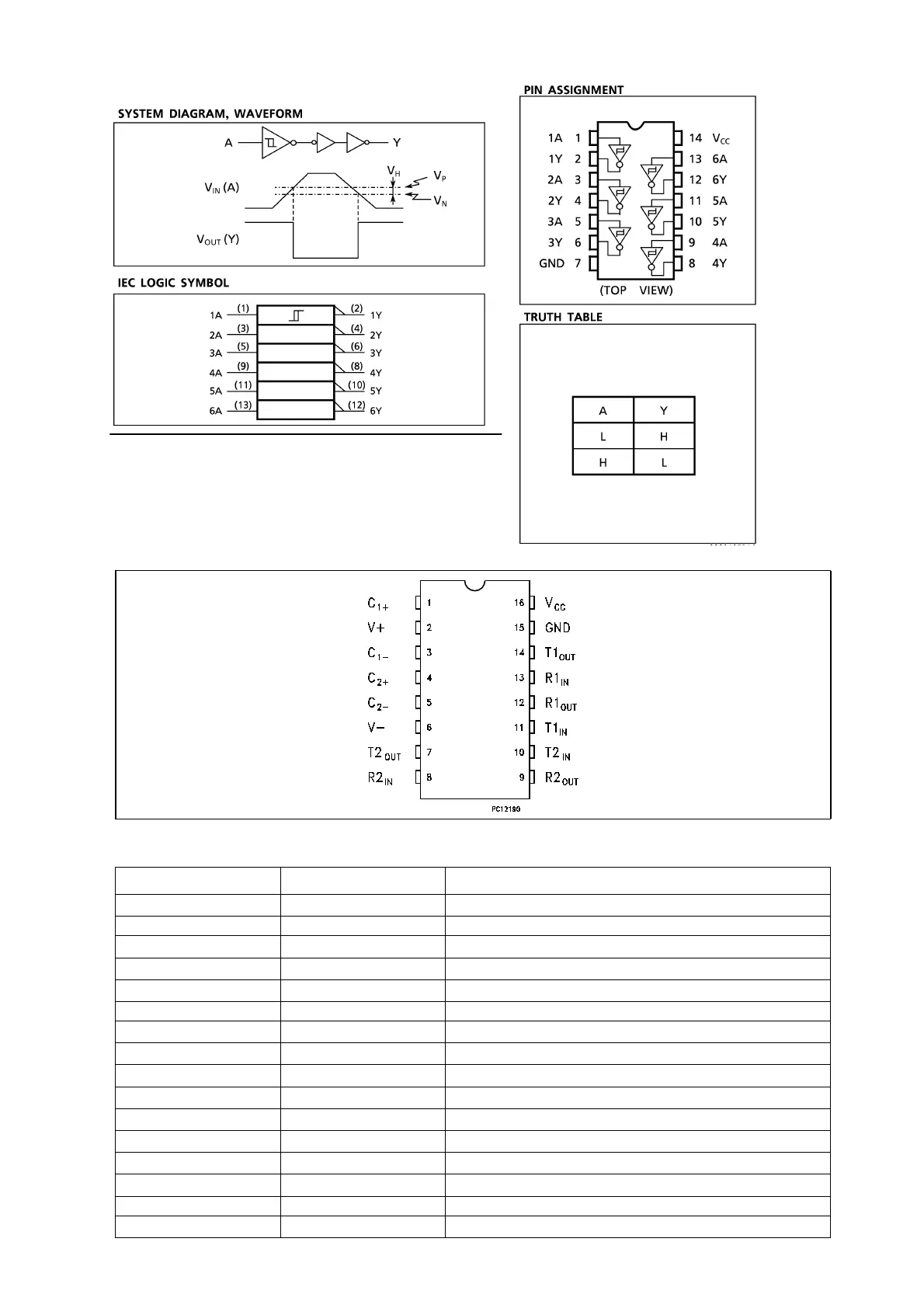

PIN CONFIGURATION
PIN DESCRIPTION
PlN N° SYMBOL NAME AND FUNCTION
1
C
1
+ Positive Terminal for the first Charge Pump Capacitor
2 V+ Doubled Voltage Terminal
3
C
1
- Negative Terminal for the first Charge Pump Capacitor
4
C
2
+ Positive Terminal for the second Charge Pump Capacitor
5
C
2
- Negative Terminal for the second Charge Pump Capacitor
6 V- Inverted Voltage Terminal
7
T2
OUT
Second Transmitter Output Voltage
8
R2
IN
Second Receiver Input Voltage
9
R2
OUT
Second Receiver Output Voltage
10
T2
IN
Second Transmitter Input Voltage
11
T1
IN
First Transmitter Input Voltage
12
R1
OUT
First Receiver Output Voltage
13
R1
IN
First Receiver Input Voltage
14
T1
OUT
First Transmitter Output Voltage
15 GND Ground
16
V
CC
Supply Voltage
IC83 : ST202EBW
IC82, IC83 : TC74VHCT14AFT
