92

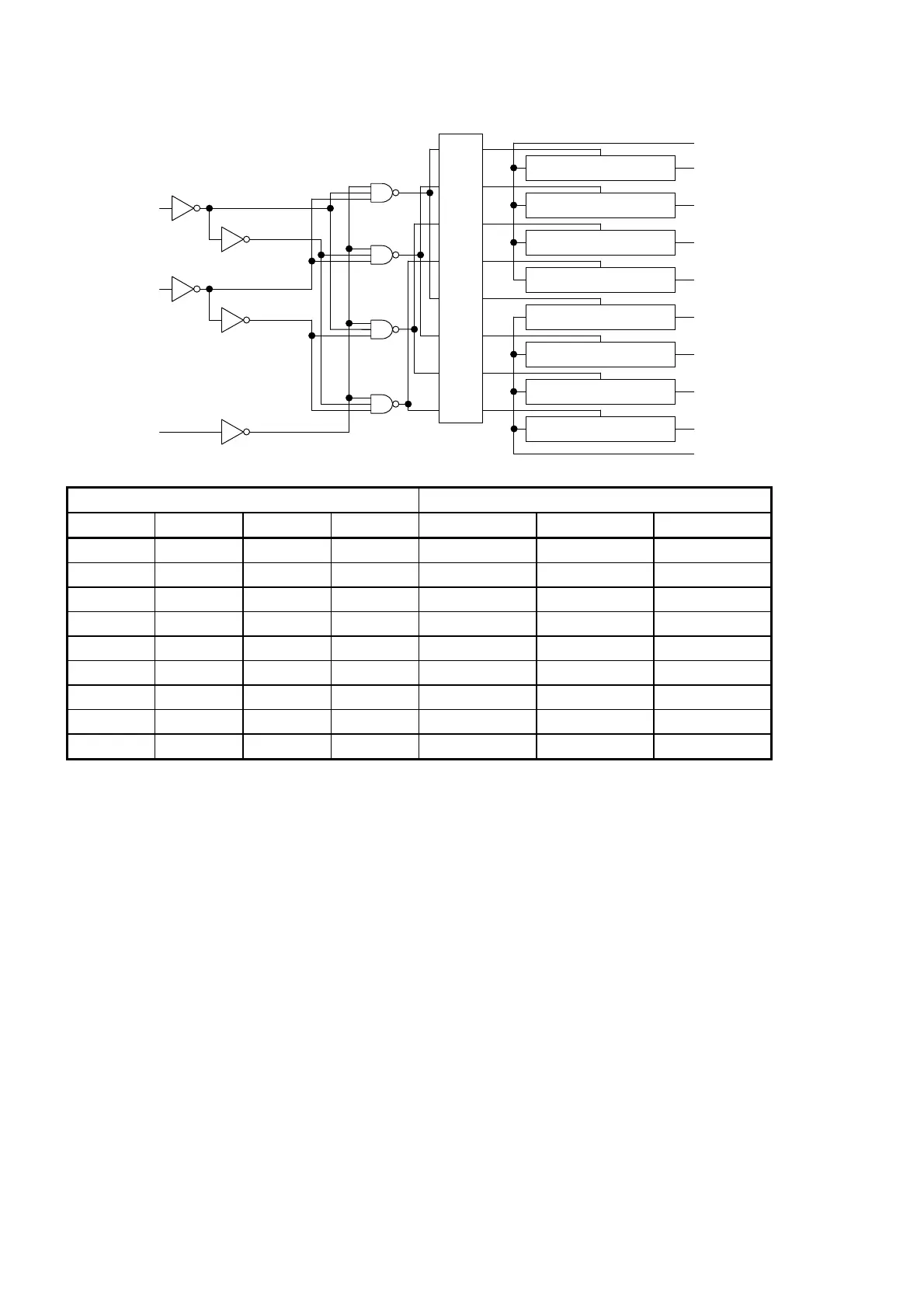

Control Inputs “ON” Channel
Inhibit C* B A MZ4051FK MZ4052FK MZ4053FK
L L L L 0 0X, 0Y 0X, 0Y, 0Z
L L L H 1 1X, 1Y 1X, 0Y, 0Z
L L H L 2 2X, 2Y 0X, 1Y, 0Z
L L H H 3 3X, 3Y 1X, 1Y, 0Z
L H L L 4 ¾ 0X, 0Y, 1Z
L H L H 5 ¾ 1X, 0Y, 1Z
L H H L 6 ¾ 0X, 1Y, 1Z
L H H H 7 ¾ 1X, 1Y, 1Z
H X X X None None None
X: Don't care, *: Except MZ4052FK
Logic Level Converter
C
OUT IN
A
B
INH
X
-COM
0X
1X
2X
3X
0Y
1Y
2Y
3Y
C
OUT IN
Y-COM
IC95 : TC7MZ4052FK
IC96 : TC7MZ4052FK
IC98 : SiI9033CTU
General Description
The SiI 9033 is a third generation PanelLink Cinema HDMI Receiver that is compatible with the SiI 9031 HDMI
Receiver. It is compliant with the latest HDMI 1.2 (High Definition Multimedia Interface) Specification. Audio/Video
Receivers and Media Receiver set-top boxes can now provide the highest quality protected digital audio/video
over a single cable. Backward compatibility with DVI 1.0 allows HDMI systems to connect to existing DVI 1.0
hosts (such as HD set-top boxes and PCs).
The SiI 9033 is capable of receiving and outputting up to eight channels of uncompressed digital audio at 192 kHz
and 2-channel digital audio up to 192 KHz. An industry-standard I
2
S port allows direct connection to low-cost
audio DACs at up to 192 kHz. An S/PDIF port supports up to 192 kHz audio. The SiI 9033 supports SACD (Super
Audio Compact Disc) and provides DSD (Direct Stream Digital) ports that support 44.1 and 88.2 kHz one-bit
audio.
The SiI 9033 enables Audio/Video Receivers with full HDCP Repeater support to receive, decrypt, and output
high quality video and audio to an Audio DSP and HDMI Transmitter. The SiI 9033 also comes pre-programmed
with HDCP keys, which simplies the manufacturing process and lowers costs, while providing the highest level of
HDCP key security.
Silicon Image’s PanelLink Cinema Receivers use the latest generation of PanelLink TMDS core technology.
These PanelLink cores pass all HDMI compliancy tests.
