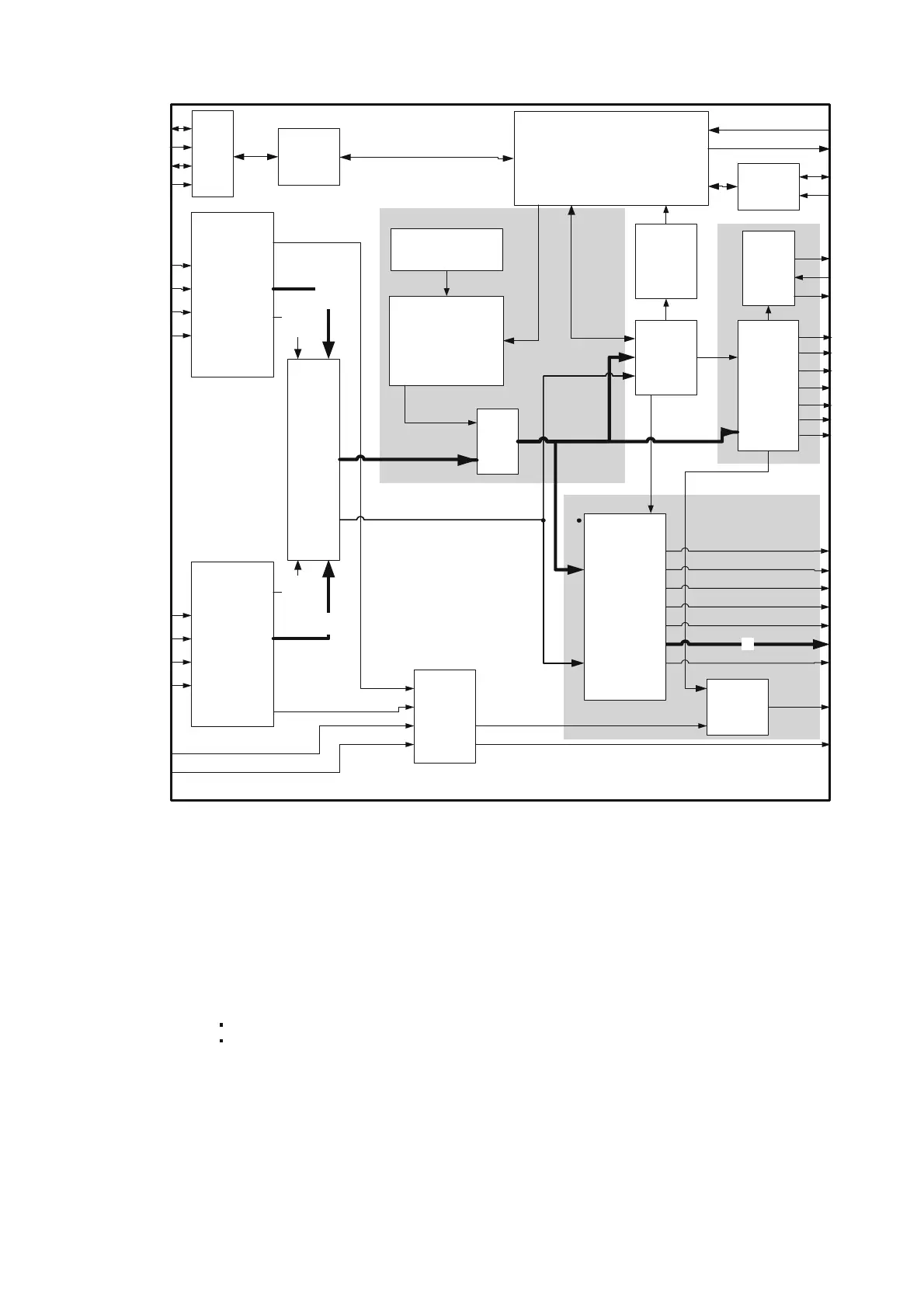

IC98 : SiI9033CTU
HDCP &
Repeater
Decryption
Engine
Registers
----------------
Configuration
Logic Block
XOR
Mask
I
2
C
Slave
24
DE
Q[23:0]
R1XC±
R1X0±
R1X1±
R1X2±
INT
RESET#
SPDIF
MCLKOUT
PanelLink
TMDS
TM
Digital
Core
MCLK
Gen
HSYNC
VSYNC
ODCK
SD[3:0]
SCK
WS
I
2
C
Slave
CSDA
CSCL
R0XC±
R0X0±
R0X1±
R0X2±
PanelLink
TMDS
TM
Digital
Core
Port
MUX
24-Bit
Data
DSDA1
DSCL1
Port
MUX
DSDA0
DSCL0
HDCP
Embedded Keys
24-Bit
Data
SCDT
XTALIN
XTALOUT
Control Signals
Video Color
Space
Converter
Up/Down
Sampling
24-Bit Encrypted
Pixel Data
MUTEOUT
Audio
Data
Decode
HDMI
Mode
Control
Aux
Data
24-Bit
Decrypted
Pixel Data
CLK48B
HS,VS,
DE
HS,VS,
DE
Auto A/V
Exception
Handling
R0PWR5V
R1PWR5V
Port
Detect
EVNODD
DL[3:0]
DR[3:0]
DCLK
Features
• Dual-Input HDMI 1.2, HDCP 1.1, and DVI 1.0 compliant Receiver
• Integrated PanelLink TMDS
®
core.
• Digital video interface supports video processors:
o 24-bit RGB / YCbCr 4:4:4
o 16/20/24-bit YCbCr 4:2:2
o 8/10/12-bit YCbCr 4:2:2 (ITU BT.656)
o 12-bit DMO (Digital Multimedia Output) RGB/YCbCr 4:4:4 (clocked with rising & falling edges)
o Color Space Conversion for both RGB-to-YCbCr and YCbCr-to-RGB (both 601 and 709)
o Auto video mode configuration simplifies system firmware design
• Digital audio interface supports high-end audio systems:
o One programmable I
2
S output for connection to low-cost DACs at 32-192kHz
Two channel uncompressed audio up to 192 Khz
Eight channel uncompressed audio up to 192 KHz
o S/PDIF output supports PCM, Dolby Digital, DTS digital audio transmission (32-192 kHz Fs)
using IEC 60958 and IEC 61937
o One-bit audio - DSD and SACD (44.1 and 88.2 kHz)
o Auto audio error detection with programmable soft mute
• Integrated HDCP decryption engine for receiving protected audio and video content:
o Pre-programmed HDCP keys provide highest level of key security and simplify manufacturing
o Full support for HDCP Repeaters (up to 16 attached downstream devices)
• HDCP Built in Self Test (BIST) lowers cost to test HDCP operation
• Pin compatible with SiI 9031
• Software compatible with SiI 9031
• Flexible power management
• 144-pin TQFP package
