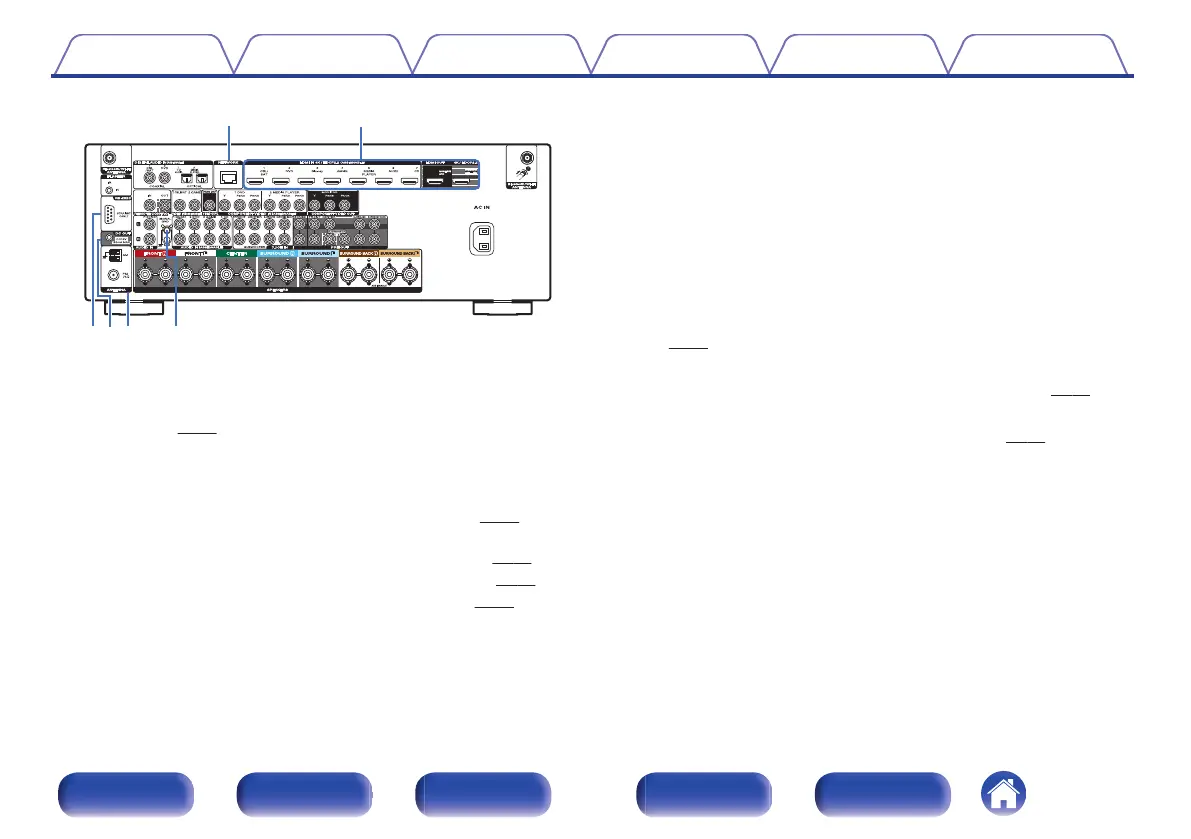

F
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 65)
G
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v
p. 53)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 54)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 57)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 58)
H
RS-232C connector
Used to connect home automation controller devices fitted with
RS-232C connectors. Consult the owner’s manual of the home
automation controller for more information about serial control of this
unit.
Perform the operation below beforehand.
A
Turn on the power of this unit.
B
Turn off the power of this unit from the external controller.
C
Check that the unit is in the standby mode.
I
DC OUT jack
Used to connect devices equipped with the trigger function.
(v
p. 68)
J
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v
p. 63)
K
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 60)
