Marantz SR5014 User Manual

3
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the SR5014.

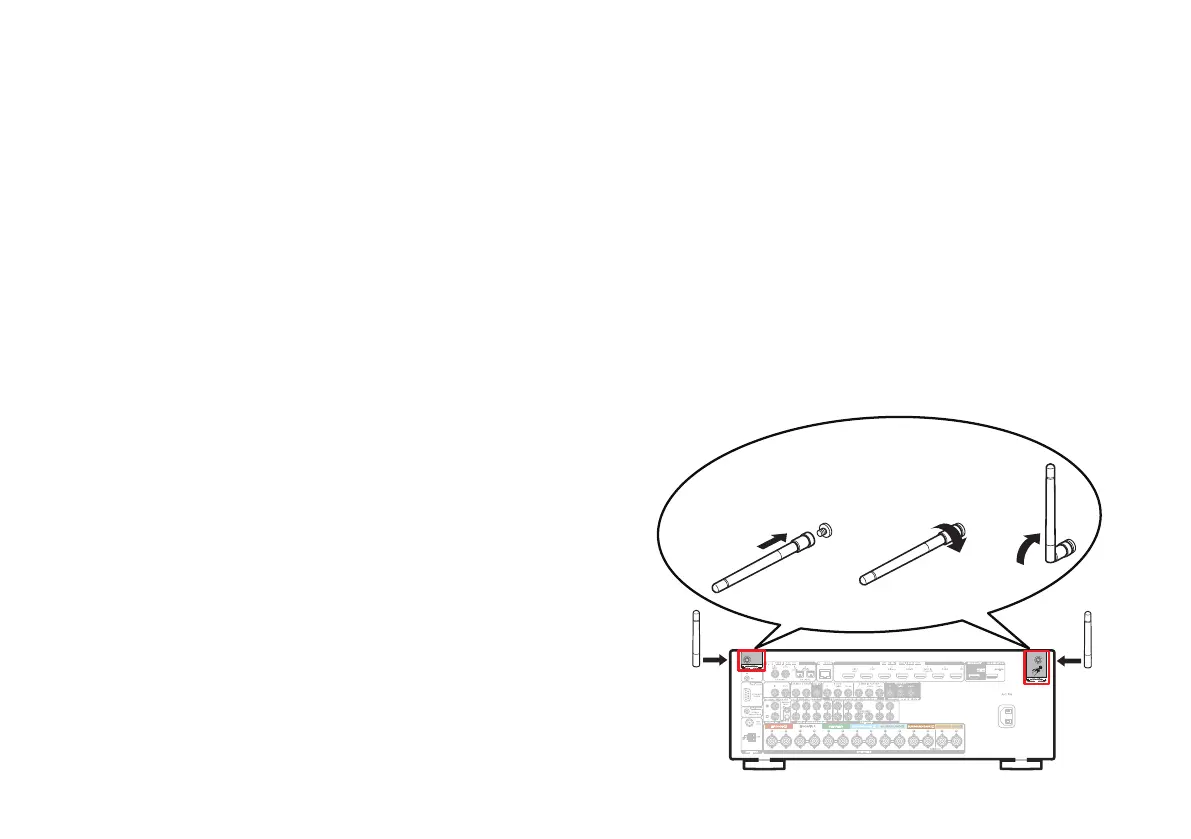

n Connecting the external antennas for
Bluetooth/Wireless connectivity
For each of the two antennas:
q Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
w Turn the antenna clockwise until it is fully connected. Do
not over tighten.
e Rotate the antenna upwards for the best possible
reception.
q w e
1. SR5014N_QSG_ENG_00A_190515.indd 3 2019/05/24 15:12:29
PrintingColor:Black

Marantz SR5014 Specifications

General

Channels	7.2
Power Output (8 ohms, 20 Hz - 20 kHz, 0.08% THD)	100W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	140W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)	180W
70% Guarantee	Yes
HDMI Inputs	8
HDMI Outputs	2
HDMI 2.1 Support	No
HDR Support	HDR10, HLG, Dolby Vision
eARC Support	Yes
Auto Speaker Calibration	Audyssey MultEQ XT
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	No
Wi-Fi	Yes
Bluetooth	Yes
AirPlay 2	Yes
HEOS Multi-room	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Phono Input	Yes
Zone Output	Zone 2
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Inputs	8 HDMI, 1 Phono
Outputs	2 HDMI, 1 Zone 2
