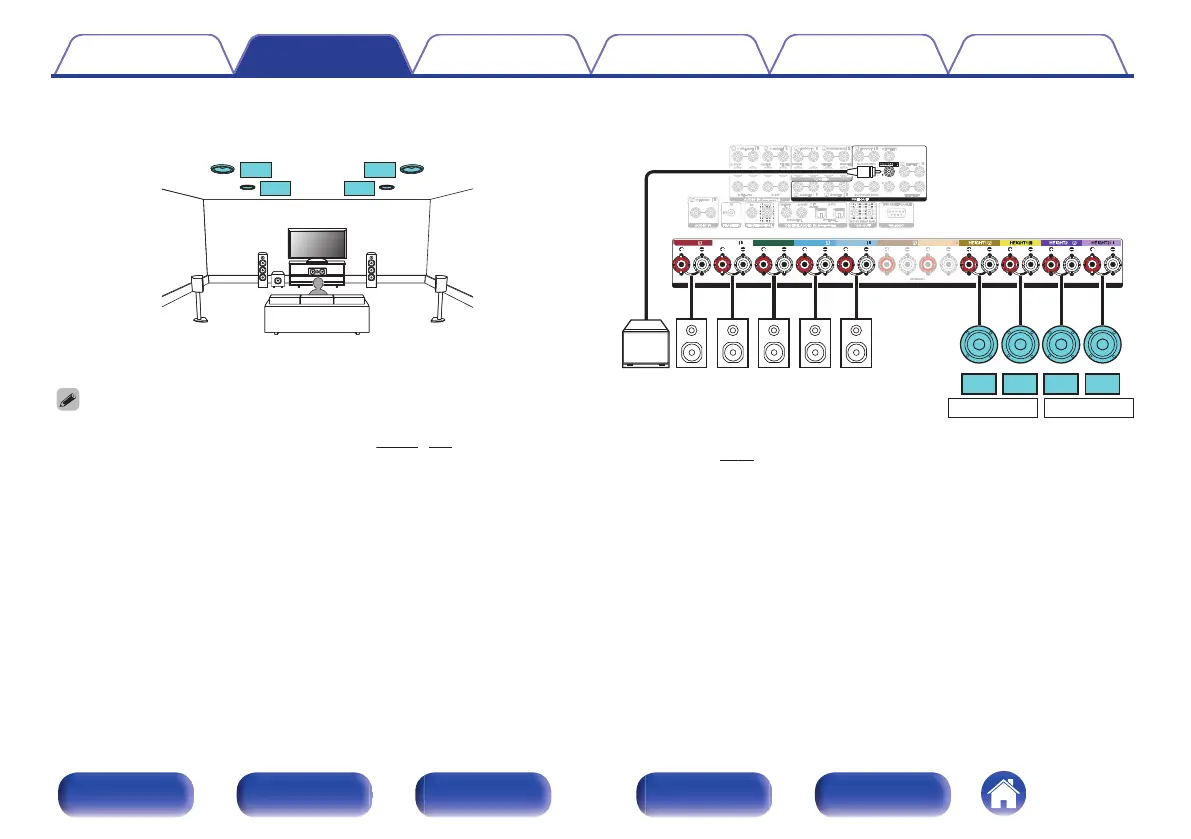

Example connection when using two sets of ceiling speakers
.
C
FL FR
SW
SL SR
TRL TRR
TFL TFR
0
Set “Floor” - “Layout” to “5ch” or set “5ch & SB” and “Height Sp” to “4ch” in the
menu when connecting in this configuration. (v
p. 213, 214)
.
ASSIGNABLE ASSIGNABLE
SPEAKERS
CENTER SURROUND SURROUNDFRONTFRONT
SURROUND BACKSURROUND BACK
TRR TRLTFR TFL
HEIGHT 1
z
HEIGHT 2
z
SW
FR FL C SR SL
z
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
settings. (v
p. 61)
