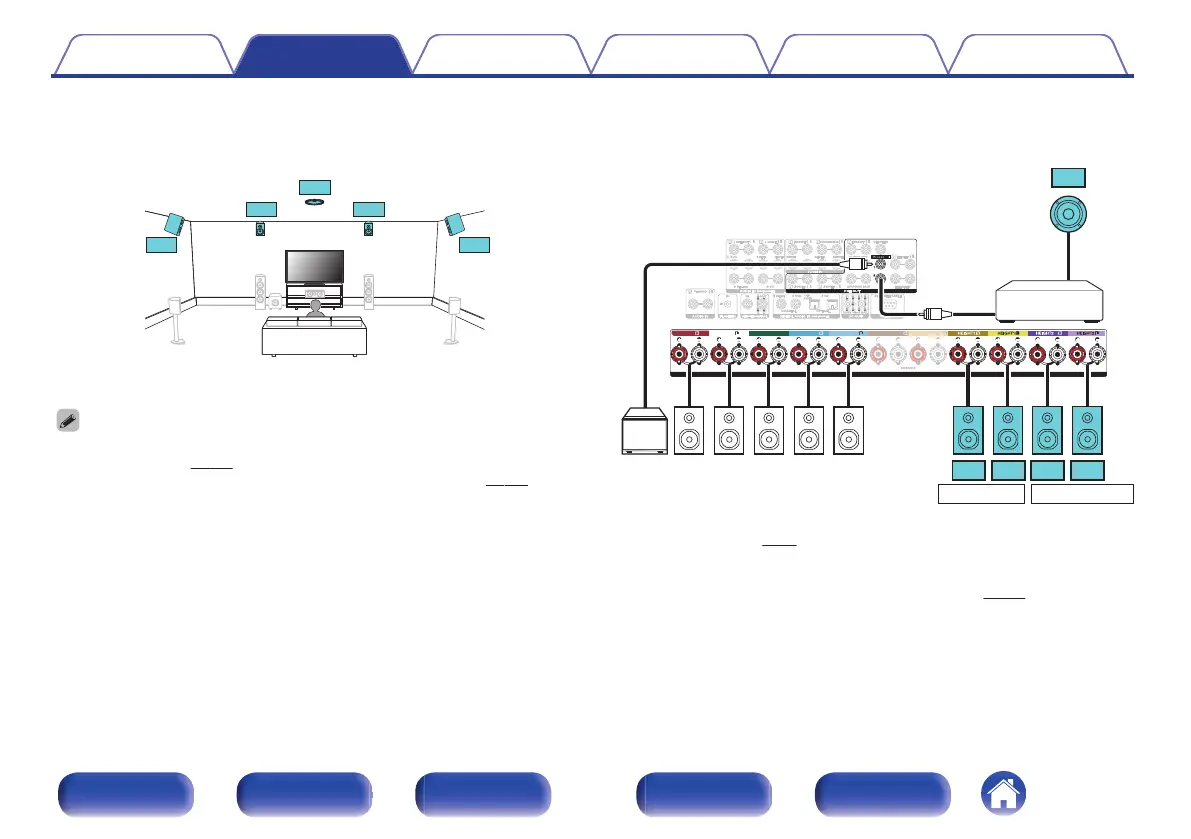

Example connection for the Auro-3D 10.1-channel system
This speaker configuration is optimized for Auro-3D playback.
.
FL FR
SW
SL SR
C
FHL FHR
SHL SHR
TS
0
Set “Height” - “Height Sp” to “5ch” in the menu when connecting in this
configuration. (v
p. 214)
Next, set “Height” - “Layout” to “Front Height & Surr. Height”. (v
p. 215)
.
ASSIGNABLE ASSIGNABLE
SPEAKERS
CENTER SURROUND SURROUNDFRONTFRONT
SURROUND BACKSURROUND BACK
Power amplifier
SHR SHLFHR FHL
SW
FR FL C SR SL
HEIGHT 1
z
1
HEIGHT 2
z
1
z
3
TS
TS
z
2
z1
You can change the combination of the HEIGHT1 and HEIGHT2 channels in
the settings. (v p. 67)
z2
The Top Surround speaker can be connected to the SURROUND BACK L
speaker terminal instead of the SUBWOOFER 2 PRE OUT connector. Set
“Top Surr. Out” to “SURR. BACK L” in the menu. (v
p. 217)
z3
For the best Auro-3D experience Surround Height speakers are
recommended, however you may substitute Rear Height speakers from a
Dolby Atmos speaker setup in place of Surround Height speakers.
