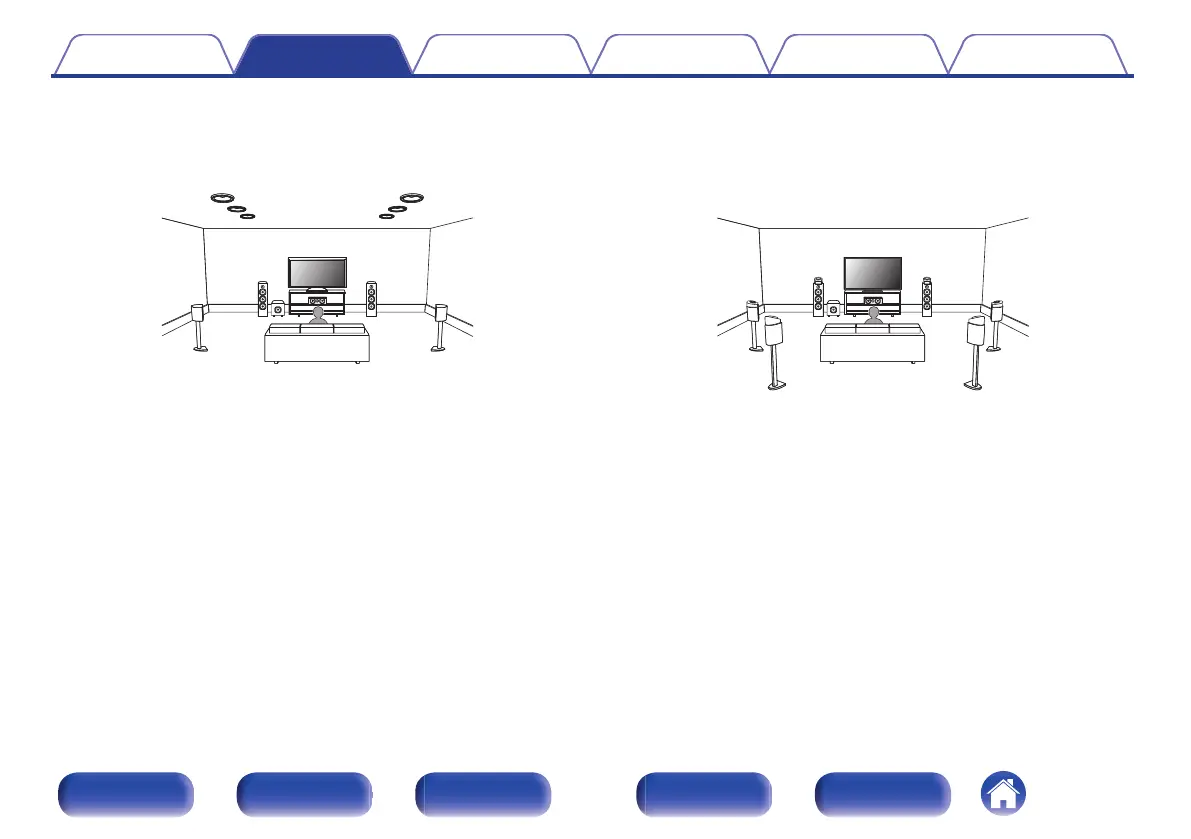

Ceiling speaker layout example
Combination of 5.1-channel layout and top front/top middle/top rear
speakers.
.
TRR
TRL
TFR
TFL
TMR
TML
C
FL FR
SW
SL SR
n
Dolby Atmos Enabled speaker layout example
Combination of 7.1-channel layout and front Dolby/surround Dolby/
back Dolby speakers.
.
C
FL FR
FDL FDR
SW
SL SR
SDL SDR
SBL
SBR
BDL BDR
