Bi-amp connection
o

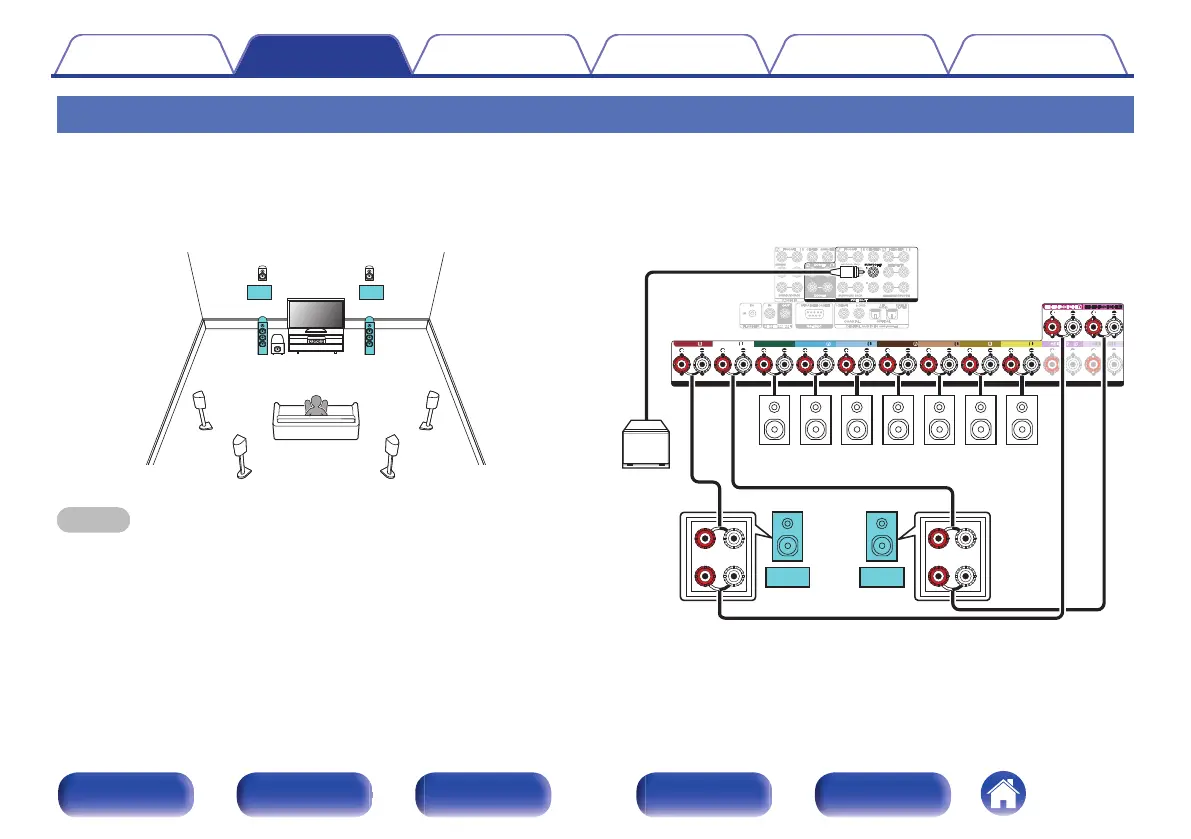

9.1-channel playback (bi-amp connection of front speakers)
This system plays back 9.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate
amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned
without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.
.
FHL
SW
C
SL
SBL
FHR
SR
SBR
FL
(Bi-Amp)
FR
(Bi-Amp)
NOTE
0
When making bi-amp connections, be sure to remove the short-circuiting plate or
wire between the speaker’s woofer and tweeter terminals.
.
ASSIGNABLE
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1
ASSIGNABLE
SURROUND BACK SURROUND BACK
ASSIGNABLE
ASSIGNABLE
SPEAKERS
ASSIGNABLE
wqwq
(R) (L)
SW
SBR SBL FHR FHL
CSRSL
FLFR
zz
z
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
be connected to the HEIGHT1 speaker terminals. Set the speaker to be
connected from “Height” - “Layout” in the menu. (v p. 236)
