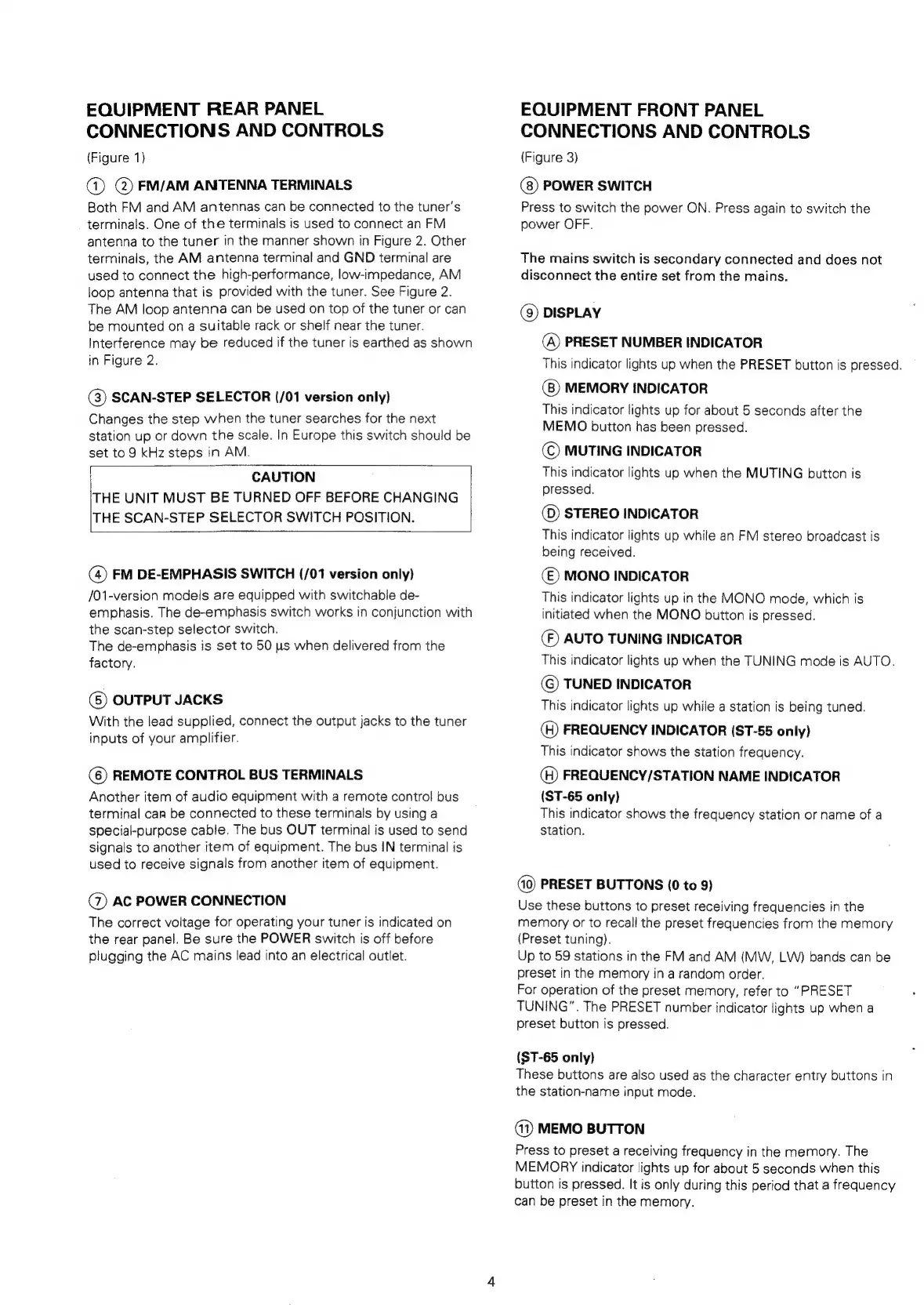

EQUIPMENT REAR PANEL
CONNECTIONS AND CONTROLS
(Figure 1}
@) @) FM/AM ANTENNA TERMINALS
Both FM and AM antennas can be connected to the tuner’s
terminals. One of the terminals is used to connect an FM
antenna to the tuner in the manner shown in Figure 2. Other
terminals, the AM antenna terminal and GND terminal are
used to connect the high-performance, low-impedance, AM
loop antenna that is provided with the tuner. See Figure 2.
The AM loop antenna can be used on top of the tuner or can
be mounted on a suitable rack or shelf near the tuner.
Interference may be reduced if the tuner is earthed as shown
in Figure 2.
3) SCAN-STEP SELECTOR (/01 version only)
Changes the step when the tuner searches for the next
station up or down the scale. In Europe this switch should be
set to 9 kHz steps in AM.
CAUTION
THE UNIT MUST BE TURNED OFF BEFORE CHANGING
THE SCAN-STEP SELECTOR SWITCH POSITION.
@) FM DE-EMPHASIS SWITCH (/01 version only)
/01-version models are equipped with switchable de-
emphasis. The de-emphasis switch works in conjunction with
the scan-step selector switch.
The de-emphasis is set to 50 us when delivered from the
factory.
() OUTPUT JACKS
With the lead supplied, connect the output jacks to the tuner
inputs of your amplifier.
©) REMOTE CONTROL BUS TERMINALS
Another item of audio equipment with a remote control bus
terminal can be connected to these terminals by using a
special-purpose cable. The bus OUT terminal is used to send
signals to another item of equipment. The bus IN terminal is
used to receive signals from another item of equipment.
(@) AC POWER CONNECTION
The correct voltage for operating your tuner is indicated on
the rear panel. Be sure the POWER switch is off before
plugging the AC mains lead into an electrical outlet.
EQUIPMENT FRONT PANEL
CONNECTIONS AND CONTROLS
(Figure 3)
POWER SWITCH
Press to switch the power ON. Press again to switch the
power OFF.
The mains switch is secondary connected and does not
disconnect the entire set from the mains.
() DISPLAY
@ PRESET NUMBER INDICATOR
This indicator lights up when the PRESET button is pressed.
MEMORY INDICATOR
This indicator lights up for about 5 seconds after the
MEMO button has been pressed.
(©) MUTING INDICATOR
This indicator lights up when the MUTING button is
pressed.
(D) STEREO INDICATOR
This indicator lights up while an FM stereo broadcast is
being received.
(E) MONO INDICATOR
This indicator lights up in the MONO mode, which is
initiated when the MONO button is pressed.
(F) AUTO TUNING INDICATOR
This indicator lights up when the TUNING mode is AUTO.
@ TUNED INDICATOR
This indicator lights up while a station is being tuned.
) FREQUENCY INDICATOR (ST-55 only)
This indicator shows the station frequency.
(H) FREQUENCY/STATION NAME INDICATOR
(ST-65 only)
This indicator shows the frequency station or name of a
station.
PRESET BUTTONS (0 to 9)
Use these buttons to preset receiving frequencies in the
memory or to recall the preset frequencies from the memory
(Preset tuning).
Up to 59 stations in the FM and AM (MW, LW) bands can be
preset in the memory in a random order.
For operation of the preset memory, refer to “PRESET
TUNING”. The PRESET number indicator lights up when a
preset button is pressed.
(ST-65 only)
These buttons are also used as the character entry buttons in
the station-name input mode.
(1) MEMO BUTTON
Press to preset a receiving frequency in the memory. The
MEMORY indicator lights up for about 5 seconds when this
button is pressed. It is only during this period that a frequency
can be preset in the memory.
