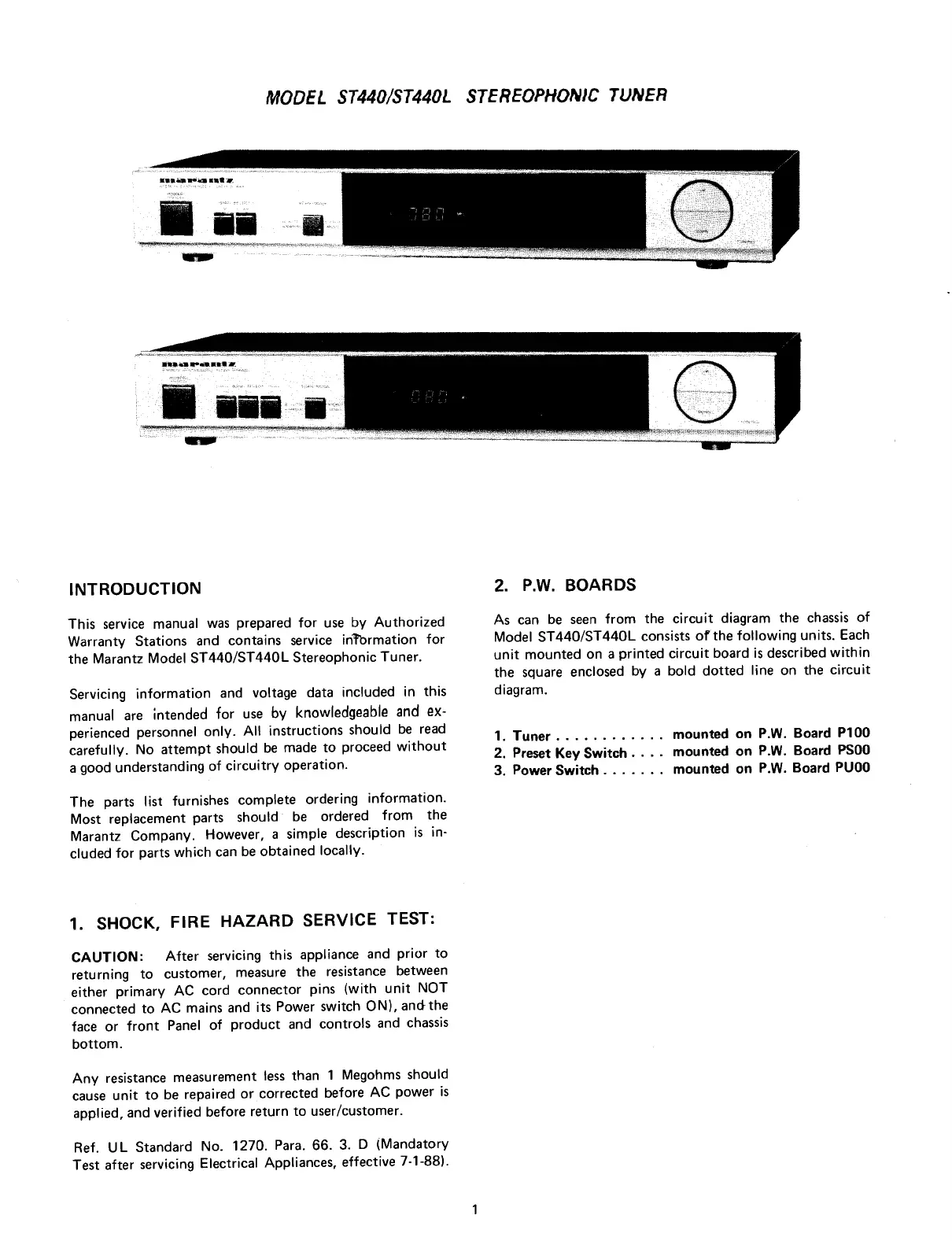

MODEL
ST440/ST440L
STEREOPHONJC
TUNER
••
INTRODUCTION
This service manual
was
prepared
for
use
by Authorized
Warranty Stations and contains service
inlbrmation
for
the Marantz Mode!
ST440/ST440L
Stereophonie Tuner.
Servicing
information
and voltage data included in this
manual
are
intended
for
use
by
knowledgeable and
ex-
perienced personnel only.
Ali
instructions should
be
read
carefully. No
attempt
should
be
made
to
proceed
without
a good understanding
of
circuitry
operation.
The parts list furnishes complete ordering
information.
Most replacement parts should
be
ordered
from
the
Marantz Company. However, a simple description
is
in-
cluded
for
parts which
can
be
obtained locally.
1. SHOCK, FIRE HAZARD SERVICE TEST:
CAUTION:
After
servicing this appliance and
prior
to
returning
to
customer, measure the resistance between
either
primary
AC
cord connector pins
(with
unit
NOT
connected
to
AC
mains and its Power switch ON).
and
the
face
or
front
Panel
of
product
and controls and
chassis
bottom.
Any
resistance measurement
less
than 1 Megohms should
cause
unit
to
be
repaired
orcorrected
before
AC
power
is
applied, and verified before return
to
user/customer.
Ref. U L Standard No. 1270.
Para.
66.
3.
D (Mandatory
Test after servicing Electrical Appliances, effective 7-1-88).
2.
P.W.
BOARDS
As
can
be
seen
from
the
circuit
diagram the
chassis
of
Mode!
ST440/ST440L
consists
ofthe
following
units. Each
unit
mounted on a printed
circuit
board
is
described
within
the square enclosed by a bold
dotted
line on the
circuit
diagram.
1. Tuner
..........
..
mounted
on
P.W. Board P100
2.
Preset
Key Switch .
...
mounted
on
P.W. Board
PSOO
3. Power Switch .
......
mounted
on
P.W. Board
PUOO
