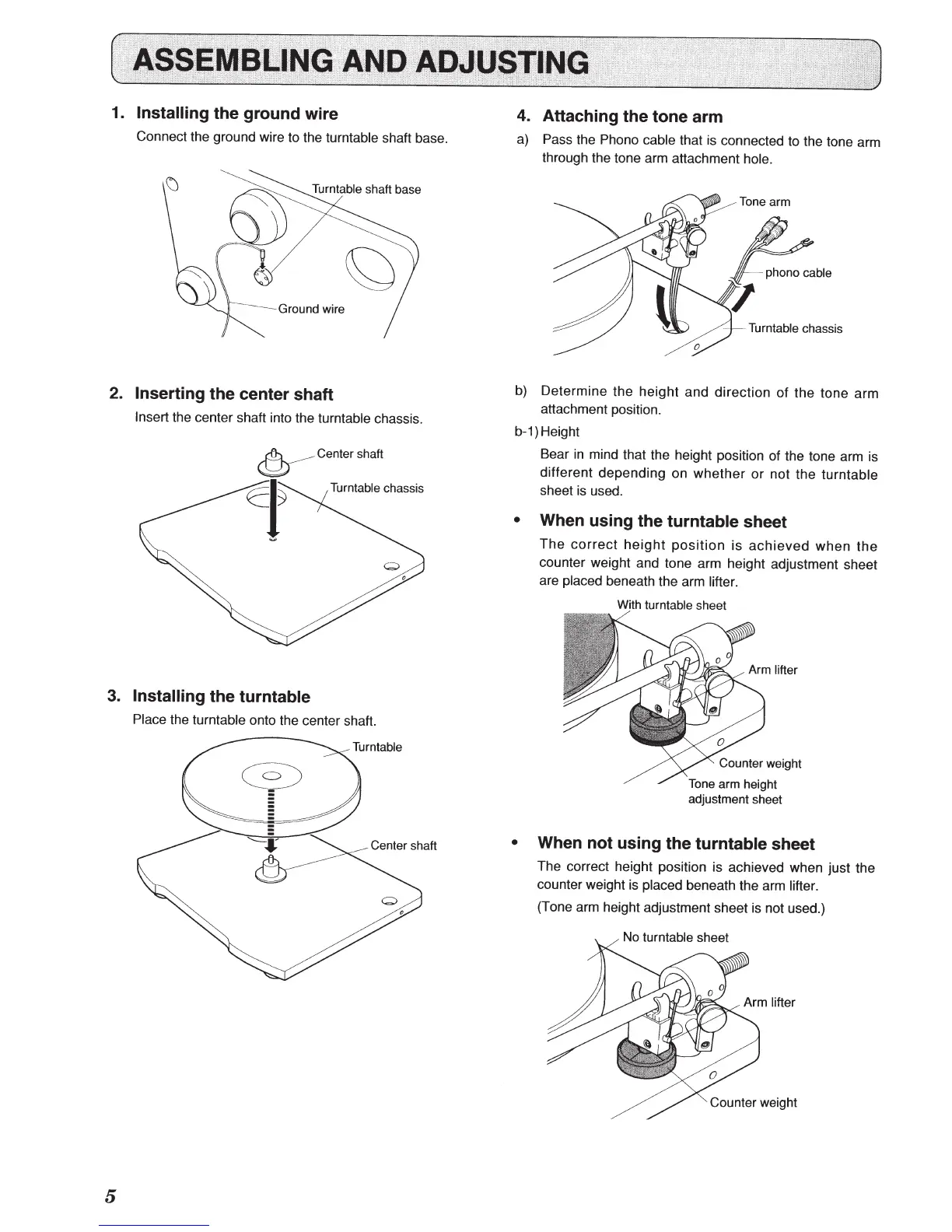

1.
Installing
the ground wire
Connect the ground wire to the
turntable
shaft base.
Turntable
shaft base
Ground wire
2.
Inserting
the center shaft
Insert the center shaft into the
turntable
chassis.
~Center
shaft
1
Turntable
chassis
3.
Installing
the
turntable
Place
the
turntable
onto the center shaft.
Center shaft
5
4.
Attaching the tone arm
a)
Pass the Phono
cable that
is
connected
to
the tone arm
through the tone arm attachment
hole.
b)
Determine the height and direction of the tone arm
attachment position.
b-1) Height
Bear
in
mind that the height position of the tone
arm
is
different depending on whether or not the
turntable
sheet is used.
•
When using the
turntable
sheet
The
correct
height
position
is
achieved
when
the
counter weight and tone arm height adjustment sheet
are
placed
beneath the arm
lifter.
With
turntable
sheet
Tone arm height
adjustment sheet
•
When not using the turntable
sheet
The correct height position is achieved when just the
counter weight
is
placed
beneath the arm
lifter.
(Tone arm height adjustment sheet
is
not used.)
No turntable sheet
Counter weight
To Next Page
