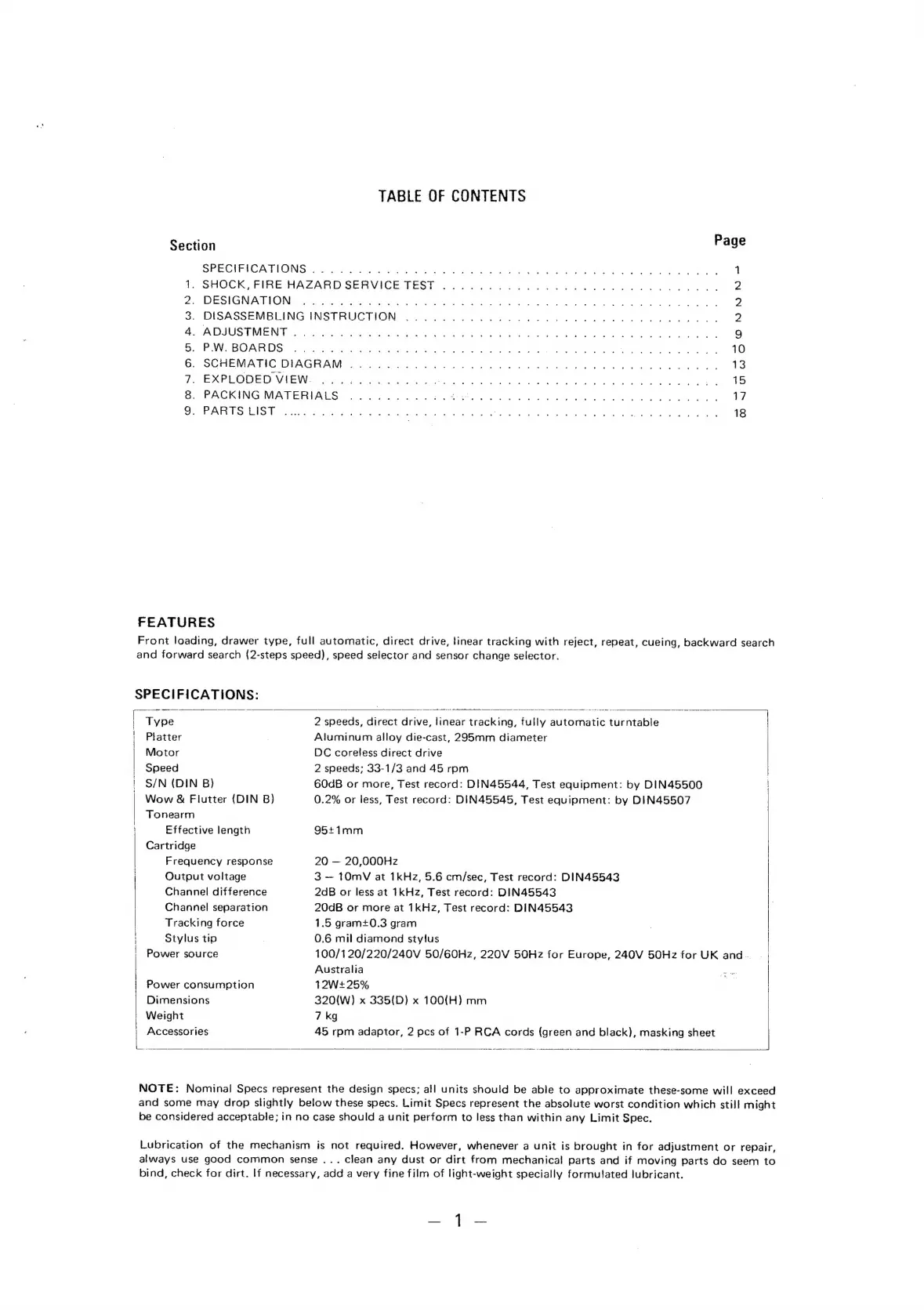

TABLE OF CONTENTS
Section Page
SPEC l ICA FIO Noe Boktas oe ct he Be h aree: Polo ec ON ek, Wet Wee ok es ks Be 1
1. SHOCK, FIRE HAZARD SERVICE TEST « i-oeee$ eee Vad Sed Be bb ek oe bbw wk 2
2s DESIGNATION, oa63-t cue haste ote se ee eee a ts eagaated, eed de eB eek & kk et Gee 2
3. DISASSEMBLING INSTRUCTION ....0.0200.00.000 000 00 eee te eee, 2?
Be ID IN cis rede eg Sov ecg aah Seer heat pies GL in dt hk ee tse en aeons 9
BIPM OIR OS ea tec a Mie toa eat eat hers ght, ae omy etn ate, Bete aul fae 10
6. SCHEMATIC DIAGRAM 24% soa BS oho bo Sew es Ook he So oe bk tea a 13
FO EXPLODED VIEW? wxie-% & bb dnp dow wnt wetiaee bk hw eh ek be eb en 15
Be PACKING VAT ERIALS wef oe yo we eA hw na na BS Reh oe eeie ees 17
Oe POU eel letstr acts, a! dk pes levee, © eee & ela eta at ee Aen tal im etc Bed tcd 18
FEATURES
Front loading, drawer type, full automatic, direct drive, linear tracking with reject, repeat, cueing, backward search
and forward search ({2-steps speed), speed selector and sensor change selector.
SPECIFICATIONS:
| Type 2 speeds, direct drive, linear tracking, fully automatic turntable
| Platter Aluminum alloy die-cast, 295mm diameter
Motor DC coretess direct drive
| Speed 2 speeds; 33-1/3 and 45 rom
| S/N (DIN B}) 60dB or more, Test record: DIN45544, Test equipment: by DIN45500
Wow & Flutter (DIN B)
Tonearm
Effective length
Cartridge
Frequency response
Output voltage
Channel difference
Channel separation
Tracking force
Stylus tip
Power source
Power consumption
Dimensions
Weight
Accessories
|
0.2% or less, Test record: DIN45545, Test equipment: by DIN45507
95+ 1mm
20 — 20,000Hz
3 -—- 10mV at 1kHz, 5.6 cm/sec, Test record: DIN45543
2dB or less at 1kHz, Test record: DIN45543
20dB or more at 1kHz, Test record: DIN45543
1.5 gram+0.3 gram
0.6 mil diamond stylus |
100/120/220/240V 50/60Hz, 220V 50Hz for Europe, 240V 50Hz for UK and. |
Australia |
12W+25%
320(W) x 335(D) x 100(H) mm
7 kg
45 rpm adaptor, 2 pcs of 1-P RCA cords (green and black), masking sheet
NOTE: Nominal Specs represent the design specs; all units should be able to approximate these-some will exceed
and some may drop slightly below these specs. Limit Specs represent the absolute worst condition which still might
be considered acceptable; in no case should a unit perform to less than within any Limit Spec.
Lubrication of the mechanism is not required. However, whenever a unit is brought in for adjustment or repair,
always use good common sense ..
. clean any dust or dirt from mechanical parts and if moving parts do seem to
bind, check for dirt. If necessary, add a very fine film of light-weight specially formutated lubricant.
