1.
SHOCK,
FIRE
HAZARD
SERVICE
TEST
CAUTION:.
After
servicing
this
appliance
and
prior
to
returning
to
customer,
measure
the
resistance
between
either
primary
AC
cord
connector
pins
(with
unit
NOT
connected
to
AC
mains
and
its
Power
switch
ON),
and
the
face
or
front
Panel
of
product
and
controls
and
chassis
bottom.
Any
resistance
measurement
less
than
1
Megohms
should
cause
unit
to
be
repaired
or
corrected
before
AC
power
is
applied,
and
verified
before
return
to
user/customer.
Ref.
UL
Standard
No.
1270.
Para.
66.3.
D
(Mandatory
Test
after
servicing
Electrical
Appliances,
effective
7-1-83).

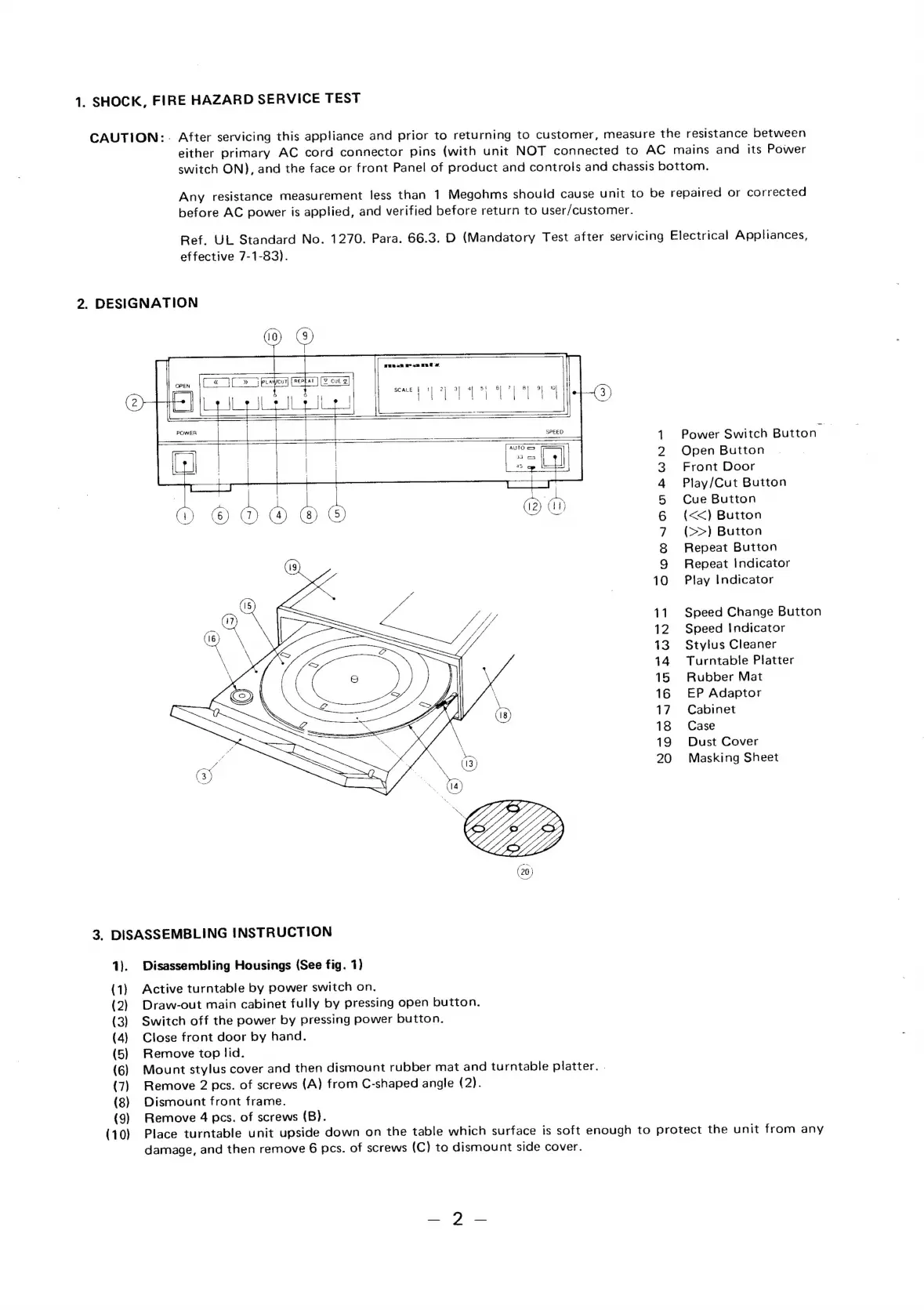

2. DESIGNATION
SUB at Bee ERE
SCALE | 1
Power Switch Button
Open Button
Front Door
Play/Cut Button
Cue Button
(<<) Button
(>>) Button
Repeat Button
Repeat Indicator
Play Indicator
| AUTO es
| 330
Owmoeonoaonrhwhnrhn-
11 Speed Change Button
12 Speed Indicator
13. Stylus Cleaner
14 Turntable Platter
15 Rubber Mat
16 EP Adaptor
17. Cabinet
18 Case
19 Dust Cover
20 Masking Sheet
3,
DISASSEMBLING
INSTRUCTION
1).
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
Disassembling Housings (See fig. 1)
Active turntable by power switch on.
Draw-out
main
cabinet
fully
by
pressing
open
button.
Switch off the power by pressing power button.
Close front door by hand.
Remove top lid.
Mount
stylus
cover
and
then
dismount
rubber
mat
and
turntable
platter.
.
Remove
2
pes.
of
screws
(A)
from
C-shaped
angle
(2).
Dismount front frame.
Remove 4 pcs. of screws (B).
Place
turntable
unit
upside
down
on
the
table
which
surface
is
soft
enough
to
protect
the
unit
from
any
damage,
and
then
remove
6
pcs.
of
screws
(C)
to
dismount
side
cover.
