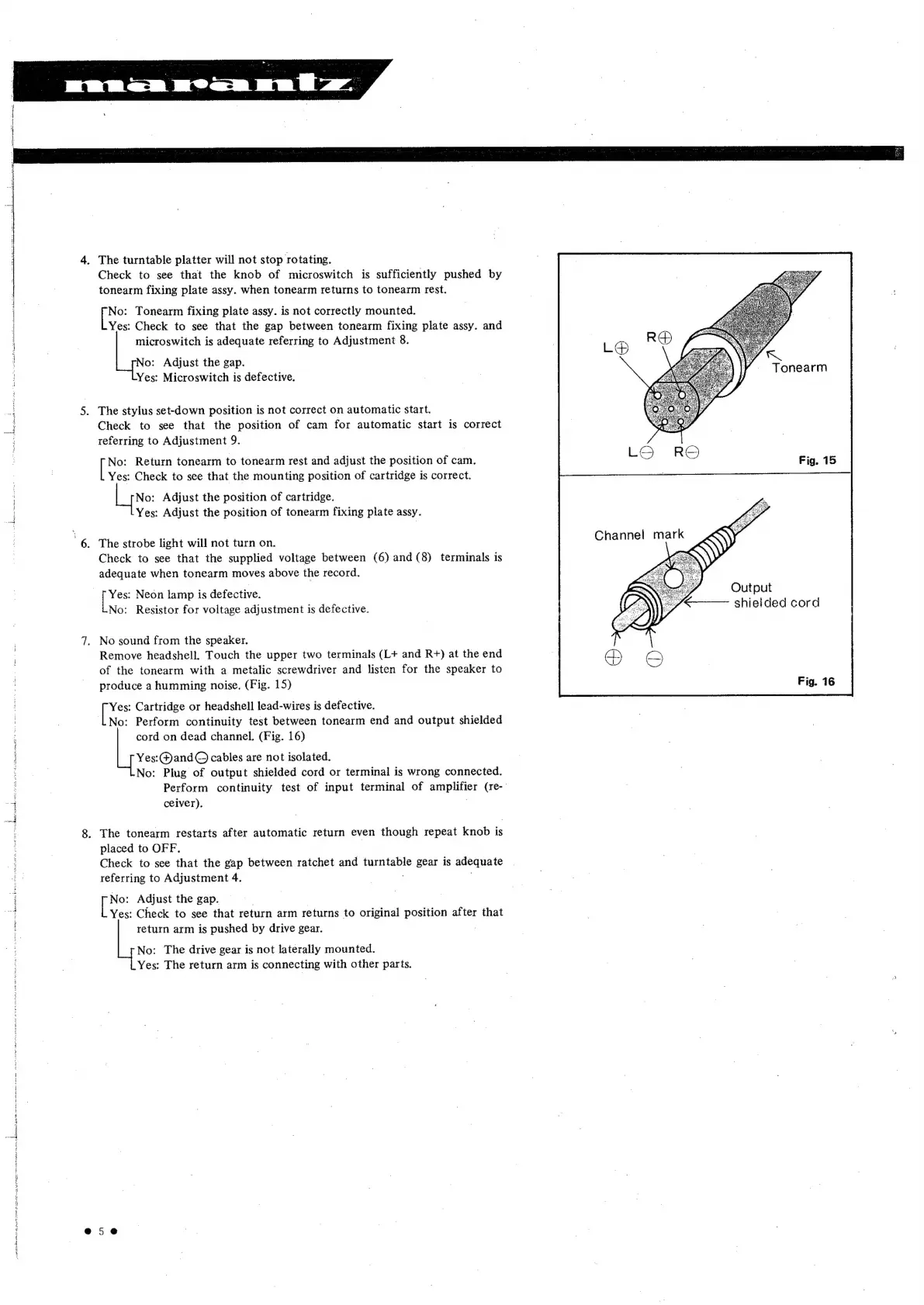

4. The turntable platter will not stop rotating.
Check to see that the knob of microswitch is sufficiently pushed by
tonearm fixing plate assy. when tonearm returns to tonearm rest.
No: Tonearm fixing plate assy. is not correctly mounted.
Yes: Check to see that the gap between tonearm fixing plate assy. and
microswitch is adequate referring to Adjustment 8.
No: Adjust the gap.
Yes: Microswitch is defective.
5. The stylus set-down position is not correct on automatic start.
}
Check
to
see
that
the
position
of
cam
for
automatic
start
is
correct
referring to Adjustment 9.
Be Return tonearm to tonearm rest and adjust the position of cam.
Yes: Check to see that the mounting position of cartridge is correct.
No: Adjust the position of cartridge.
Yes: Adjust the position of tonearm fixing plate assy.
EN ia eae
6. The strobe light will not turn on.
Check to see that the supplied voltage between (6) and (8) terminals is
adequate when tonearm moves above the record.
hea Neon lamp is defective.
No: Resistor for voltage adjustment is defective.
7. No sound from the speaker.
Remove headshell, Touch the upper two terminals (L+ and R+) at the end
of the tonearm with a metalic screwdriver and listen for the speaker to
produce a humming noise. (Fig. 15)
Yes: Cartridge or headshell lead-wires is defective.
No: Perform continuity test between tonearm end and output shielded
cord on dead channel. (Fig. 16)
Yes:and© cables are not isolated.
: No: Plug of output shielded cord or terminal is wrong connected.
Perform continuity test of input terminal of amplifier (re-
4 ceiver).
8, The tonearm restarts after automatic return even though repeat knob is
placed to OFF. |
Check to see that the gap between ratchet and turntable gear is adequate
referring to Adjustment 4.
No: Adjust the gap. | |
Yes: Check to see that return arm returns to original position after that
return arm is pushed by drive gear.
No: The drive gear is not laterally mounted.
Yes: The return arm is connecting with other parts.
ey See eee meen dee aang eee P ME URE ALUN ott OTR BER Sete E PIETERS Ace AE AE Tantte OE fee te and” ge amas
beer ere
@5@e
Tonearm
