Marco CP-670 - Specifications; Chart Samples

5

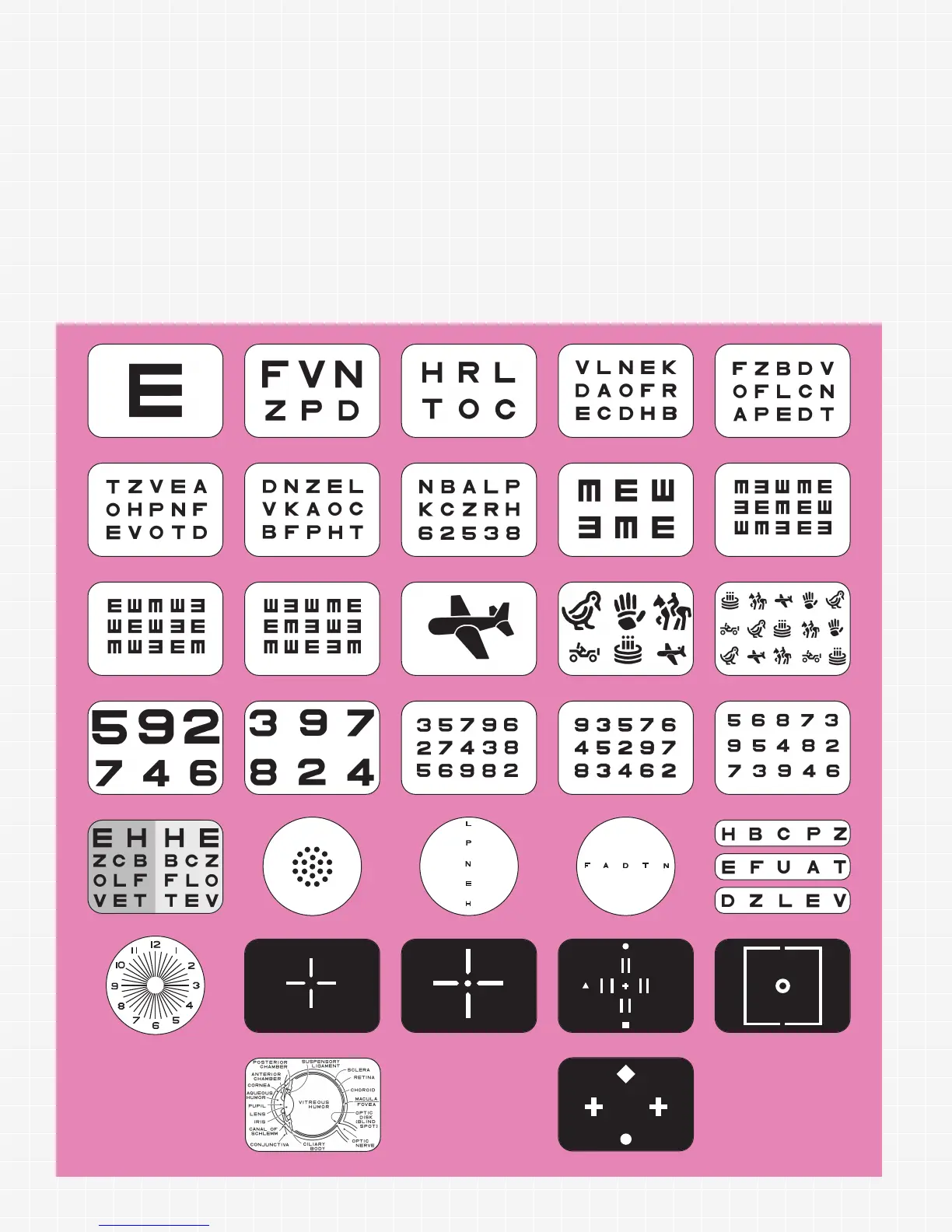

CHART SAMPLES
A Fixation Chart is included, but not shown.
★
Snellen 400
Snellen 20–15–10 Snellen 20–20–20 Snellen 25–20–20 Illiterate E 100–80 Illiterate E 70–60–50
Illiterate E 40–30–25 Illiterate E 20–20–15 Children’s 100 Children’s 80–60 Children’s 40–30–20
Number 200–150 Number 100–80 Number 70–60–50 Number 40–30–25 Number 20–15–10
Red/Green with
Letters
Cross Cylinder Dots Vertical Letters Horizontal Letters Binocular Balance
Astigmatic Clock Dial Phoria Phoria with Fixation
Muscle Balance Test
Minute Stereo Test Coincidence Vertical
Schematic Eye
Worth Test
Snellen 200–150 Snellen 100–80 Snellen 70–60–50 Snellen 40–30–25
SPECIFICATIONS
Chart: 33 pcs.
Projection distance: 9.5 to 20 ft. (16.4 ft. is standard)
Projection
magnification: 25X (at 16.4 ft.)
Projection size: 9.84 x 8.85 in. and 10.83 in. diameter
Tilt angle: ±10°
Lamp: 6V 20W (Halogen), 2,000 hrs. lifetime
P
ower source: AC 100, 120, 220 and 240V, 50/60Hz
Power consumption: 50VA
Dimensions - Main body: 11.02 (H) x 8.26 (W) x 13.48 (D) in.
Control unit: 0.70 (H) x 2.51 (W) x 6.88 (D) in.
Weight - Main body: 15.4 lbs.
Control unit: .98 lbs
F
inish - Main body: White grey
Control unit: White grey
Accessories: 1 each of dust cover, screen, test
scale, wrench, and 2 spare fuses.
Optional accessories: Wall mount bracket, desk mount,
unit mount.
