Marco SP9 - Attaching SP9 Head to Counter; SP9 Head & Boiler Connections

11
INSTALLATION

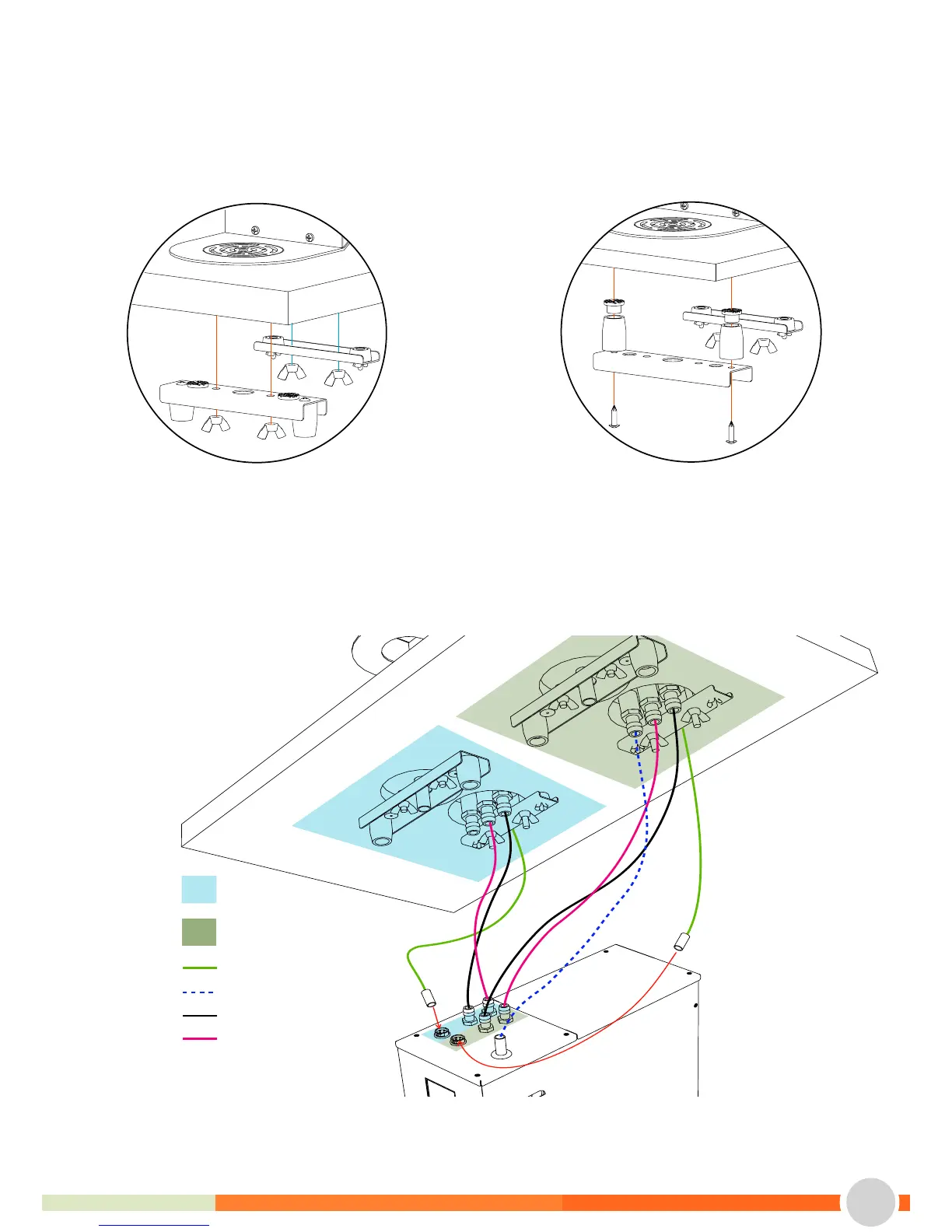

7. SP9 Head & Boiler Connections
6. Attaching SP9 Head to the counter, thin counter thickness
<25mm.
The 2 standard braces can accommodate counter thicknesses up to 40mm. Where the counter thickness is less than 25mm
the hard plastic legs on the front brace must be removed and reattached to the other side of the brace using a screwdriver.
The rubber inserts in the brace should be removed and repositioned in the plastic legs as shown above.
5. Attaching SP9 Head to the counter, standard counter
thickness 25-40mm.
HEAD ONE
HEAD TWO
POWER
VENT
FEED TO HEAD
RETURN FEED TO BOILER
