Marco SP9 - Cutting Template

9
CUTTING TEMPLATE
NOT TO SCALE

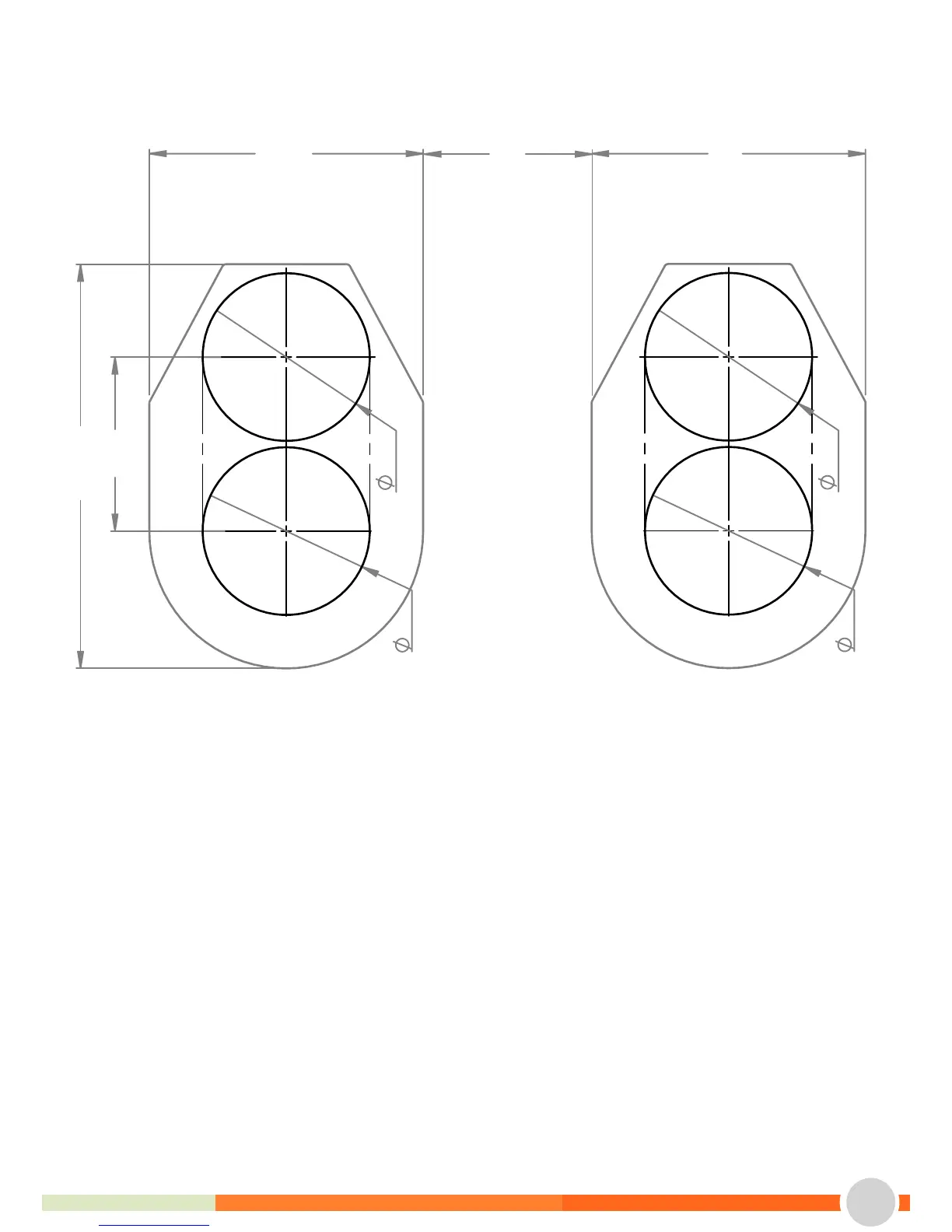

The above drawing illustrates where to position the counter cut outs if two SP9 Heads are being installed.
For a 1:1 scale cutting template please see the back page of this manual.
Option 1:
Using an 80mm hole saw, drill two holes as per the drawing.
Option 2:
Use a jig saw or similar cutting device to cut out the full obround shape.
80
80
83 ±1
131mm
192.8mm
131
80
80
100
