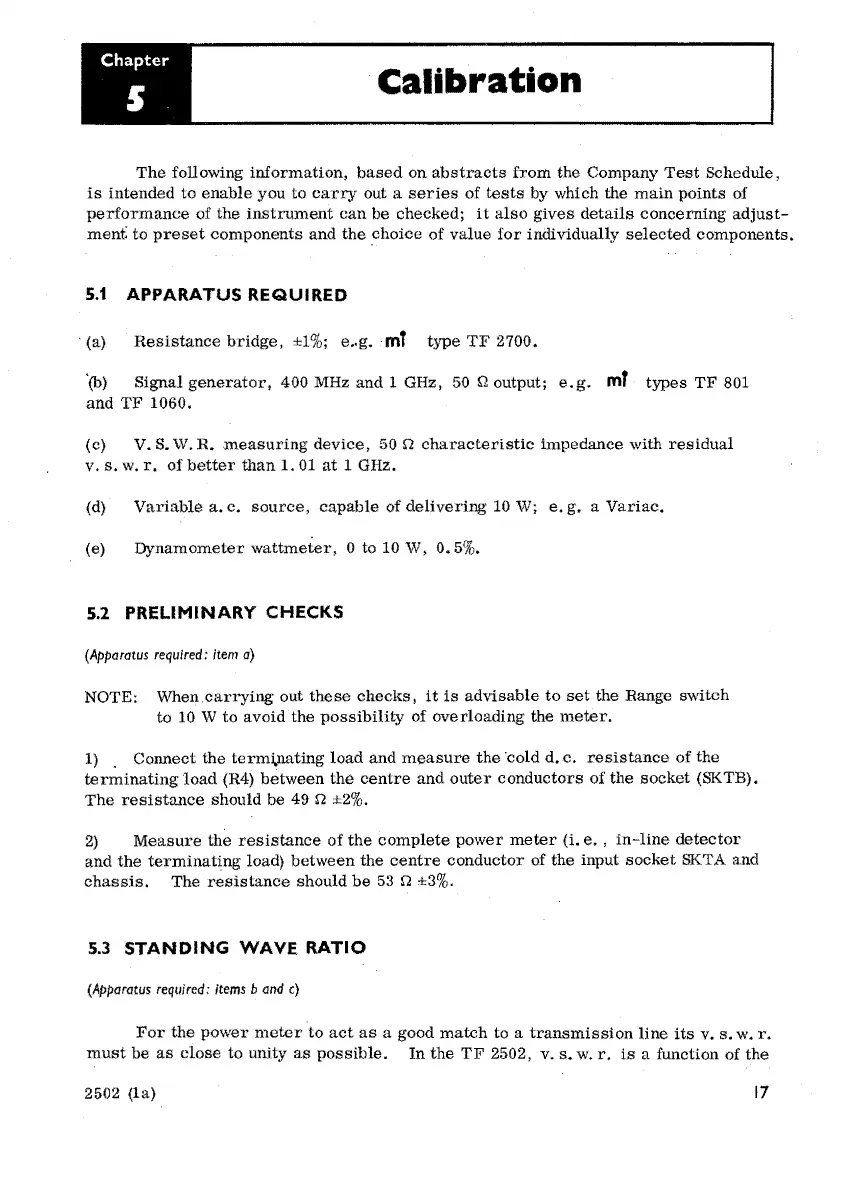

Calibration
The
following
information,
based
on
abstracts
from
the
Company
Test
Schedule,
is
intended
to
enable
you
to
carry
out a
series
of
tests
by
which the
main
points
of
performance
of
the
instrument
can
be
checked;
it
also
gives
details
concerning
adjust-
ment
to
preset
components
and
the
choice
of
value
for
individually
selected
components.
5.1
APPARATUS
REQUIRED
(a)
Resistance
bridge,
e
..
g.
mT
type
TF
2700.
'(b) Signal
generator,
400 MHz
and
1 GHz, 50 Q output;
e.g.
mf
types
TF
801
and
TF
1060.
(c) V. S.
W.
R.
measuring
device,
50 Q
characteristic
impedance
with
residual
v.
s.
w.
r.
of
better
than
1.
01
at
1 GHz.
(d)
Variable
a.
c.
source,
capable
of
delivering
10 W;
e.
g.
a
Variac.
(e)
Dynamometer
wattmeter,
0 to 10 W,
0.5%.
5.2
PRELIMINARY
CHECKS
(Apparatus
required:
item
a)
NOTE: When
carrying
out
these
checl{s,
it
is
advisable
to
set
the
Range
switch
to 10 W
to
avoid
the
possibility
of
overloading
the
meter.
1)
.
Connect
the
termi,nating
load
and
measure
the
·cold d.
c.
resistance
of
the
terminating
load
(R4)
between
the
centre
and
outer
conductors
of
the
socket
(SKTB).
The
resistance
should
be
49 Q ±2%.
2)
Measure
the
resistance
of
the
complete
power
meter
(i.e.
,
in-line
detector
and
the
terminating
load)
between
the
centre
conductor
of the input
socket
SKTA and
chassis.
The
resistance
should
be
53
Q ±3%.
5.3
STANDING
WAVE
RATIO
(Apparatus
required:
items
b
and
c)
For
the
power
meter
to
act
as
a good
match
to a
transmission
line
its
v.
s.
w.
r.
must
be
as
close
to
unity
as
possible.
In
the
TF
2502, v.
s.
w.
r.
is
a function of
the
2502 (1a)
