Marconi Instruments TF 2502 - Chapter 7 CIRCUIT DIAGRAMS; Circuit Notes

24

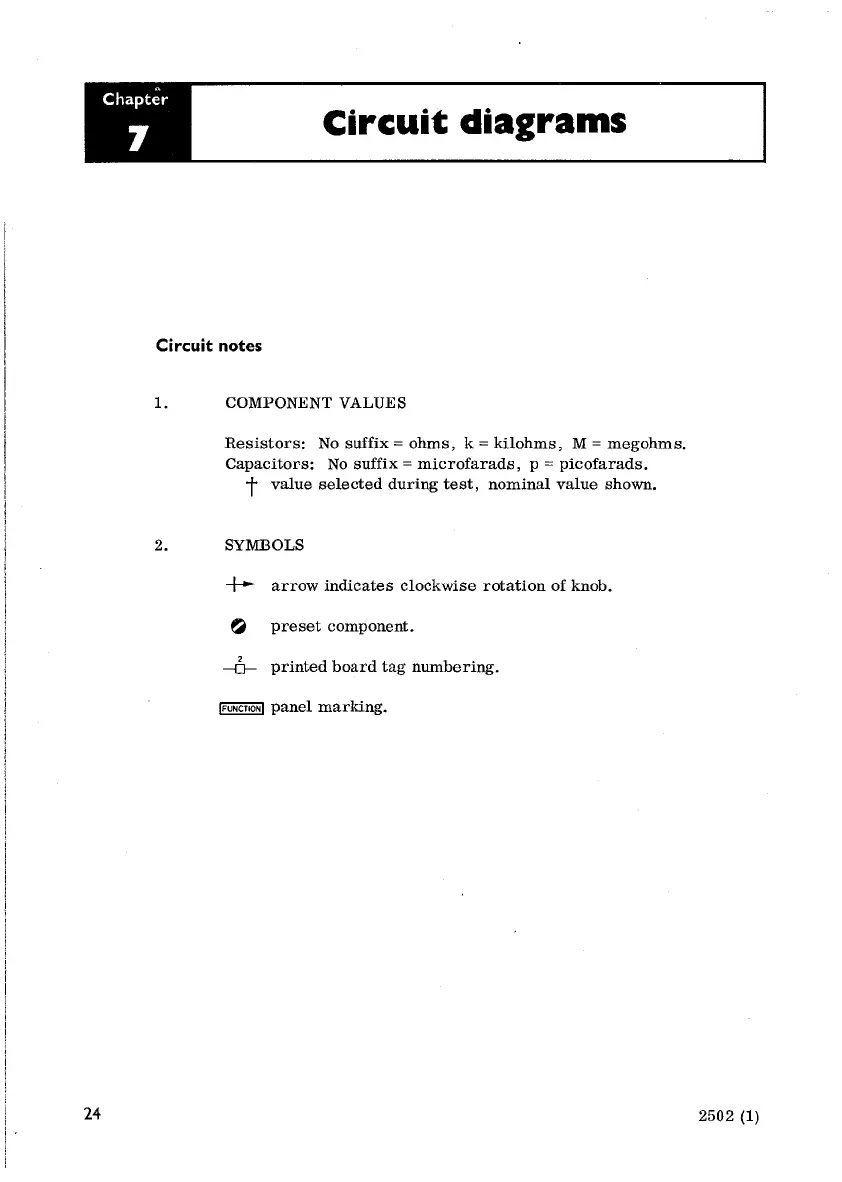

Circuit diagrams
Circuit notes
1. COMPONENT VALUES
Resistors: No suffix= ohms, k = kilohms, M =megohms.
Capacitors: No suffix= microfarads, p =picofarads.
t value selected during test, nominal value shown.
2. SYMBOLS
+- arrow indicates clockwise rotation of knob.
Q preset component.
--6-- printed board tag numbering.
iFuNcnoNi panel marking.
2502 (1)
