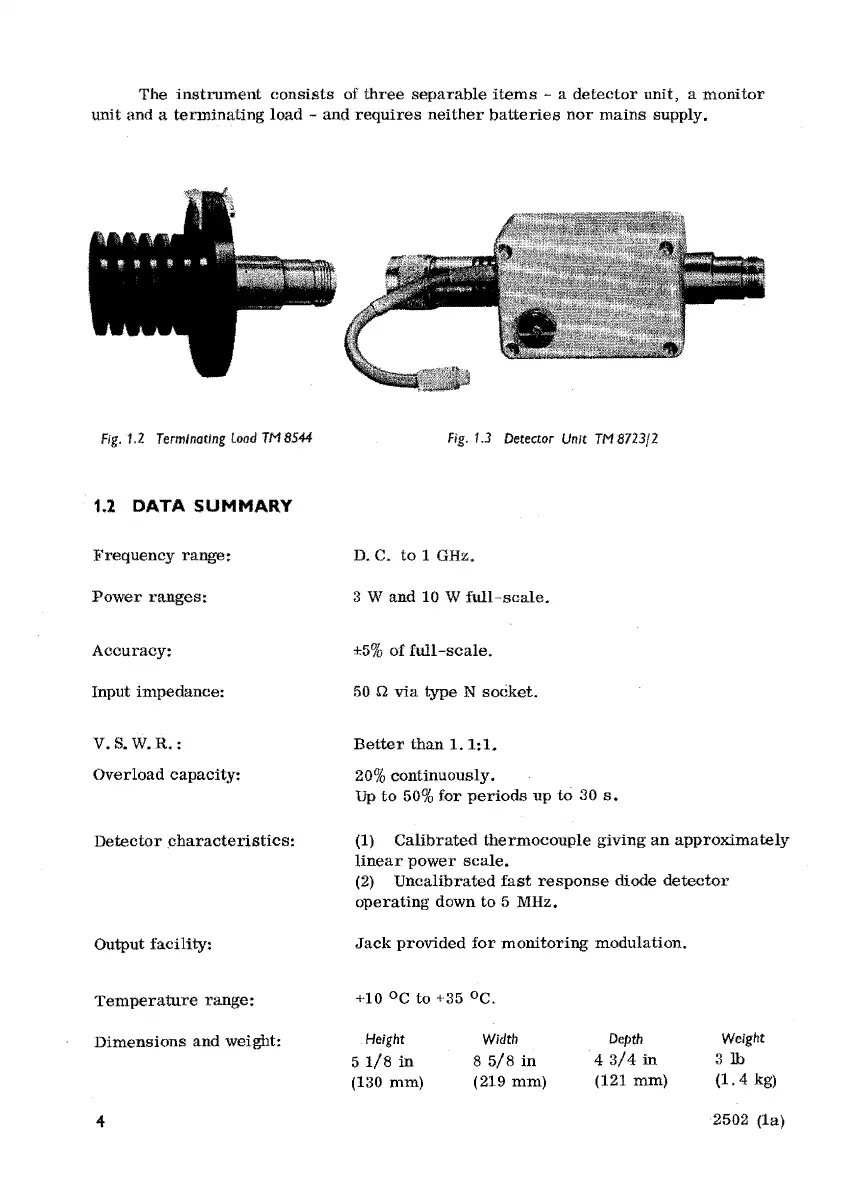

Marconi Instruments TF 2502 - Data Summary

The instrument consists of three separable items a detector unit, a monitor
unit and a terminating load and requires neither batteries nor mains supply.
Fig. 1.2 Terminating load TM 8544
1.2 DATA SUMMARY
Frequency range:
Power ranges:
Accuracy:
Input impedance:
V.S.W.R.:
Overload capacity:
Detector characteristics:
Output facility:
Temperature range:
Dimensions and weight:
4
Fig. 1.3 Detector Unit TM 8723/2
D. C. to 1 GHz.
3 Wand 10 W full-scale.
±5% of full-scale.
50 Q via type N socket.
Better than 1. 1:1.
20% continuously.
Up to 50% for periods up to 30 s.
(1) Calibrated thermocouple giving an approximately
linear power scale.
(2) Uncalibrated fast response diode detector
operating down to 5 MHz.
Jack provided for monitoring modulation.
+10 octo +35 oc.
Height
5 1/8 in
(130 mm)
Width
8 5/8 in
(219 mm)
Depth
4 3/4 in
(121 mm)
Weight
3lb
(1. 4 kg)
2502 (1a)
