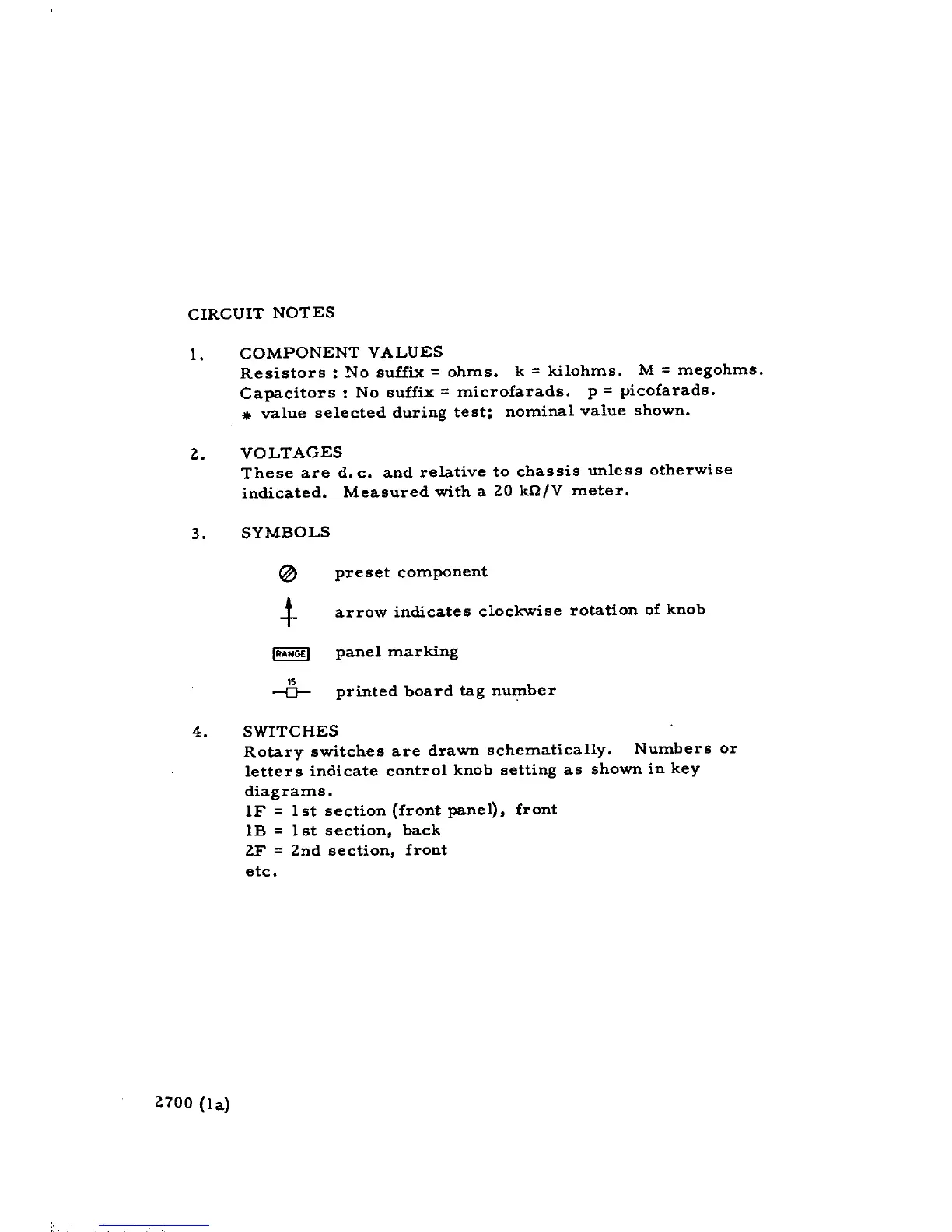

CIRCUIT NOTES
1. COMPONENT V ALUES
Resistors : No suffix = ohms. k = kilohms. M = megohms.
Capacitors : No sufIix = microIarads. p = picoIarads.
. value selected during test; nominaI value shown.
l. VOLTAGES
These are d. c. and relative to chassis unIess otherwise
indicated. Measured with a lO kO/V meter.
3. SYMBOLS
~ preset component
+ arrow indicates cIockwise rotation oI knob
~ panel marking
IO
-o- printed board tag number
4. SWITCHES
Rotary switches are drawn schematicaIIy. Numbers or
Ietters indicate contraI knob setting as shown in key
diagrams.
IF = 1 st section (Iront pane 1) , Iront
IB = 1 st section, back
lF = lnd section, Iront
etc.
