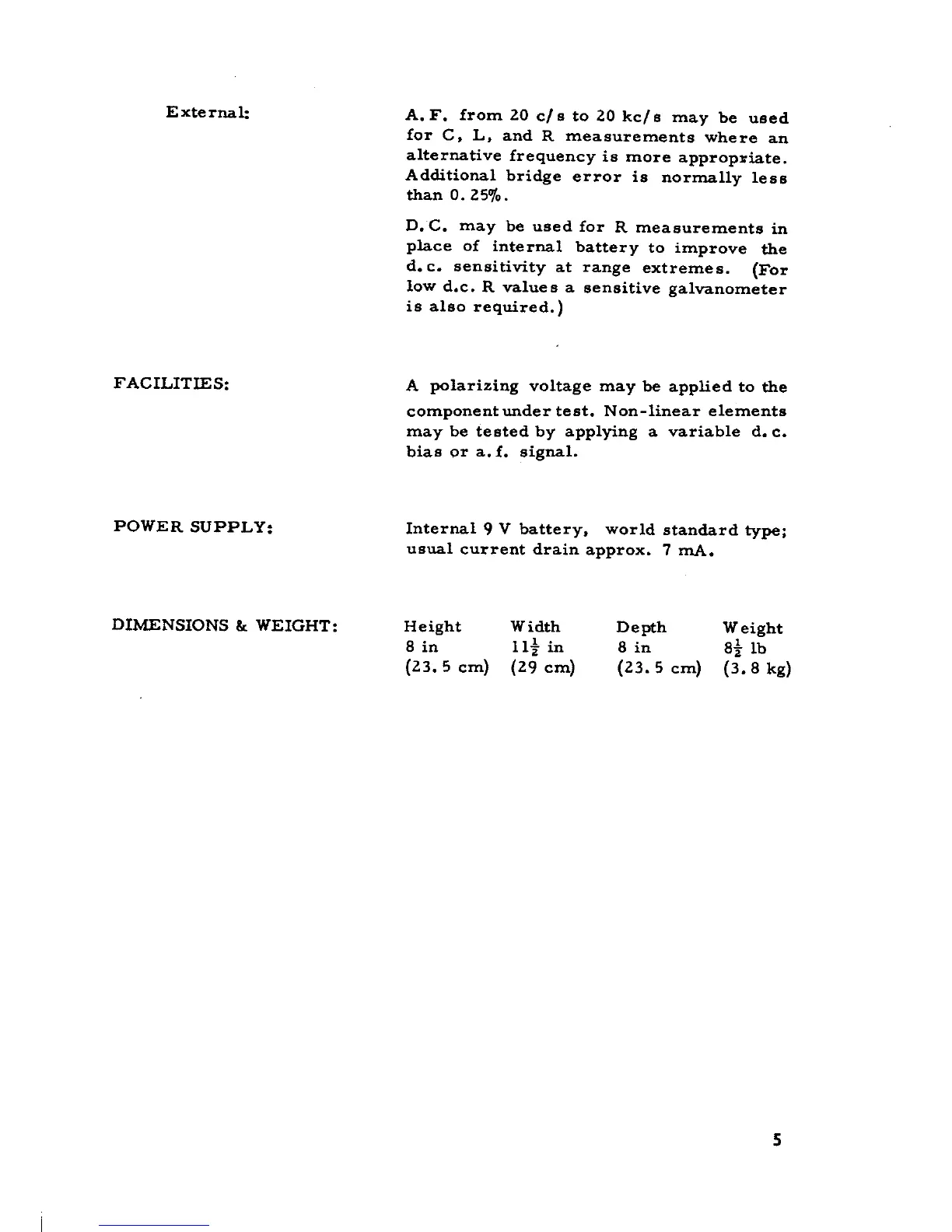

E xte rnal: A. F. tram 20 cl s to 20 kcl s may be used
far C. L. and R measurements where an
alternative frequency is more approp~iate.
Additional bridge errar is normally lesa
than O. 25% .
D.C. may be used far R measurements in
piace of internaI battery to improve the
d. c. sensitivity at range extremes. (For
low d.c. R values a sensitive galvanometer
is alBo required.)
FACILITIES: A polarizing voltage may be applied to the
component under test. N on-linear elements
may be tested by applying a variable d. c.
bias or a. f. signal.
POWER SUPPLY: InternaI 9 V battery. world standard type;
usual current drain approx. 7 mA.
DIMENSIONS &. WEIGHT: Height Width Depth Weight
8 in llj in 8 in 8j lb
(23.5 cm) (29 cm) (23.5 cm) (3.8 kg)
5
