Marcy EL1016 - Page 6

6

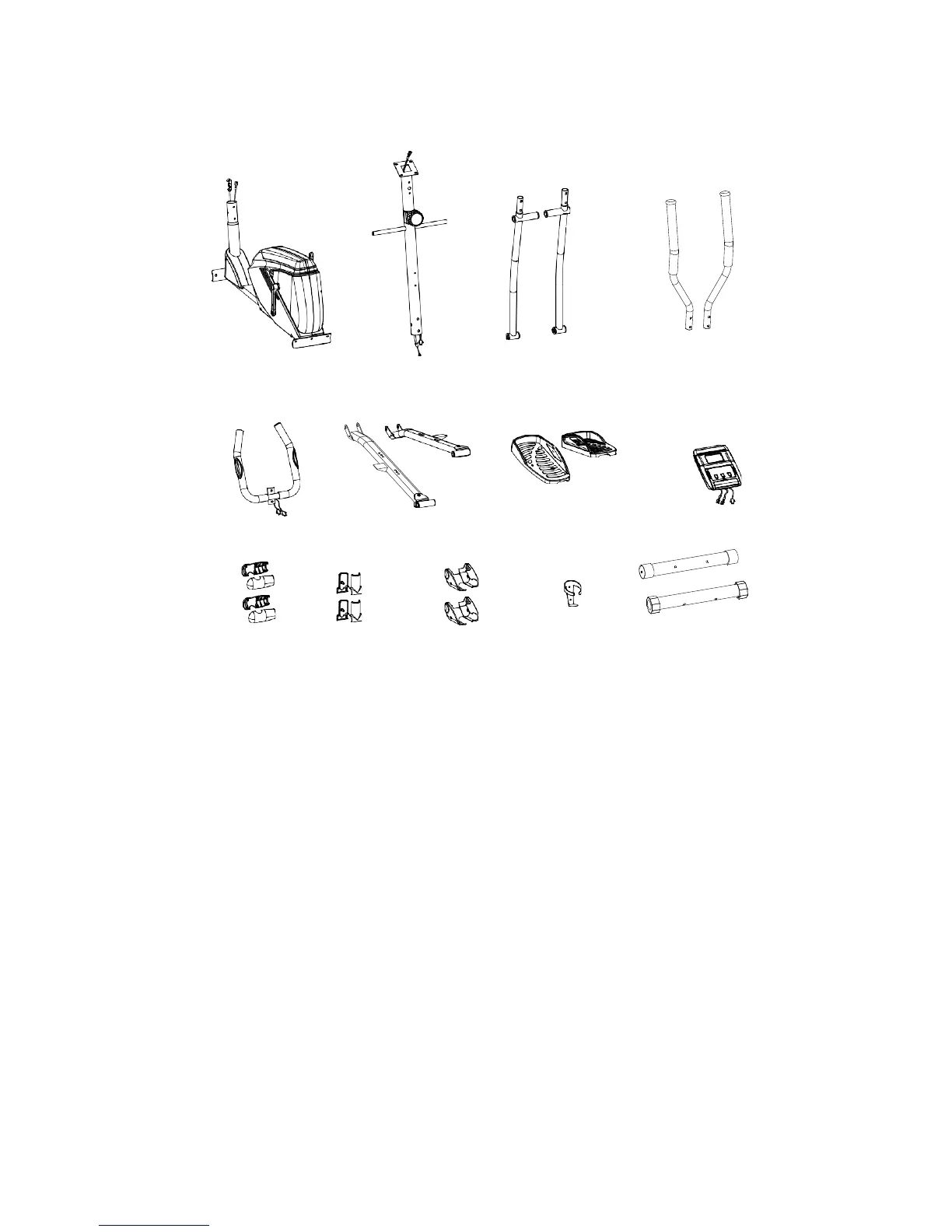

PRE-ASSEMBLY CHECK LIST
NO:1
NO:9/51
NO:52/53
NO:12/13
NO:11
NO:41L/R NO:48L/R
NO:10
NO:35
NO:39
NO:37L/R
NO:43
NO:6/3
PART NO.
DESCRIPTION
Q’TY
1 Main Frame 1
9/51 Front post/ Tension control knob w/cable 1/1
52/53 Bottom handlebar L/R 1/1
12/13 Top handlebar L/R 1/1
41 Pedal tube L/R 1/1
11 Fixed handlebar
1
6/3 Front stabilizer/ Rear stabilizer 1/1
10 Computer
1
48 Pedal L/R 1/1
35 Top handlebar cover
4
39 Bottom handlebar cover
4
37 Pedal tube cover L/R 2/2
43
Bottle holder
1
