Marel M3310 User Manual

Mounting
The M3310 HMI Controller is similar to the M3210 indicator. In fact, the lower part and mount
ings are the same. All mounting options for the M3210 can therefore be used for the M3310.

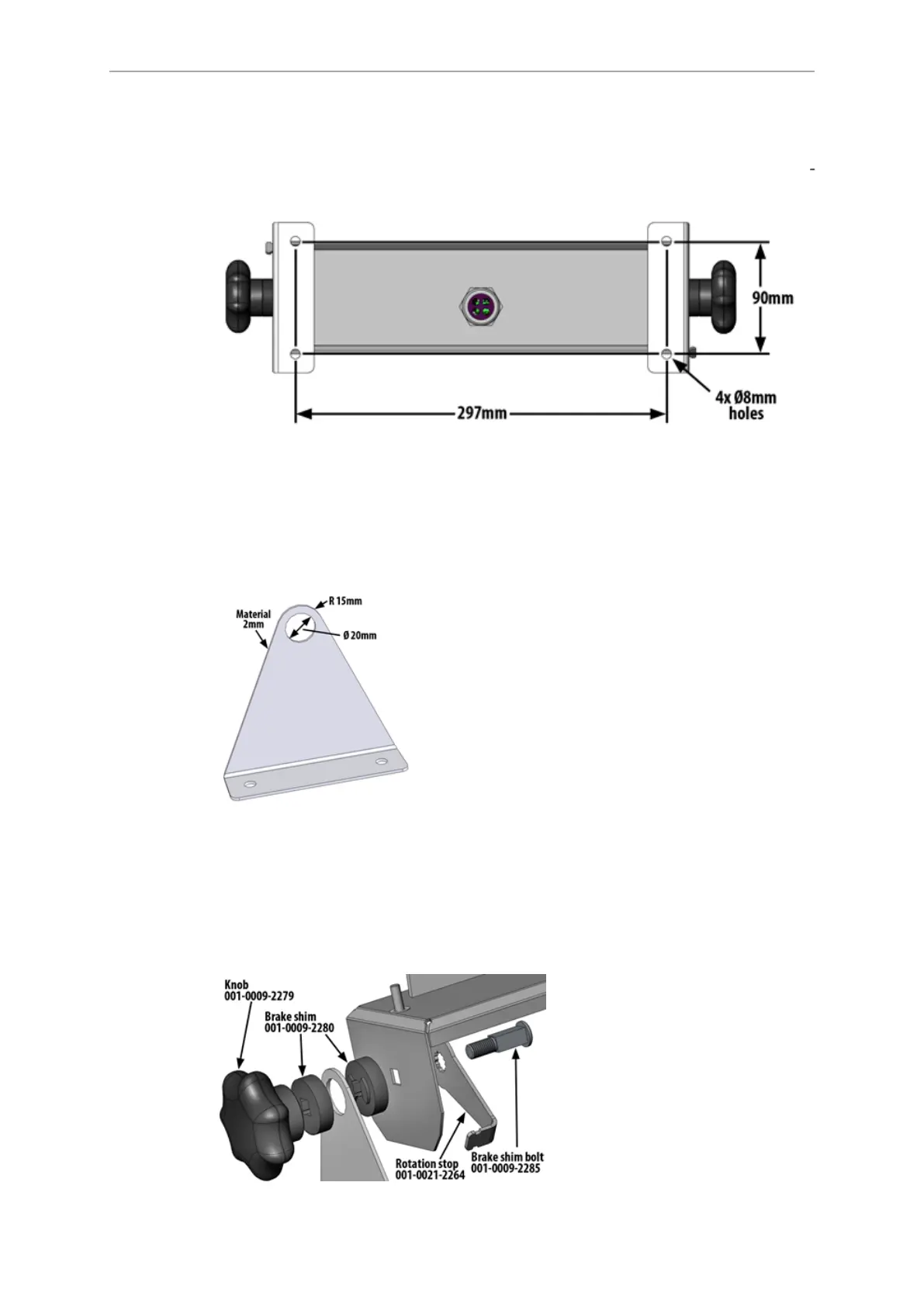

Figure 3 Mounting bracket for the M3310 HMI Controller
Optional Wall and Table Mounting
An optional wall mounting bracket can be used for mounting the M3310 HMI Controller to a
wall or a table, see Figure 4.
Figure 4 Wall mounting bracket
A custom mounting bracket can be constructed from a 2 mm thick material. The new part
should be similar to the bracket shown in Figure 4.
Figure 5 shows how the mounting bracket is assembled.
Figure 5 Mounting bracket, assembly
The M3310 HMI Controller M3310 HMI Controller User Manual
160317ENG 7
