Series TT03 Digital Torque Gauges User’s Guide
Battery / AC
adapter indicator
Either the AC adapter icon or battery power icon will be shown, depending on
power conditions. Refer to the Power section for details.
indicators
Correspond to the programmed set points. Indicator definitions are as follows:
– the displayed value is greater than the upper load limit
– the displayed value is between the load limits
– the displayed value is less than the lower load limit
The programmed load limit values. Typically used for pass/fail type testing.
One, two, or no indicators may be present, depending on the configuration
shown in the Set Points menu item.

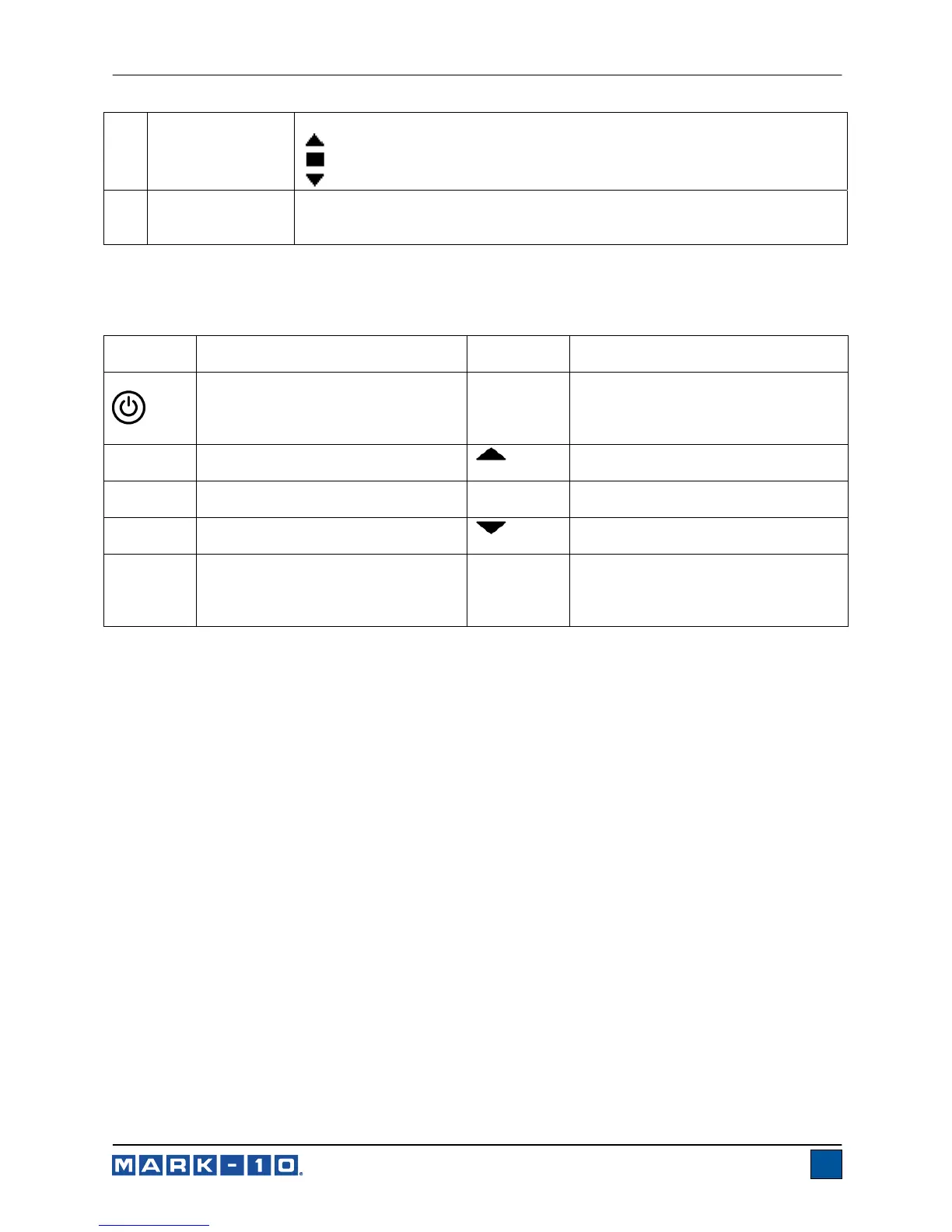

4.2 Controls
Powers the gauge on and off.
Press briefly to power on, press
and hold to power off. Active only
when the home screen is
Various uses, as described in the
following sections.
Zeroes the primary reading and
peaks.
Navigates up through the menu and
sub-menus .
Reverts one step backwards
through the menu hierarchy.
Toggles between measurement
modes.
Navigates down through the menu
and sub-menus.
Transmits the current reading to an
external device via the USB port.
Toggles between clockwise and
counter-clockwise directions while
configuring set points and other
Note: Measurement units are configured through the menu. Refer to Changing The Units section for
details.
4.3 Menu navigation basics
Most of the gauge’s various functions and parameters are configured through the main menu. To access
the menu press MENU. Use the UP and DOWN keys to scroll through the items. The current selection is
denoted with clear text over a dark background. Press ENTER to select a menu item, then use UP and
DOWN again to scroll through the sub-menus. Press ENTER again to select the sub-menu item.
For parameters that may be either selected or deselected, press ENTER to toggle between selecting and
deselecting. An asterisk (*) to the left of the parameter label is used to indicate when the parameter has
been selected.
For parameters requiring the input of a numerical value, use the UP and DOWN keys to increment or
decrement the value. Press and hold either key to auto-increment at a gradually increasing rate. When
the desired value has been reached, press ENTER to save the change and revert back to the sub-menu
item, or press ESCAPE to revert back to the sub-menu item without saving. Press ESCAPE to revert one
step back in the menu hierarchy until back into normal operating mode.
Refer to the following sections for details about setting up particular functions and parameters.
