Series TT03 Digital Torque Gauges User’s Guide
4 HOME SCREEN AND CONTROLS

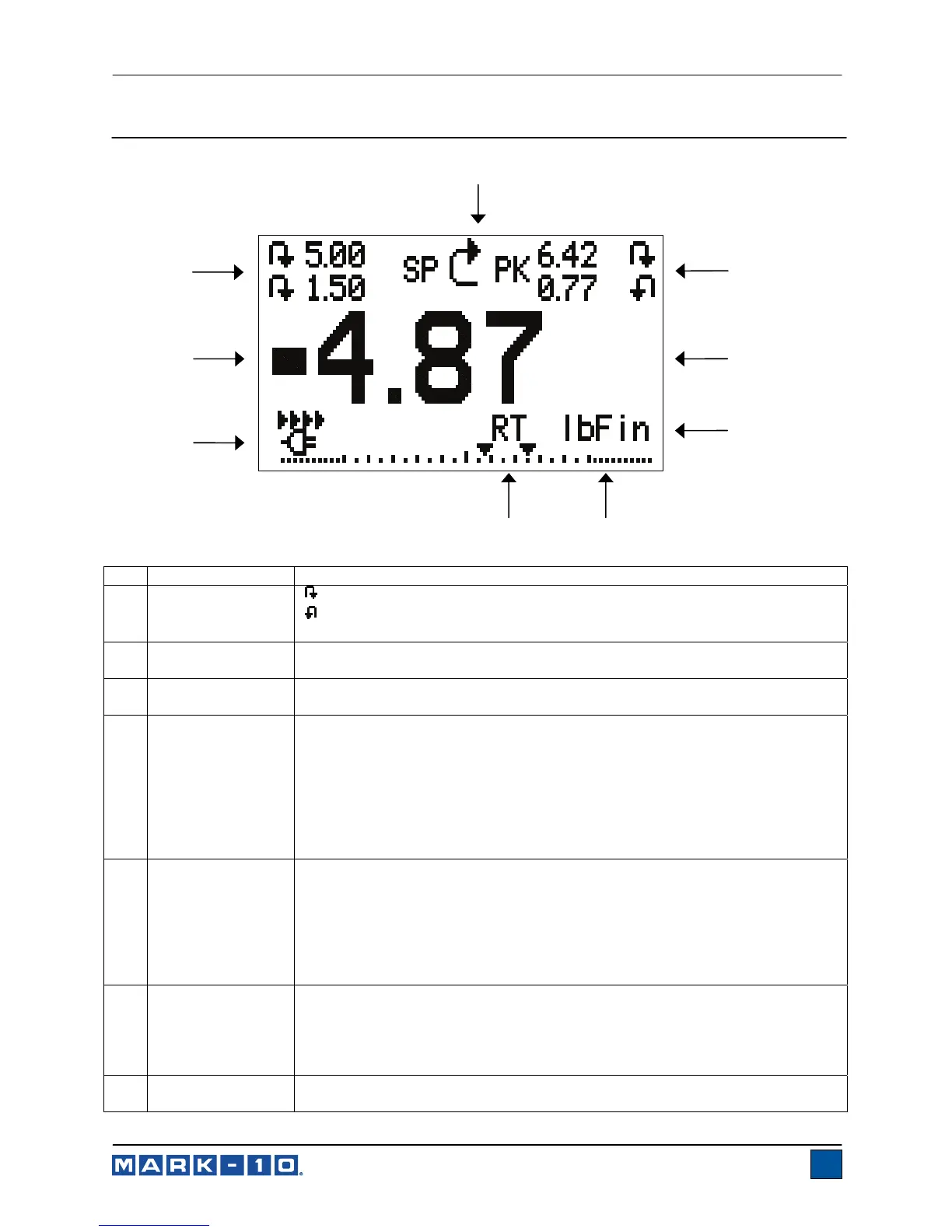

4.1 Home Screen
direction
– indicates clockwise direction
– indicates counter-clockwise direction
These indicators are used throughout the display and menu.
The maximum measured clockwise and counter-clockwise readings. These
readings are reset by pressing ZERO or by powering the gauge off and on.
The current displayed load reading. See Operating Modes section for
details.
Analog indicator to help identify when an overload condition is imminent. The
bar increases either to the right or to the left from the midpoint of the graph.
Increasing to the right indicates clockwise load, increasing to the left indicates
counter-clockwise load. If set points are enabled, triangular markers are
displayed for visual convenience. This indicator reflects the actual load, which
may not correspond to the primary reading (depends on operating mode).
The ZERO key does not reset the load bar. See Operating Modes section for
The current measurement unit. Abbreviations are as follows:
lbFin – Pound-inch
ozFin – Ounce-inch
kgFmm – Kilogram-millimeter
Ncm – Newton-centimeter
Note: not all sensor models display all the above units. Refer to the capacity /
resolution table for details.
The current measurement mode. Abbreviations are as follows:
RT – Real Time
PCW – Peak Clockwise
PCCW – Peak Counter-clockwise
See Operating Modes section for details about each of these modes
